InfineonDatasheet (PDF)

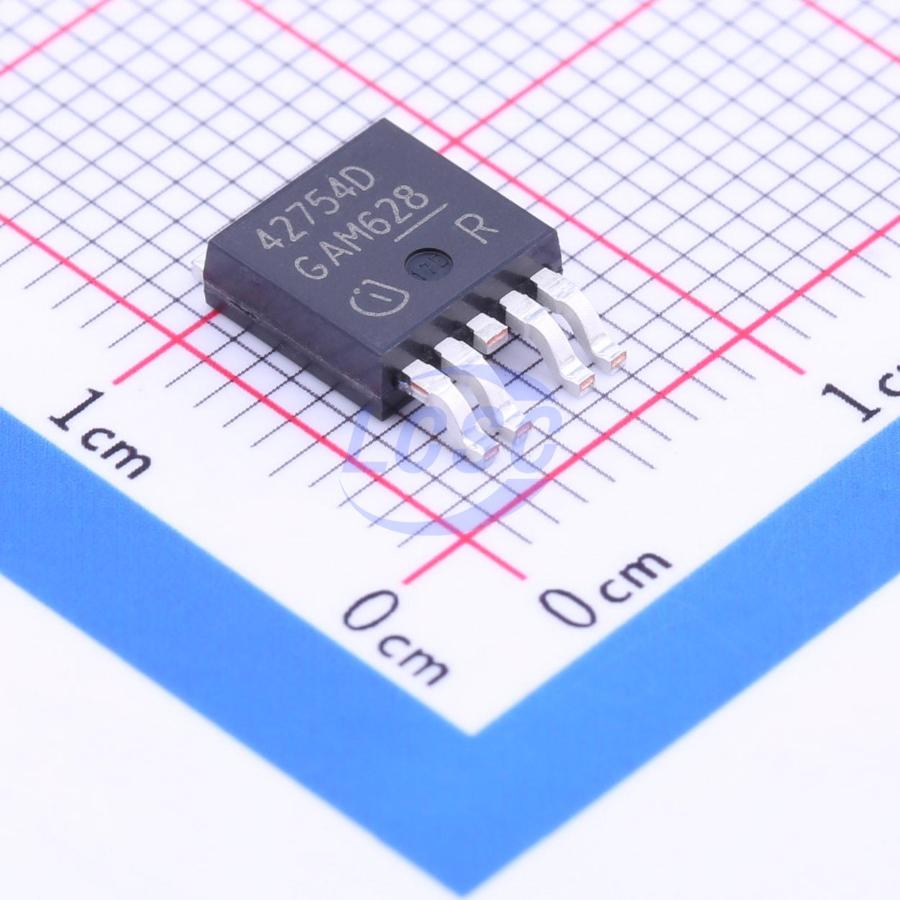

TLE42754D
5V Positive Fixed TO-252-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-4RoHSActive
Low Dropout Linear Fixed Voltage Regulator
- Manufacturer
- Infineon
- Manufacturer part #
- TLE42754D
- Store part #
- C90364
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,507 in stock
#C90364
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.83 | ₹92.83 |
| 10+ | ₹74.83 | ₹748.30 |
| 30+ | ₹65.82 | ₹1,974.60 |
| 100+ | ₹56.82 | ₹5,682.00 |
| 500+ | ₹51.68 | ₹25,840.00 |
| 1,000+ | ₹48.88 | ₹48,880.00 |
1 × ₹92.83
₹92.83
excl. GST
₹109.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLE42754D
₹92.83 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 150uA
- Output Configuration
- Positive
- Output Current
- 450mA
- Operating Voltage
- 42V
- Features
- Reset function;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection;Short Circuit Protection;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.25 g
Overview
The TLE42754 is a monolithic integrated low-dropout voltage regulator in a 5-pin TO-package, especially designed for automotive applications. An input voltage up to 42 V is regulated to an output voltage of 5.0 V. The component is able to drive loads up to 450 mA. It is short-circuit proof by the implemented current limitation and has an integrated overtemperature shutdown. A reset signal is generated for an output voltage VQ,n of typically 4.65 V. The power-on reset delay time can be programmed by the external delay capacitor.
Key features
- Output Voltage 5 V ±2%
- Ouput Current up to 450 mA
- Very low Current Consumption
- Power-on and Undervoltage Reset with Programmable Delay Time
- Reset Low Down to VQ = 1 V
- Very Low Dropout Voltage
- Output Current Limitation
- Reverse Polarity Protection
- Overtemperature Protection
- Suitable for Use in Automotive Electronics
- Wide Temperature Range from -40 °C up to 150 °C
- Input Voltage Range from -42 V to 45 V
- Green Product (RoHS compliant)
- AEC Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE4275QKVURQ1#C781809TI · TO-252-4 | TI | TO-252-4 | 4,855 | ₹146.81 · 4,855 in stock | View |
 | TLE4270-2D#C539701Infineon · TO-252-4 | Infineon | TO-252-4 | 287 | ₹341.12 · 287 in stock | View |
 | TLS850C2TEV50ATMA1#C3745204Infineon · TO-252-4 | Infineon | TO-252-4 | 1 | ₹385.61 · 1 in stock | View |
 | TPS7B8650QKVURQ1#C3744720TI · TO-252-4 | TI | TO-252-4 | 20 | ₹203.82 · 20 in stock | View |
| TPS7B8750QKVURQ1#C2870131TI · TO-252-4 | TI | TO-252-4 | 23 | ₹295.77 · 23 in stock | View | |
