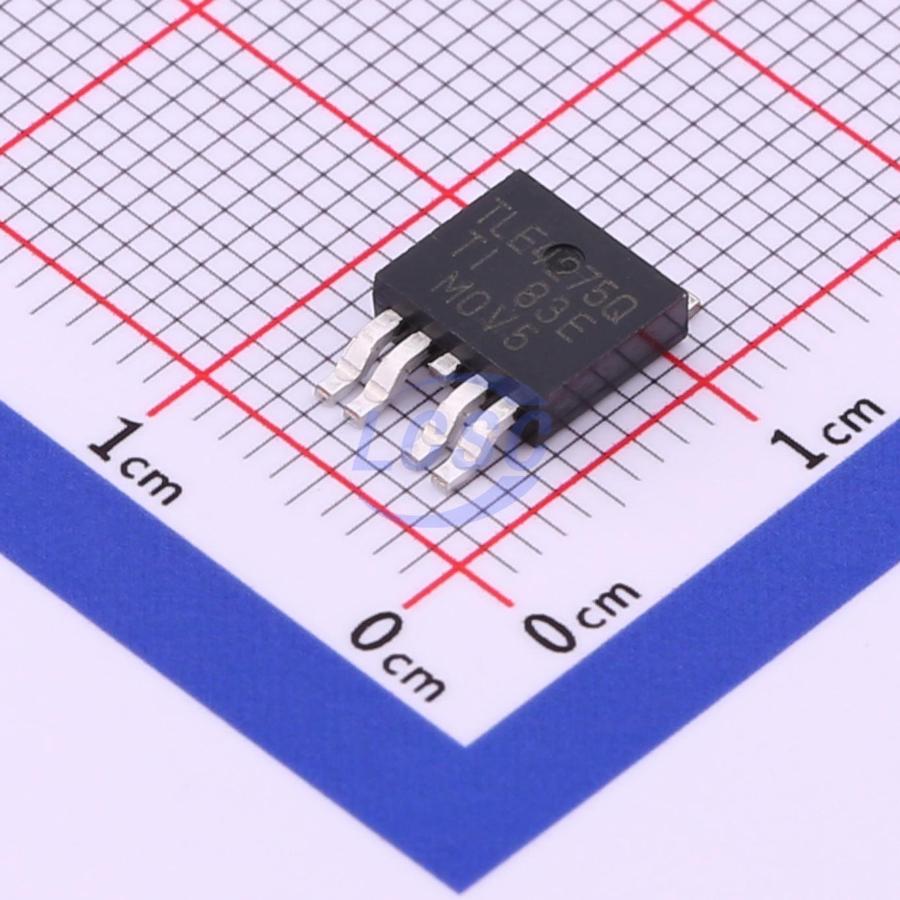

TLE4275QKVURQ1
5V Positive Fixed TO-252-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-4ROHS3 CompliantActive
Automotive 450mA, battery-operated (42V), low-dropout regulator with reset delay functionality
- Manufacturer
- TI
- Manufacturer part #
- TLE4275QKVURQ1
- Store part #
- C781809
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,825 in stock
#C781809
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.81 | ₹146.81 |
| 10+ | ₹120.94 | ₹1,209.40 |
| 30+ | ₹106.79 | ₹3,203.70 |
| 100+ | ₹90.92 | ₹9,092.00 |
| 500+ | ₹83.75 | ₹41,875.00 |
| 1,000+ | ₹80.48 | ₹80,480.00 |
1 × ₹146.81
₹146.81
excl. GST
₹173.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLE4275QKVURQ1
₹146.81 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 150uA
- Output Configuration
- Positive
- Output Current
- 450mA
- Operating Voltage
- 42V
- Features
- Reset function;Short Circuit Protection;Thermal shutdown;Built-in soft-start;Reverse polarity voltage protection;Over Current Protection;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.413 g
Overview
The TLE4275-Q1 is a monolithic integrated lowdropout voltage regulator offered in a 5-pin TO package. The device regulates an input voltage up to 45 V to VOUT = 5 V (typical). The device can drive loads up to 450 mA and is short-circuit proof. At overtemperature, the incorporated temperature protection turns off the TLE4275-Q1. The device generates a reset signal for an output voltage, VOUT,rt, of 4.65 V (typical). By the use of an external delay capacitor, one can program the reset delay time.
Applications
- Cluster
- Body Control Modules
- Heating Ventilation and Air Conditioning (HVAC)
Key features
- Qualified for Automotive Applications
- Output Voltage 5 V ±2%
- Very Low Current Consumption
- Power-On and Undervoltage Reset
- Reset Low-Level Output Voltage <1 V
- Very Low Dropout Voltage
- Short-Circuit Proof
- Reverse-Polarity Proof
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV4275ADT50RKG#C709694onsemi · DPAK-5 | onsemi | DPAK-5 | 1,166 | ₹107.76 · 1,166 in stock | View |
 | TLE42754D#C90364Infineon · TO-252-4 | Infineon | TO-252-4 | 6,505 | ₹92.83 · 6,505 in stock | View |
 | TLE4270-2D#C539701Infineon · TO-252-4 | Infineon | TO-252-4 | 287 | ₹341.12 · 287 in stock | View |
 | TLS850C2TEV50ATMA1#C3745204Infineon · TO-252-4 | Infineon | TO-252-4 | 1 | ₹385.61 · 1 in stock | View |
 | TPS7B8650QKVURQ1#C3744720TI · TO-252-4 | TI | TO-252-4 | 20 | ₹203.82 · 20 in stock | View |
