InfineonDatasheet (PDF)

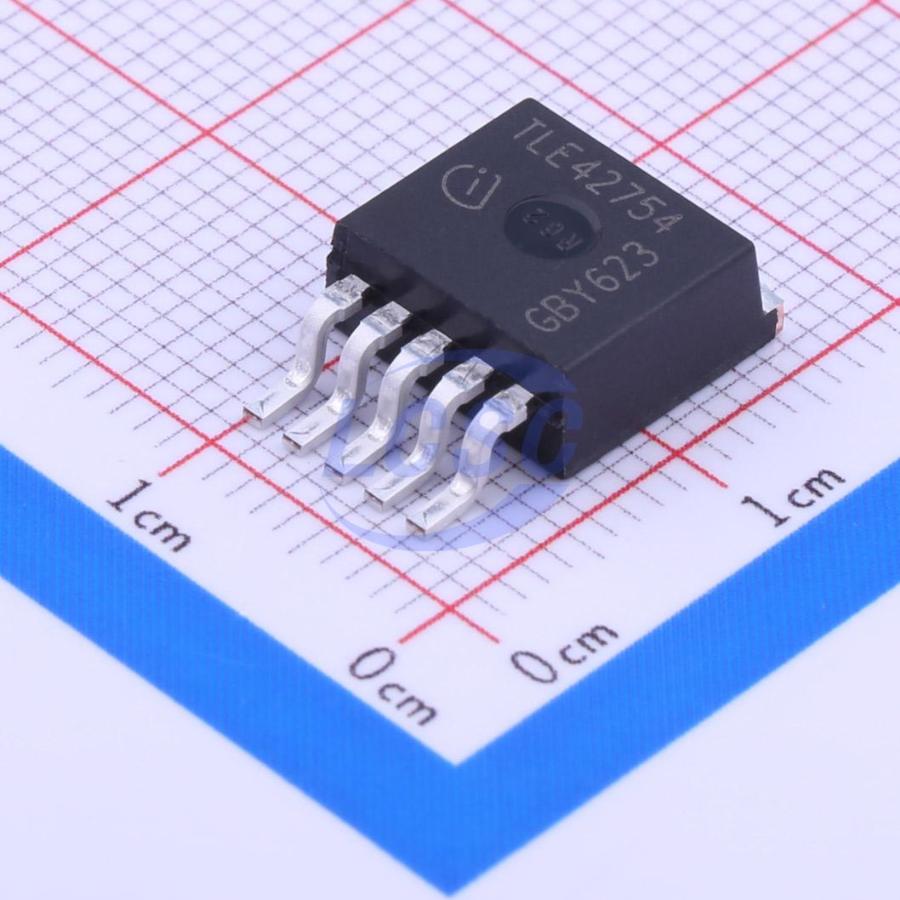

TLE42754G
5V Positive Fixed TO-263-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-5ROHS3 CompliantActive
Low Dropout Linear Fixed Voltage Regulator
- Manufacturer
- Infineon
- Manufacturer part #
- TLE42754G
- Store part #
- C80427
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,153 in stock
#C80427
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.45 | ₹153.45 |
| 10+ | ₹123.07 | ₹1,230.70 |
| 30+ | ₹107.88 | ₹3,236.40 |
| 100+ | ₹92.69 | ₹9,269.00 |
| 500+ | ₹83.57 | ₹41,785.00 |
| 1,000+ | ₹79.01 | ₹79,010.00 |
1 × ₹153.45
₹153.45
excl. GST
₹181.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TLE42754G
₹153.45 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 150uA
- Output Configuration
- Positive
- Output Current
- 450mA
- Operating Voltage
- 42V
- Features
- Reset function;Over Current Protection;Reverse polarity voltage protection;Thermal shutdown;Short Circuit Protection;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.908 g
Overview
The TLE42754 is a monolithic integrated low-dropout voltage regulator in a 5-pin TO-package, especially designed for automotive applications. An input voltage up to 42 V is regulated to an output voltage of 5.0 V. The component is able to drive loads up to 450 mA. It is short-circuit proof by the implemented current limitation and has an integrated overtemperature shutdown. A reset signal is generated for an output voltage VQ,n of typically 4.65 V. The power-on reset delay time can be programmed by the external delay capacitor.
Key features
- Output Voltage 5 V ±2%
- Ouput Current up to 450 mA
- Very low Current Consumption
- Power-on and Undervoltage Reset with Programmable Delay Time
- Reset Low Down to VQ = 1 V
- Very Low Dropout Voltage
- Output Current Limitation
- Reverse Polarity Protection
- Overtemperature Protection
- Suitable for Use in Automotive Electronics
- Wide Temperature Range from -40 °C up to 150 °C
- Input Voltage Range from -42 V to 45 V
- Green Product (RoHS compliant)
- AEC Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE4275QKTTRQ1#C22448182TI · DDPAK-5(TO-263-5) | TI | DDPAK-5(TO-263-5) | 14 | ₹276.27 · 14 in stock | View |
 | NCV4275CDS50R4G#C603932onsemi · TO-263-5 | onsemi | TO-263-5 | 574 | ₹226.66 · 574 in stock | View |
 | NCV4290DS50R4G#C898763onsemi · D2PAK-5 | onsemi | D2PAK-5 | 17 | ₹205.94 · 17 in stock | View |
 | NCV4275ADS50R4G#C54502onsemi · D2PAK-5 | onsemi | D2PAK-5 | 157 | ₹221.51 · 157 in stock | View |
| TLE4275S/TR#C7432085HGSEMI · TO-263-5 | HGSEMI | TO-263-5 | 475 | ₹88.39 · 475 in stock | View | |
