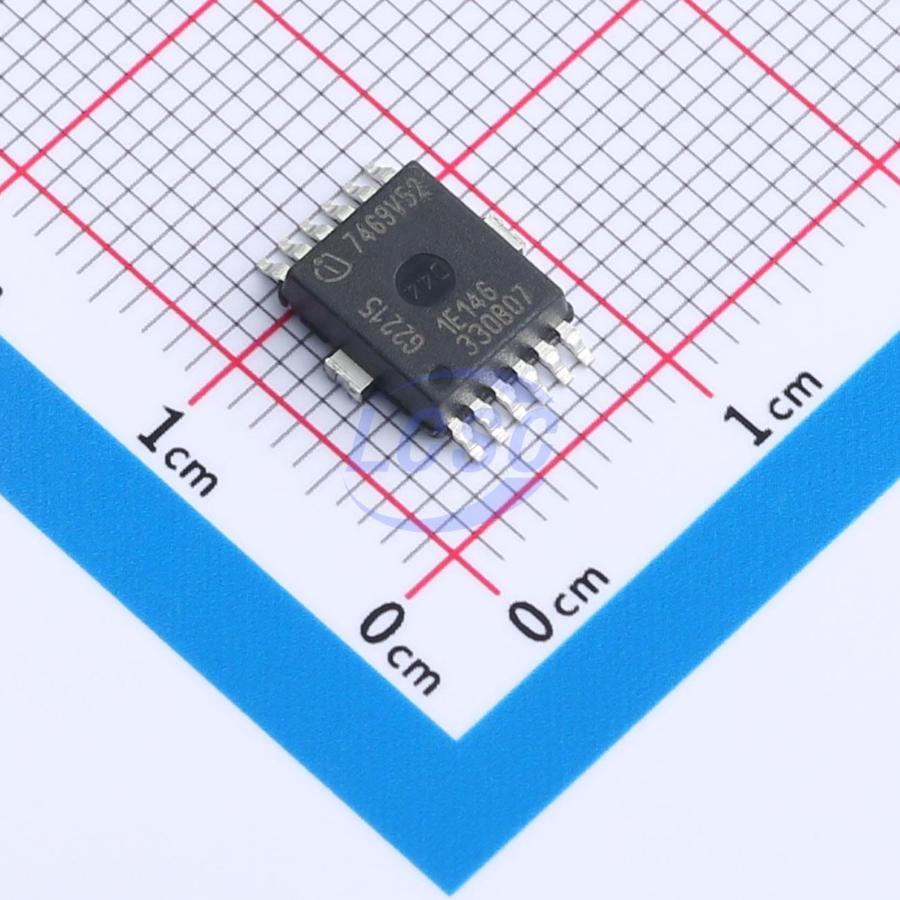

TLE7469G V52

The TLE 7469 is a monolithic integrated voltage regulator with two voltage outputs specially designed to supply microcontrollers with dual supply voltage: 2.6 V or 3.3 V core and 5 V I/O voltage like the Infineon XC164 and XC161. The voltage regulator features an integrated reset circuitry which monitors the 2.6 V/ 3.3 V supply voltage. At power on the reset checks both supply voltages and performs the power-on reset with an adjustable delay time. The voltage difference is kept in the range -0.5 V < (VO1 - VO2) < 3.0 V even during power-on and power-down time enabling save μC operation without external clamping. Using the integrated early warning comparator an external voltage can be supervised. An integrated output sink current circuitry keeps the voltage at the Q1 pin below 5.5 V even when reverse currents are applied. Thus connected devices are protected from overvoltage damage. The regulator can be shut down via the Inhibit input causing the current consumption to drop below 9 μA. The TLE 7469 is designed for use under the severe conditions of automotive applications, and is therefore equipped with protection functions against overload, short circuit and overtemperature. It operates in the wide junction temperature range from -40 °C to 150 °C and offers the low quiescent current consumption required for body applications.

Key features

• Dual output
• 5 V (±2%), 215mA and 2.6 V (±4%), 200mA or 5 V (±2%), 215mA and 3.3 V (±3%), 200mA
• Ultra low quiescent current consumption <55 μA
• Inhibit function
• Very low dropout voltage
• Reset with power-on delay
• Early Warning comparator
• Window watchdog
• Power sequencing for dual voltage μC
• Output protected against short circuit
• Wide operation range: up to 45 V
• Wide temperature range: -40 °C to 150 °C
• Overtemperature protection
• Overload protection
• Green Product (RoHS compliant)
• AEC Qualified
