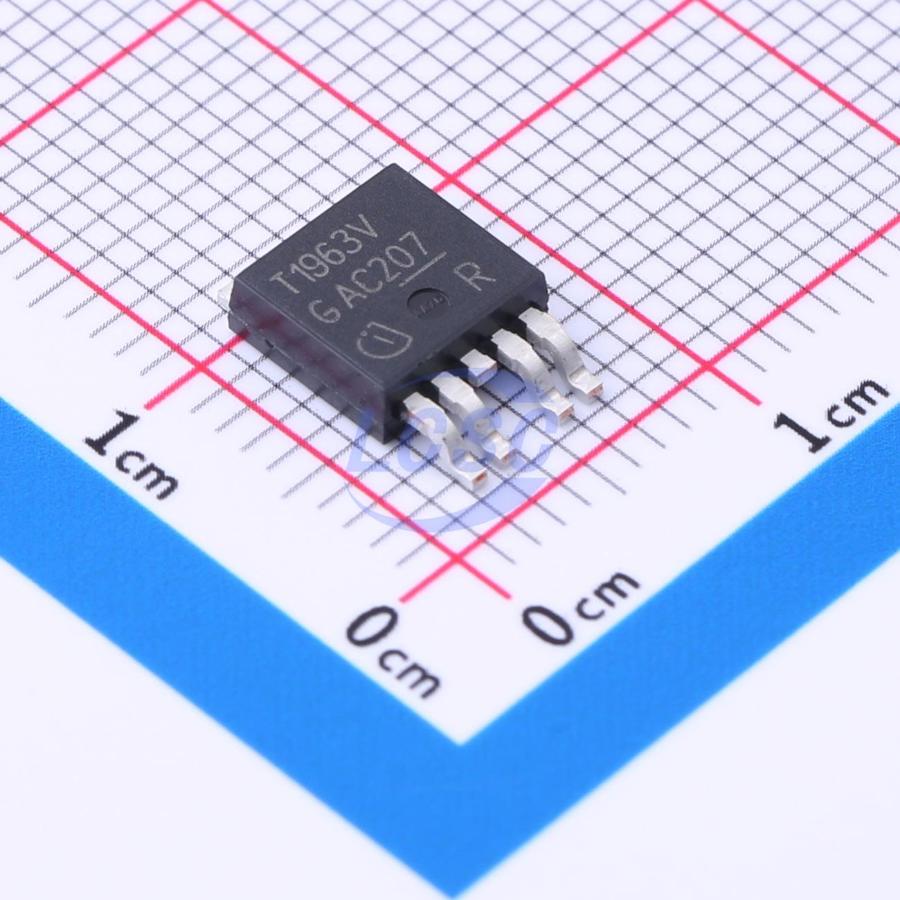

TLF1963TEATMA1

TLF1963 is a low dropout voltage regulator available in PG-TO263-5 and PG-TO252-5 SMD package. The IC regulates an input voltage V parallel in the range of 2.5 V < V input < 20 V to an adjustable output voltage of 1.21 V < V Q,nom < V input - V dropout. The device is capable to supply loads up to 1.5 A. The regulator can be enabled and disabled via the Enable input. The integrated output current limitation and the overtemperature shutdown will protect the device against failures like output short circuit to GND, overcurrent and overtemperature. The TLF1963 provides the ideal solution for systems requiring several supply voltages. With its adjust feature the regulator can provide all supply voltages between 1.21 V and the available input voltage, this offers a high flexibility to the system designer.

Key features

• Adjustable Output Voltage
• Output Voltage Tolerance at small loads of ±1.5%
• Output Current Capability up to 1.5 A
• Very Low Dropout Voltage of 340 mV
• Extended Operating Range Starting at 1.7 V
• Low Noise of typ. 40 μV_RMS (10 Hz to 100 kHz)
• Small Output Capacitor for Stability 10 μF
• Suitable for Ceramic Output Capacitors
• Enable Functionality
• Overtemperature Shutdown
• Reverse Polarity Protection
• Output Current Limitation
• Wide Temperature Range From -40 ℃ up to 150 ℃
• Suitable for use in automotive electronics as Post Regulator
• Green Product (RoHS compliant)
• AEC Qualified
