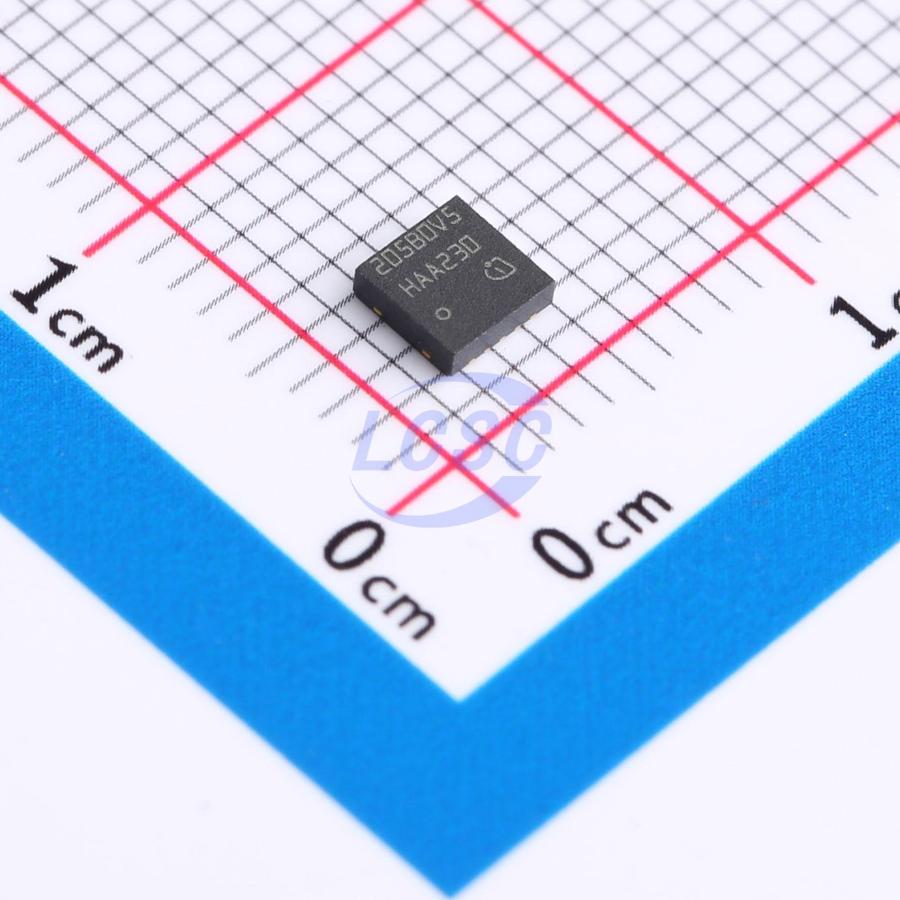

InfineonDatasheet (PDF)
TLS205B0LD V50
5V Positive Fixed TSON-10-EP(3.3x3.3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSON-10-EP(3.3x3.3)ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- TLS205B0LD V50
- Store part #
- C540257
- Package / case
- TSON-10-EP(3.3x3.3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C540257
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹165.89 | ₹165.89 |
| 10+ | ₹162.12 | ₹1,621.20 |
| 30+ | ₹159.82 | ₹4,794.60 |
| 100+ | ₹149.76 | ₹14,976.00 |
1 × ₹165.89
₹165.89
excl. GST
₹195.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TLS205B0LD V50
₹165.89 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Features
- Enable control;Noise bypass terminal;Reverse polarity voltage protection;Reverse-polarity current protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.064 g
Overview
The TLS205B0 V50 is a micropower, low noise, low dropout voltage 5 V regulator. The device is capable of supplying an output current of 500 mA with a dropout voltage of 350 mV. Designed for use in battery-powered systems, the low quiescent current of 30 μA makes it an ideal choice.
Key features
- Low Noise down to 42 μV_RMS (BW = 10 Hz to 100 kHz)
- 500 mA Current Capability
- Low Quiescent Current: 30 μA
- Wide Input Voltage Range up to 20 V
- Internal circuitry working down to 2.3 V
- 2.5% Output Voltage Accuracy (over full temperature and load range)
- Low Dropout Voltage: 350 mV
- Very low Shutdown Current: <1 μA
- No Protection Diodes needed
- Fixed Output Voltage: 5.0 V
- Stable with ≥3.3 μF Output Capacitor
- Stable with Aluminium, Tantalum or Ceramic Output Capacitors
- Reverse Polarity Protection
- No Reverse Current
- Overcurrent and Overtemperature Protected
- PG-DSO-8 Exposed Pad and PG-TSON-10 Exposed Pad Package
- Suitable for use in Automotive Electronics as Post Regulator
- Green Product (RoHS compliant)
- AEC Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IFX1763LD V50#C536008Infineon · TSON-10-EP(3.3x3.3) | Infineon | TSON-10-EP(3.3x3.3) | On request | ₹145.60 · 0 in stock | View | |
