TIDatasheet (PDF)

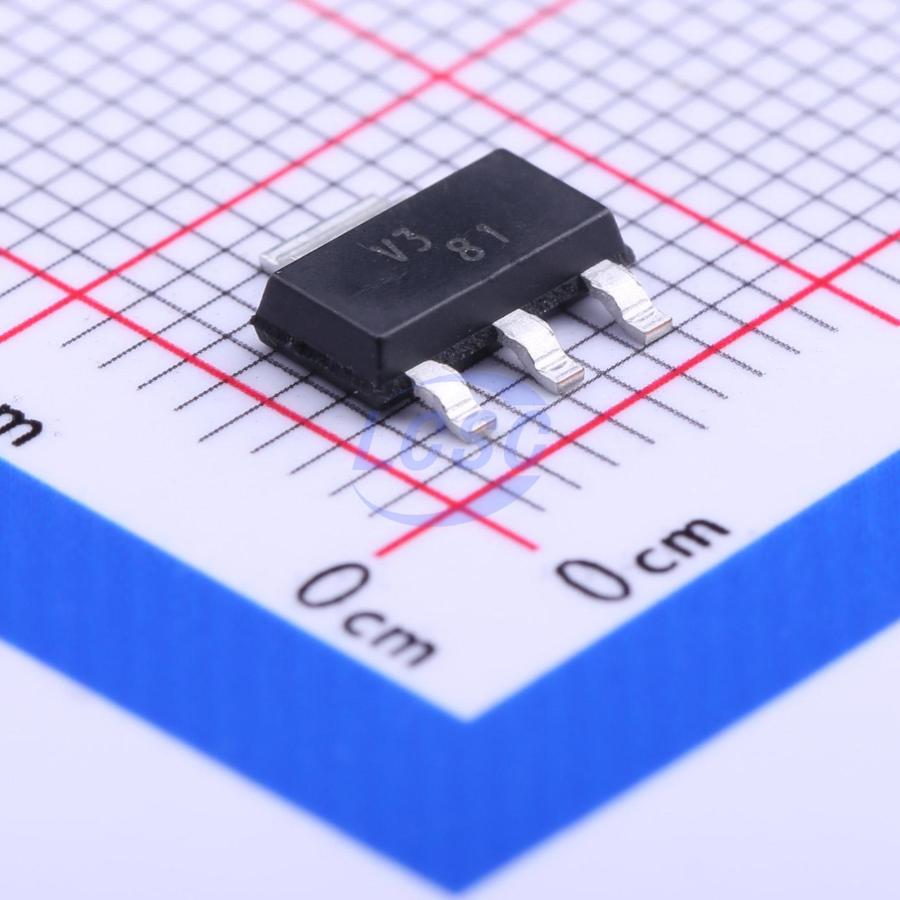

TLV1117-33CDCYR
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- TLV1117-33CDCYR
- Store part #
- C91728
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,815 in stock
#C91728
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.09 | ₹180.45 |
| 50+ | ₹28.14 | ₹1,407.00 |
| 150+ | ₹24.73 | ₹3,709.50 |
| 500+ | ₹19.30 | ₹9,650.00 |
| 2,500+ | ₹17.41 | ₹43,525.00 |
| 5,000+ | ₹16.27 | ₹81,350.00 |
5 × ₹36.09
₹180.45
excl. GST
₹212.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV1117-33CDCYR
₹180.45 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.105 g
Overview
The TLV1117 device is a positive low-dropout voltage regulator designed to provide up to 800 mA of output current. The device is available in 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable-output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents.
Applications
- Electronic Points of Sale
- Medical, Health, and Fitness Applications
- Printers
- Appliances and White Goods
- TV Set-Top Boxes
Key features
- 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and Adjustable-Output Voltage Options
- Output Current of 800 mA
- Specified Dropout Voltage at Multiple Current Levels
- 0.2% Line Regulation Maximum
- 0.4% Load Regulation Maximum
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV1117-33CDCY#C354504TI · SOT-223-4 | TI | SOT-223-4 | 247 | ₹58.44 · 247 in stock | View |
 | TLV1117-33CDCYG3#C3751817TI · SOT-223-4 | TI | SOT-223-4 | 37 | ₹141.71 · 37 in stock | View |
 | TLV1117-33IDCY#C2877971TI · SOT-223-4 | TI | SOT-223-4 | 34 | ₹71.12 · 34 in stock | View |
 | AMS1117-3.3#C917183JSMSEMI · SOT-223-3 | JSMSEMI | SOT-223-3 | 60,890 | ₹7.91 · 60,890 in stock | View |
 | AMS1117-3.3#C18164485GR · SOT-223 | GR | SOT-223 | 49,520 | ₹5.27 · 49,520 in stock | View |
