TIDatasheet (PDF)

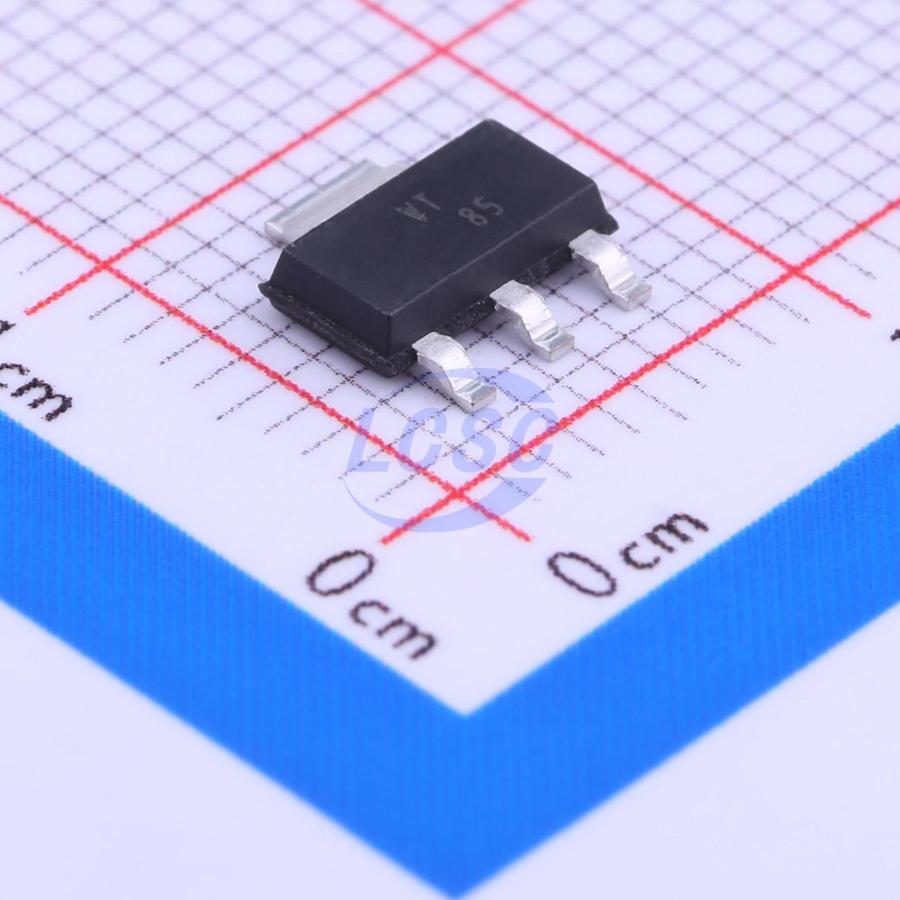

TLV1117-50CDCYR
5V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- TLV1117-50CDCYR
- Store part #
- C81459
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,865 in stock
#C81459
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.18 | ₹65.18 |
| 10+ | ₹51.93 | ₹519.30 |
| 30+ | ₹46.28 | ₹1,388.40 |
| 100+ | ₹32.81 | ₹3,281.00 |
| 500+ | ₹29.56 | ₹14,780.00 |
| 1,000+ | ₹27.81 | ₹27,810.00 |
1 × ₹65.18
₹65.18
excl. GST
₹76.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV1117-50CDCYR
₹65.18 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
The TLV1117 device is a positive low-dropout voltage regulator designed to provide up to 800 mA of output current. The device is available in 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable-output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents.
Applications
- Electronic Points of Sale
- Medical, Health, and Fitness Applications
- Printers
- Appliances and White Goods
- TV Set-Top Boxes
Key features
- 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and Adjustable-Output Voltage Options
- Output Current of 800 mA
- Specified Dropout Voltage at Multiple Current Levels
- 0.2% Line Regulation Maximum
- 0.4% Load Regulation Maximum
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TLV1117-50IDCY#C2860180TI · SOT-223-4 | TI | SOT-223-4 | 74 | ₹76.54 · 74 in stock | View | |
 | LD1117AG-50-AA3-D-R#C5160420UTC · SOT-223 | UTC | SOT-223 | 1,550 | ₹10.11 · 1,550 in stock | View |
 | LD1117AG-50-AA3-A-R#C71124UTC · SOT-223 | UTC | SOT-223 | 7,270 | ₹10.33 · 7,270 in stock | View |
 | LM1117MP-5.0/NOPB#C131933TI · SOT-223-3 | TI | SOT-223-3 | 683 | ₹49.55 · 683 in stock | View |
 | LD1117S50TR#C134077ST · SOT-223-3 | ST | SOT-223-3 | 26,120 | ₹25.90 · 26,120 in stock | View |
