TECH PUBLICDatasheet (PDF)

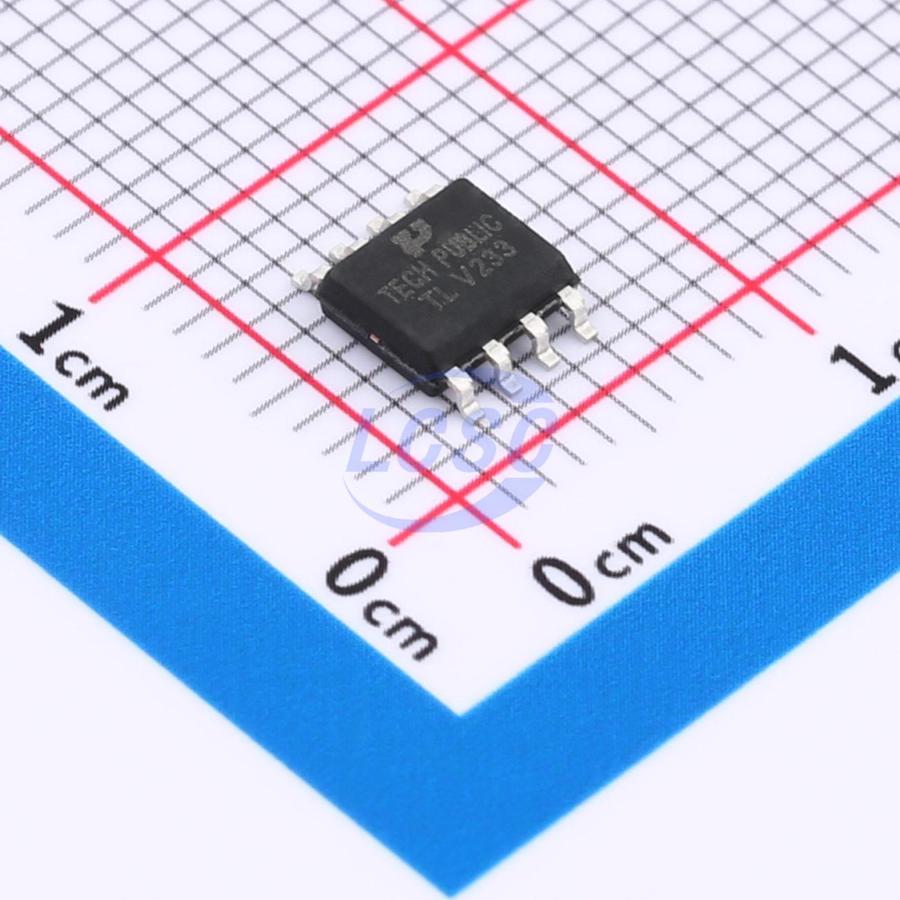

TLV2333IDR-TP
21mA 1uV 0.1V/us 1pA 135dB 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
CMOS Operational Amplifier Zero Drift
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TLV2333IDR-TP
- Store part #
- C41431835
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
122 in stock
#C41431835
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.08 | ₹42.08 |
| 10+ | ₹36.53 | ₹365.30 |
| 30+ | ₹34.19 | ₹1,025.70 |
| 100+ | ₹31.41 | ₹3,141.00 |
| 500+ | ₹30.12 | ₹15,060.00 |
| 1,000+ | ₹29.26 | ₹29,260.00 |
1 × ₹42.08
₹42.08
excl. GST
₹49.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV2333IDR-TP
₹42.08 for 1 + GST
Specifications
- Output Current
- 21mA
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 0.1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -50℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 135dB
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- Built-in compensation;Zero drift / auto-zero
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.186 g
Overview
The TLV2333 of CMOS operational amplifiers use a proprietary auto-calibration technique to simultaneously provide very low offset voltage (±10μV, maximum) and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current (17uA) amplifiers offer high impedance inputs that have a common-mode range 100 mV beyond the rails, and rail-to-rail output that swings within 50 mV of the rails. Single or dual supplies as low as 1.8V (±0.9V) and up to 5.5 V (+2.75 V) can be used. These devices are optimized for low voltage, single-supply operation.
Applications
- Temperature Sensors
- Battery-Powered Instruments
- Smoke/Gas/Environment Sensors
- Medical Equipment
- Portable Instruments and Mobile Device
- Active Filters
- Piezo Electrical Transducer Amplifier
- Sensor Interface
- Handheld Test Equipment
Key features
- General Purpose, Low Cost
- Gain Bandwidth Product: 350KHz
- Low Quiescent Current: 17uA/Amplifier
- 0.01Hz - 10Hz Noise: 1.5μVP-P
- Zero Drift: 0.01μV/°C (Typ)
- Input Bias Current: 20pA
- Unity Gain Stable
- Rail-to-Rail Input and Output
- Single or Dual Supply Operation
- Supply Voltage Range: 1.8V to 5.5V
- Operating Temperature: -50°C to +125°C
- Type Package: SOP-8
