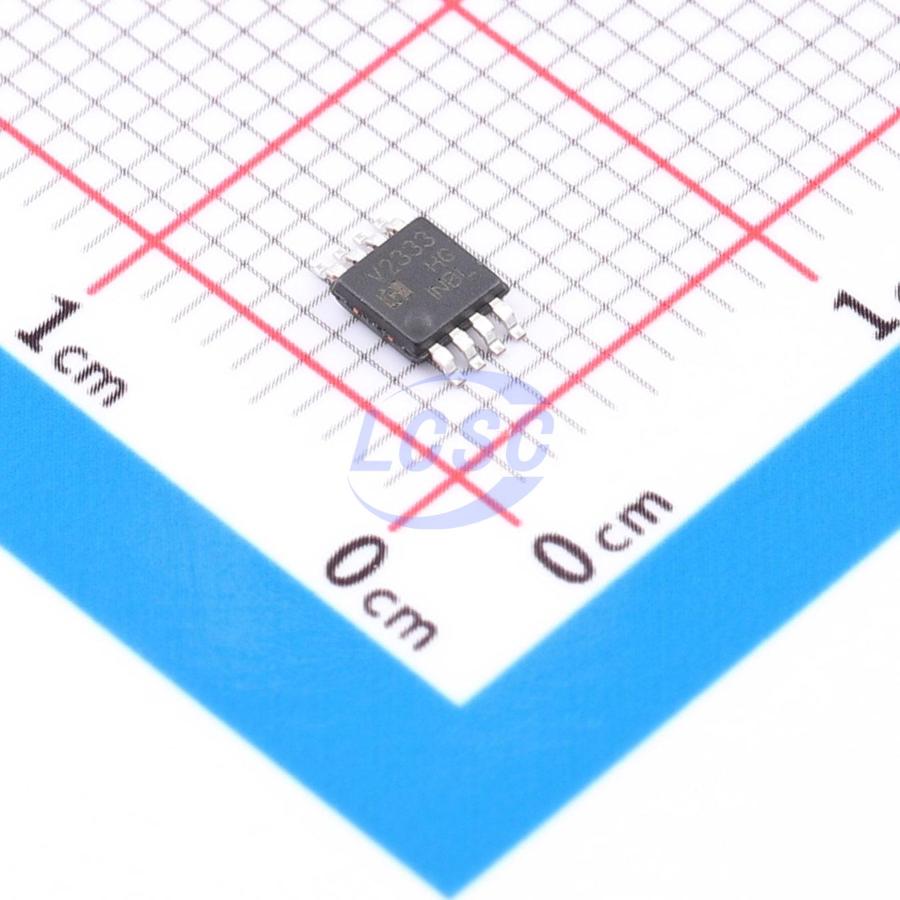

TLV2333MM/TR
5mA 2 15uV 0.16V/us 115dB 70pA 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
2 μV VOS, 0.02 μV/°C, 17 μA, CMOS operational amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- TLV2333MM/TR
- Store part #
- C42387276
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,219 in stock
#C42387276
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹41.16 | ₹41.16 |
| 10+ | ₹35.99 | ₹359.90 |
| 30+ | ₹33.83 | ₹1,014.90 |
| 100+ | ₹31.04 | ₹3,104.00 |
| 500+ | ₹29.74 | ₹14,870.00 |
| 1,000+ | ₹28.88 | ₹28,880.00 |
1 × ₹41.16
₹41.16
excl. GST
₹48.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV2333MM/TR
₹41.16 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 15uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 140pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Ib - Input Bias Current
- 70pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.314 g
Overview
The TLVx333 series CMOS op amps deliver precision performance at a highly competitive price. Part of a zero-drift amplifier family utilizing proprietary auto-calibration technology, these devices feature ultra-low offset voltage (15μV maximum) with near-zero drift across time and temperature, and a quiescent current of only 28μA. With rail-to-rail input and output and virtually flat 1/f noise characteristics, they are an ideal choice for a wide range of applications, simplifying system design. Optimized for low-voltage operation from 1.8V (±0.9V) to 5.5V (±2.75V).
Applications
- Battery-powered instruments
- Medical instrumentation
- Temperature measurement
- Handheld test equipment
- Sensor applications
- Current sensing
- Electronic scales
Key features
- Exceptional price-to-performance ratio
- Low offset voltage: 2μV
- Zero drift: 0.02μV/°C
- Low noise: 1.1μVPP, 0.1Hz to 10Hz
- Quiescent current: 17μA
- Supply voltage: 1.8V to 5.5V
- Rail-to-rail input/output
- Internal EMI filtering
- Compact packages: SOT-23-5, SC70-5
