TIDatasheet (PDF)

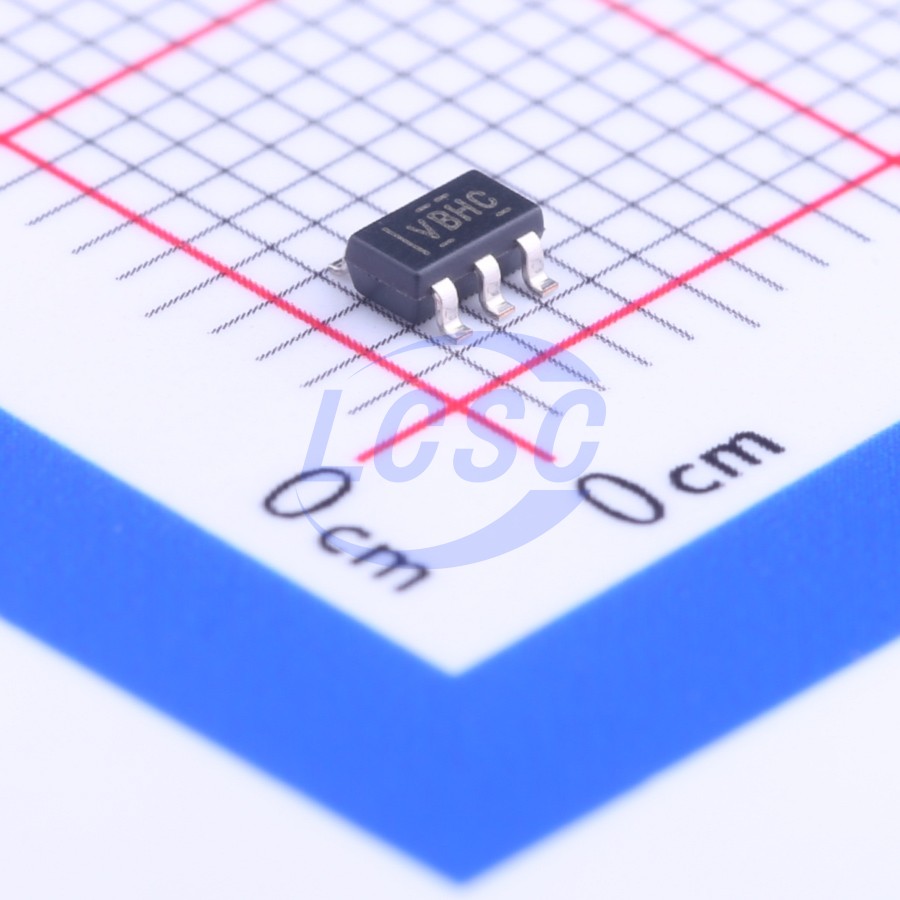

TLV271CDBVR
7mA 1 500uV 2.4V/us 65dB 1pA 3MHz 550uA Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
550-uA/Ch, 3-MHz, Rail-to-Rail Output Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TLV271CDBVR
- Store part #
- C131948
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,174 in stock
#C131948
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.09 | ₹104.09 |
| 10+ | ₹89.41 | ₹894.10 |
| 30+ | ₹79.05 | ₹2,371.50 |
| 100+ | ₹70.62 | ₹7,062.00 |
| 500+ | ₹67.82 | ₹33,910.00 |
| 1,000+ | ₹66.31 | ₹66,310.00 |
1 × ₹104.09
₹104.09
excl. GST
₹122.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV271CDBVR
₹104.09 for 1 + GST
Specifications
- Output Current
- 7mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 2.4V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 3MHz
- Quiescent Current
- 550uA
- Input Voltage Noise Density
- 39nV/√Hz@1kHz
- Dual Supply
- -8V~-1.35V;1.35V~8V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
Operating from 2.7 V to 16 V over the extended industrial temperature range from -40°C to +125°C, the TLV27x is a low power, wide bandwidth operational amplifier (opamp) with rail to rail output. This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x provides 3-MHz bandwidth from only 550 μA. Like the TLC27x, the TLV27x is fully specified for 5-V and ±5-V supplies. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from a variety of rechargeable cells (±8 V supplies down to ±1.35 V). The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLC27x in battery-powered applications.
Applications
- E-Bike
- Power Banks
- Smoke detectors
- Solar Inverters
- Low-Power Motor Controls
- Battery-Powered Instruments
- Building Automation
Key features
- Rail-to-Rail Output
- Wide Bandwidth: 3 MHz
- High Slew Rate: 2.4 V/μs
- Supply Voltage Range: 2.7 V to 16 V
- Supply Current: 550 μA/Channel
- Input Noise Voltage: 39 nV/√Hz
- Input Bias Current: 1 pA
- Specified Temperature Range: Commercial Grade: 0°C to 70°C; Industrial Grade: -40°C to 125°C
- Ultrasmall Packaging:
- 5-Pin SOT-23 (TLV271)
- 8-Pin MSOP (TLV272)
- Ideal Upgrade for TLC72x Family
