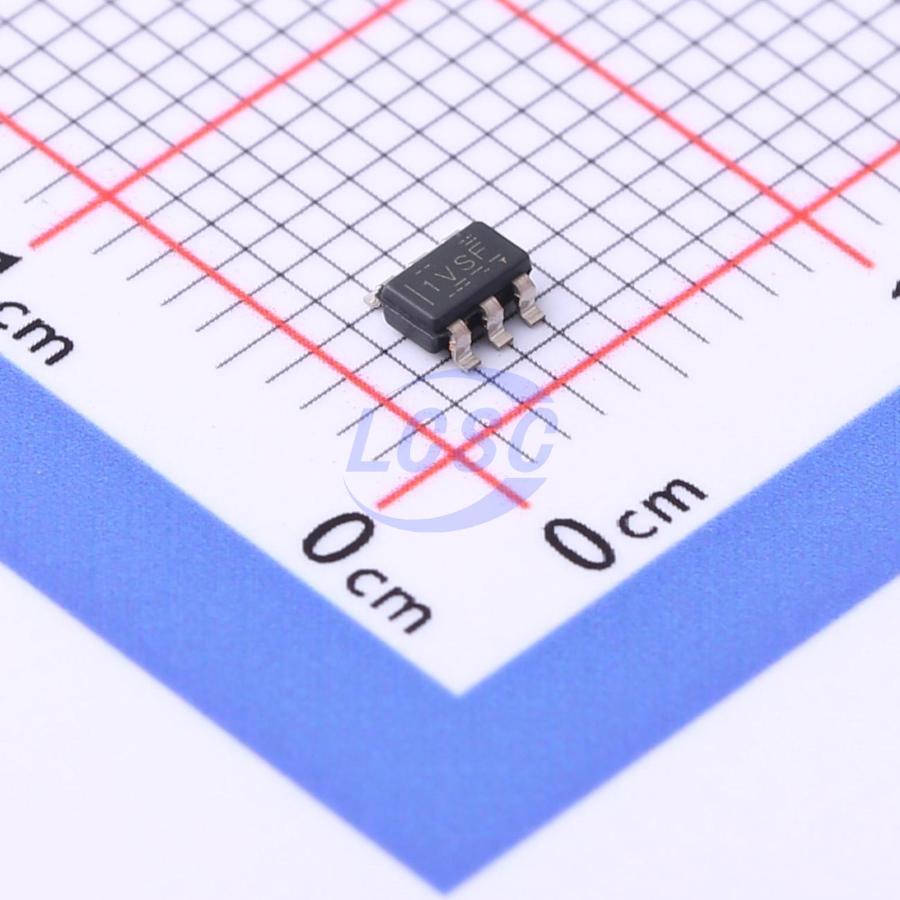

TLV61048DBVR

The TLV61048 is a non-synchronous boost converter that provides a power-supply solution for products powered by a low-voltage super capacitor and a single-cell Li-ion battery. The TLV61048 integrates a power switch with 3.7-A typical current limit to extend the discharge capability of the input source without sacrificing maximal load delivery. The TLV61048 could be configured at 600 kHz for higher efficiency or 1 MHz for smaller inductor and output capacitor. At the light load, the device enters into the PFM operation to achieve higher efficiency. The TLV61048 has built-in 2-ms soft start to minimize the inrush current. The TLV61048 is available in a 2.9-mmx1.6-mm 6-pin SOT-23 package.

Applications

• PLC backup power
• LCD bias supply
• Industrial isolation DC/DC

Key features

• Input voltage 2.65 V to 5.5 V (falling 2.4 V)
• Output voltage up to 14 V
• Integrated low-side FET: 85 mΩ at 3.3 VIN
• 3.7-A (Typical) switch current limit
• Up to 90% Efficiency at 3.3-V Input and 12-V Output
• 600 kHz or 1-MHz Selectable switching frequency
• Internal Compensation
• 1-μA Shutdown current
• ±2.5% Output-voltage accuracy
• PFM operation mode at light load
• Internal 2-ms soft-start time
• Thermal shutdown protection
• 2.9-mm×1.6-mm 6-Pin SOT-23 package
