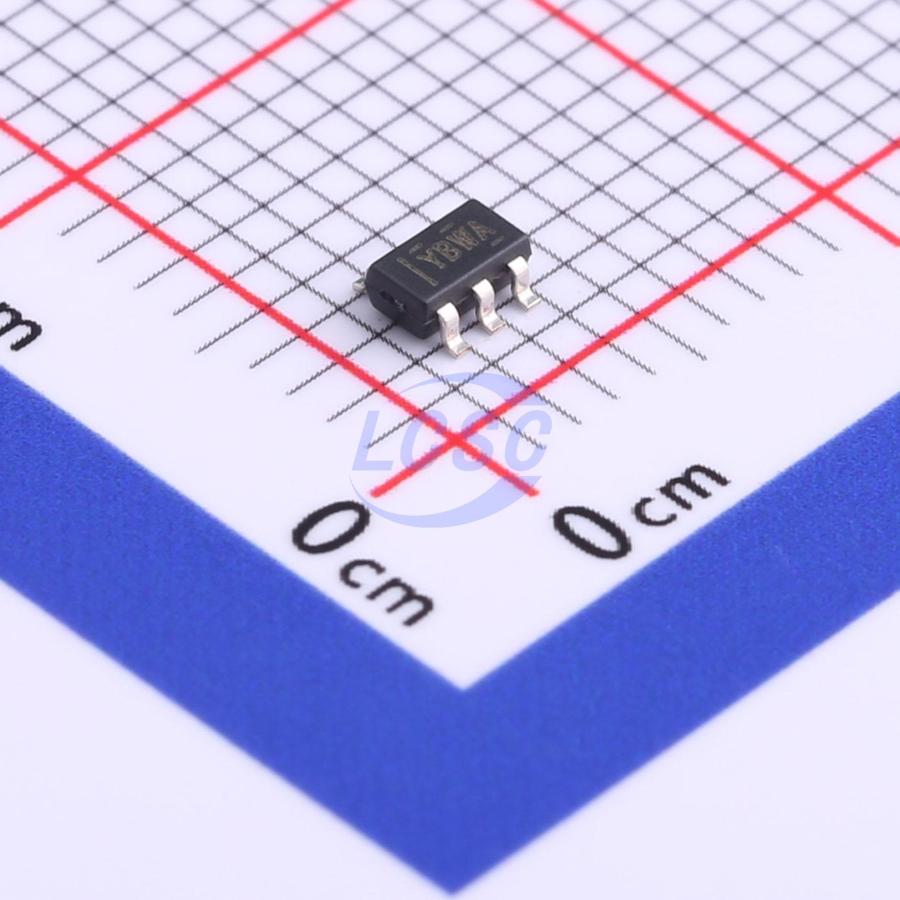

TLV70133DBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
150mA, 24V, ultra-low IQ, low-dropout regulator for providing 3V and 3.3V outputs
- Manufacturer
- TI
- Manufacturer part #
- TLV70133DBVR
- Store part #
- C779345
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,354 in stock
#C779345
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.08 | ₹85.08 |
| 10+ | ₹69.46 | ₹694.60 |
| 30+ | ₹61.64 | ₹1,849.20 |
| 100+ | ₹53.83 | ₹5,383.00 |
| 500+ | ₹49.06 | ₹24,530.00 |
| 1,000+ | ₹46.66 | ₹46,660.00 |
1 × ₹85.08
₹85.08
excl. GST
₹100.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70133DBVR
₹85.08 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3.2uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
The TLV701xx series low-dropout (LDO) regulators are ultra-low quiescent current devices designed for extremely power-sensitive applications. Quiescent current remains constant across the full load current and ambient temperature range. These devices are ideal power management companions for low-power microcontrollers such as the MSP430. The TLV701xx operates over an input voltage range of 2.5V to 24V, making it well suited for both battery-powered systems and industrial applications with large line transients. The TLV701xx is available in a 3-mm × 3-mm SOT23-5 package, which is ideal for cost-effective board manufacturing.
Applications
- Ultra-low-power microprocessor
- Electronic meters, fire alarm/smoke detection systems
- Handheld peripherals
- Industrial/automotive applications
- Remote controllers
- Zigbee networks
- PDA portable, battery-powered instruments
Key features
- Wide input voltage range: 2.5 V to 24 V
- Low 3.2-μA quiescent current
- Ground pin current: 3.4 μA at IOUT = 100 μA
- Stable with any capacitor (>0.47 μF)
- SOT23-5 package
- Operating junction temperature range: -40°C to +125°C
