TIDatasheet (PDF)

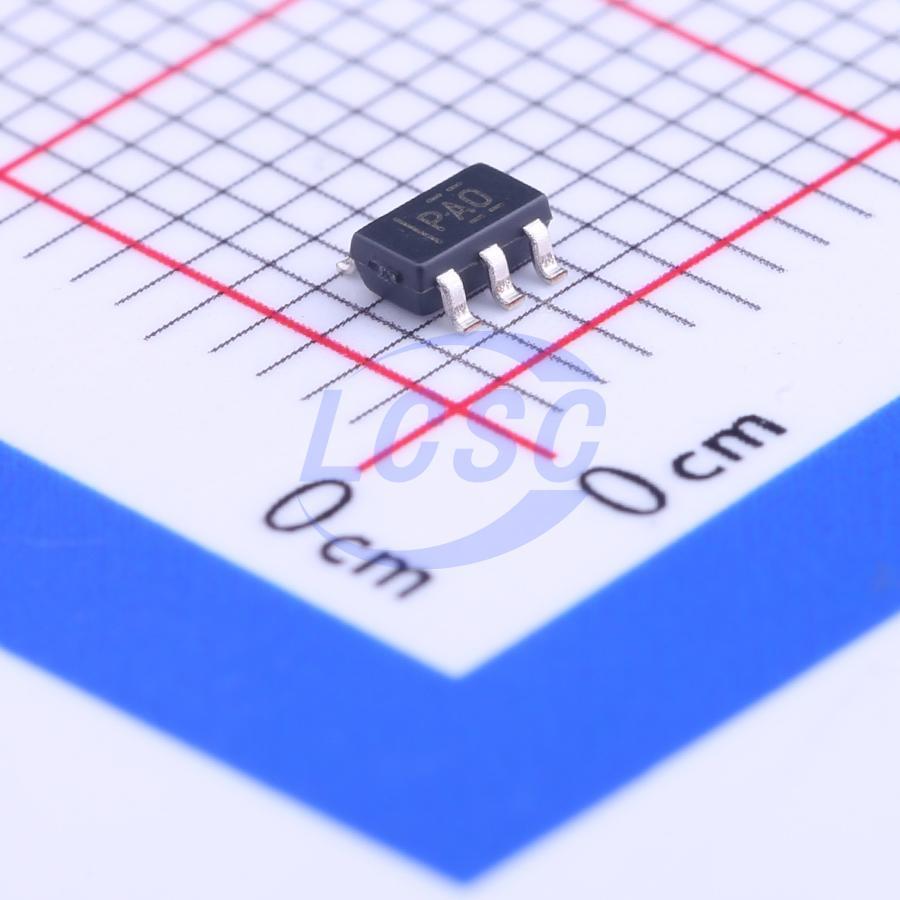

TLV70433DBVR
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, 24V, ultra-low IQ, low-dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- TLV70433DBVR
- Store part #
- C94917
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,14,555 in stock
#C94917
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.20 | ₹76.00 |
| 50+ | ₹12.24 | ₹612.00 |
| 150+ | ₹10.76 | ₹1,614.00 |
| 500+ | ₹9.64 | ₹4,820.00 |
| 3,000+ | ₹8.71 | ₹26,130.00 |
| 6,000+ | ₹8.26 | ₹49,560.00 |
5 × ₹15.20
₹76.00
excl. GST
₹89.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70433DBVR
₹76.00 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Over Current Protection;Short Circuit Protection;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The TLV704 series of low-dropout (LDO) regulators are ultralow quiescent current devices designed for extremely power-sensitive applications. Quiescent current is virtually constant over the complete load current and ambient temperature range. These devices are an ideal power-management attachment to low-power microcontrollers, such as the MSP430. The TLV704 operates over a wide operating input voltage of 2.5 V to 24 V. Thus, the device is an excellent choice for both battery-powered systems as well as industrial applications that undergo large line transients. The TLV704 is available in a 3-mm × 3-mm SOT23-5 package, which is ideal for cost-effective board manufacturing.
Applications
- Ultralow Power Microcontrollers
- E-Meters
- Fire Alarms and Smoke Detector Systems
- Handset Peripherals
- Industrial and Automotive Applications
- Remote Controllers
- Zigbee Networks
- Portable, Battery-Powered Equipment
Key features
- Wide Input Voltage Range: 2.5 V to 24 V
- Low 3.2–μA Quiescent Current
- Ground Pin Current: 3.4 μA at 100-mA IOUT
- Stable With a Low-ESR, 1 μF Typical Output Capacitor
- Operating Junction Temperature: -40°C to 125°C
- Available in SOT23-5 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV70433DBVT#C94776TI · SOT-23-5 | TI | SOT-23-5 | 455 | ₹22.66 · 455 in stock | View |
| TLV70433DBVRM3#C21869455TI · SOT-23-5 | TI | SOT-23-5 | 535 | ₹25.28 · 535 in stock | View | |
 | TLV70133DBVRM3#C22163349TI · SOT-23-5 | TI | SOT-23-5 | 85 | ₹108.17 · 85 in stock | View |
 | TLV70133DBVR#C779345TI · SOT-23-5 | TI | SOT-23-5 | 1,354 | ₹85.08 · 1,354 in stock | View |
 | PJ72AL33SE#C41367952PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 420 | ₹9.16 · 420 in stock | View |
