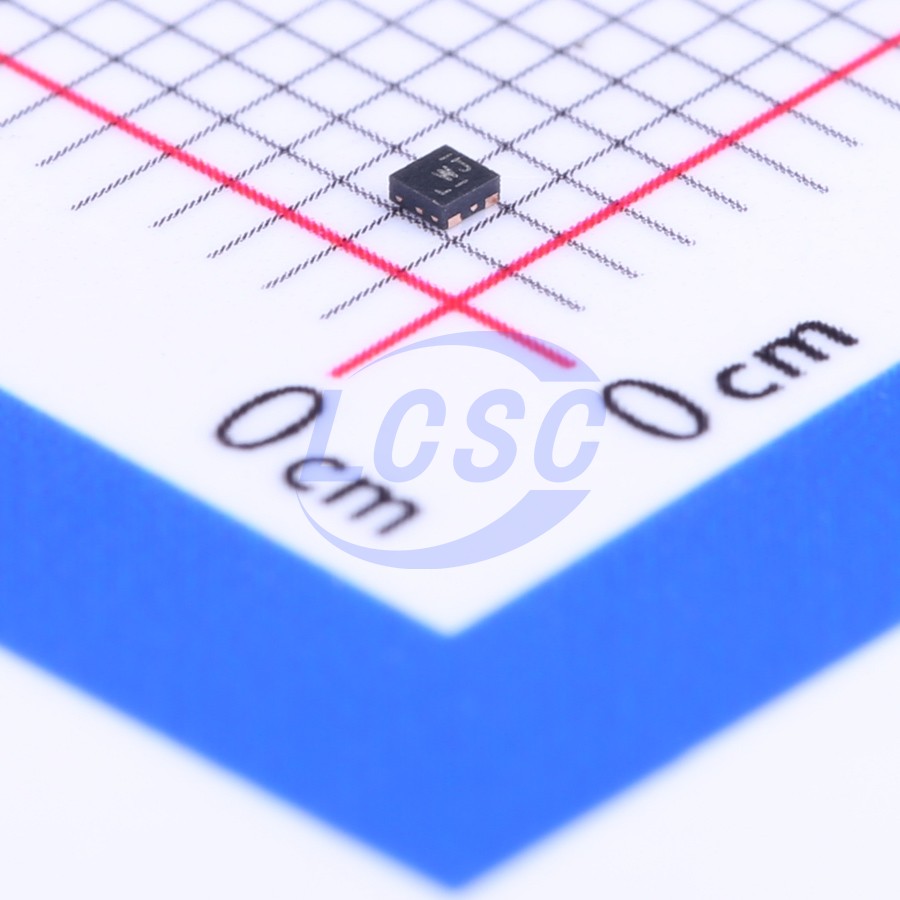

TLV70712PDQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS CompliantActive
200mA, low IQ, low-dropout regulator with enable and active output discharge functionality
- Manufacturer
- TI
- Manufacturer part #
- TLV70712PDQNR
- Store part #
- C133984
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,335 in stock
#C133984
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.18 | ₹90.90 |
| 50+ | ₹14.38 | ₹719.00 |
| 150+ | ₹12.52 | ₹1,878.00 |
| 500+ | ₹10.86 | ₹5,430.00 |
| 3,000+ | ₹10.40 | ₹31,200.00 |
| 6,000+ | ₹10.13 | ₹60,780.00 |
5 × ₹18.18
₹90.90
excl. GST
₹107.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70712PDQNR
₹90.90 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Features
- Enable control;Output discharge;Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
The TLV707 family (TLV707 and TLV707P) LDOs feature low quiescent current and excellent line and load transient performance, making them well-suited for power-sensitive applications. These devices offer a typical accuracy of 0.5%. All versions include thermal shutdown and overcurrent protection for safety. Additionally, these devices remain stable with an effective output capacitance of only 0.1μF. This allows the use of cost-effective capacitors with higher bias voltage and temperature derating. These devices also regulate to rated accuracy under no-load conditions. Furthermore, the TLV707P provides an active pull-down circuit for rapid output discharge. The TLV707 family LDOs are available in a 1mm × 1mm DFN (X2SON) package, making them ideal for handheld applications.
Applications
- Smartphones and wireless earphones
- Gaming and toys
- WLAN and other PC add-in cards
- TV and set-top boxes
- Wearable electronics
Key features
- Typical accuracy: 0.5%
- 200mA output support
- Low IQ: 25μA
- Fixed output voltage range: 0.85V to 5.0V
- High PSRR:
- 70dB at 100Hz
- 50dB at 1MHz
- Stable with 0.1μF low-ESR capacitor
- Thermal shutdown and overcurrent protection
- Package: 1mm × 1mm DQN (X2SON)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6013SD4-12#C47325469Suntek · DFN-4-EP(1x1) | Suntek | DFN-4-EP(1x1) | 220 | ₹13.59 · 220 in stock | View |
 | TPL730F12-FR#C383356813PEAK · DFN-4(1x1) | 3PEAK | DFN-4(1x1) | 215 | ₹20.22 · 215 in stock | View |
 | NCP114AMX120TCG#C179593onsemi · UDFN-4(1x1) | onsemi | UDFN-4(1x1) | 205 | ₹19.32 · 205 in stock | View |
 | WL2836D12-4/TR#C2931315WILLSEMI · DFN1x1-4L | WILLSEMI | DFN1x1-4L | 5,065 | ₹12.22 · 5,065 in stock | View |
 | TLV74012PDQNR#C3744797TI · X2-SON-4(1x1) | TI | X2-SON-4(1x1) | 540 | ₹4.30 · 540 in stock | View |
