TLV70719PDQNR

The TLV707 series (TLV707 and TLV707P) LDO regulators feature low quiescent current and excellent line and load transient performance, making them ideal for power-sensitive applications. These devices offer a typical accuracy of 0.5%. All versions include thermal shutdown and overcurrent protection for safety. Additionally, these devices remain stable with an effective output capacitance of only 0.1μF. This allows the use of cost-effective capacitors with higher bias voltage and temperature derating. These devices also regulate to rated accuracy under no-load conditions. Furthermore, the TLV707P provides an active pull-down circuit for fast output discharge. The TLV707 series LDOs are available in a 1mm × 1mm DQN (X2SON) package, making them suitable for handheld applications.

Applications

• Smartphones and wireless earphones
• Gaming and toys
• WLAN and other PC add-in cards
• TV and set-top boxes
• Wearable electronics

Key features

• Typical accuracy: 0.5%
• 200mA output support
• Low IQ: 25μA
• Fixed output voltage combinations from 0.85V to 5.0V
• High PSRR:
• 70dB at 100Hz
• 50dB at 1MHz
• Stable with 0.1μF ceramic capacitor
• Thermal shutdown and overcurrent protection

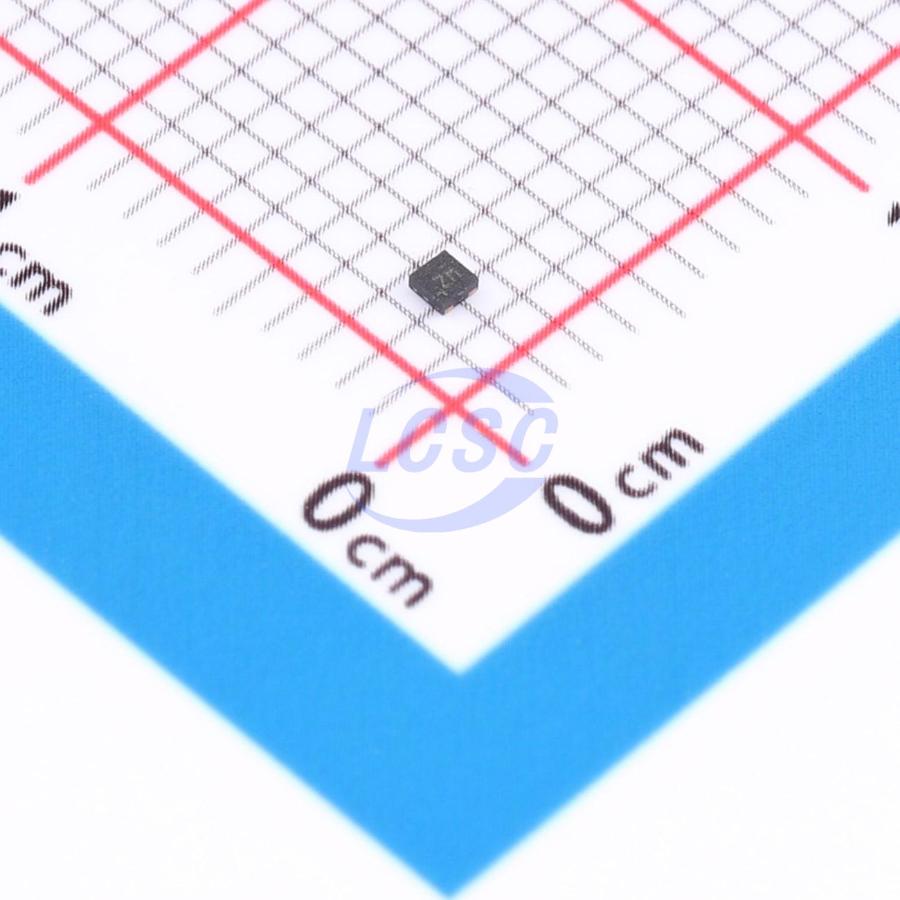

• Package: 1mm × 1mm DQN (X2SON)
