TIDatasheet (PDF)

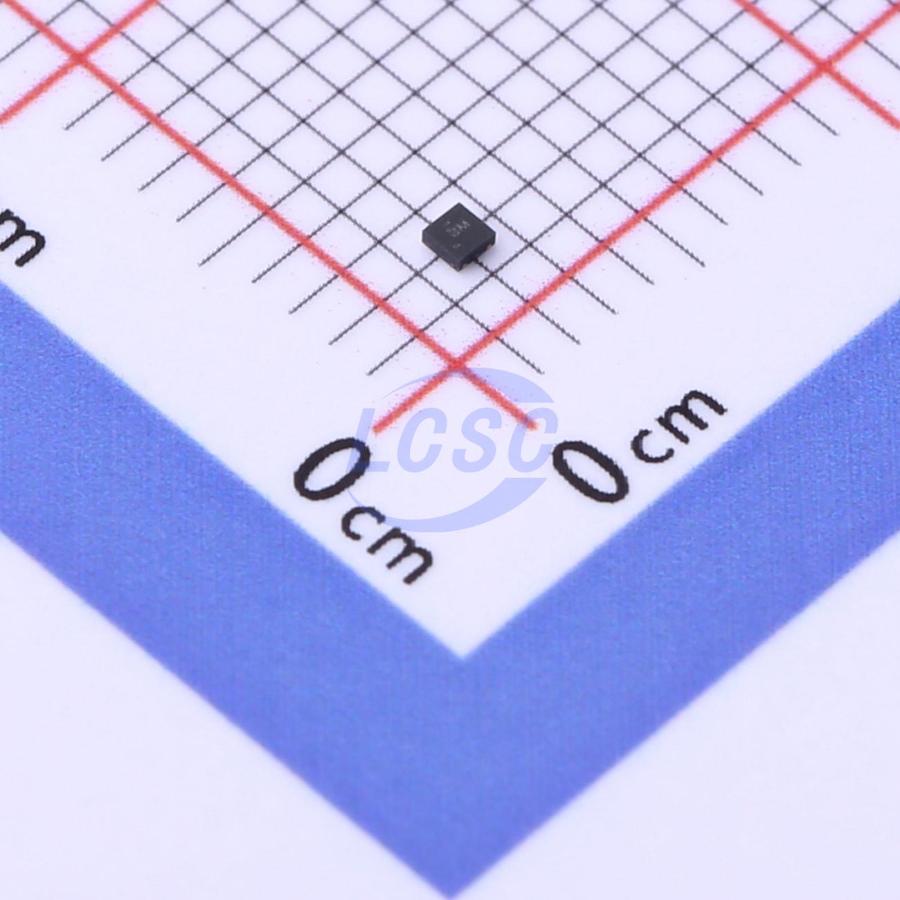

TLV70725DQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS3 CompliantActive
200mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV70725DQNR
- Store part #
- C2869017
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C2869017
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.66 | ₹53.30 |
| 50+ | ₹10.40 | ₹520.00 |
| 150+ | ₹10.23 | ₹1,534.50 |
| 500+ | ₹10.04 | ₹5,020.00 |
5 × ₹10.66
₹53.30
excl. GST
₹62.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70725DQNR
₹53.30 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.015 g
Overview
The TLV707 series (TLV707 and TLV707P) LDO regulators feature low quiescent current and excellent line and load transient performance, making them ideal for power-sensitive applications. These devices offer a typical accuracy of 0.5%. All versions include thermal shutdown and overcurrent protection for safety. Additionally, these devices remain stable with an effective output capacitance of only 0.1μF. This allows the use of cost-effective capacitors with higher bias voltage and temperature derating. These devices also regulate to rated accuracy under no-load conditions. Furthermore, the TLV707P provides an active pull-down circuit for fast output discharge. The TLV707 series LDOs are available in a 1mm × 1mm DQN (X2SON) package, making them suitable for handheld applications.
Applications
- Smartphones and wireless earphones
- Gaming and toys
- WLAN and other PC add-in cards
- TV and set-top boxes
- Wearable electronics
Key features
- Typical accuracy: 0.5%
- 200mA output support
- Low IQ: 25μA
- Fixed output voltage combinations from 0.85V to 5.0V
- High PSRR:
- 70dB at 100Hz
- 50dB at 1MHz
- Stable with 0.1μF ceramic capacitor
- Thermal shutdown and overcurrent protection
- Package: 1mm × 1mm DQN (X2SON)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV70725PDQNR#C2872472TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 260 | ₹22.60 · 260 in stock | View |
 | LD39020DTPU25R#C3751314ST · DFN-4(1x1) | ST | DFN-4(1x1) | 151 | ₹61.90 · 151 in stock | View |
| NCV8160AMX250TBG#C604026onsemi · XDFN-4(1x1) | onsemi | XDFN-4(1x1) | 100 | ₹46.33 · 100 in stock | View | |
 | MD57E25WB6#C920548Mingda Microelectronics · XDFN-4-EP(1x1) | Mingda Microelectronics | XDFN-4-EP(1x1) | 8,075 | ₹10.41 · 8,075 in stock | View |
 | LP590725QDQNRQ1#C2869702TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 4 | ₹106.87 · 4 in stock | View |
