TIDatasheet (PDF)

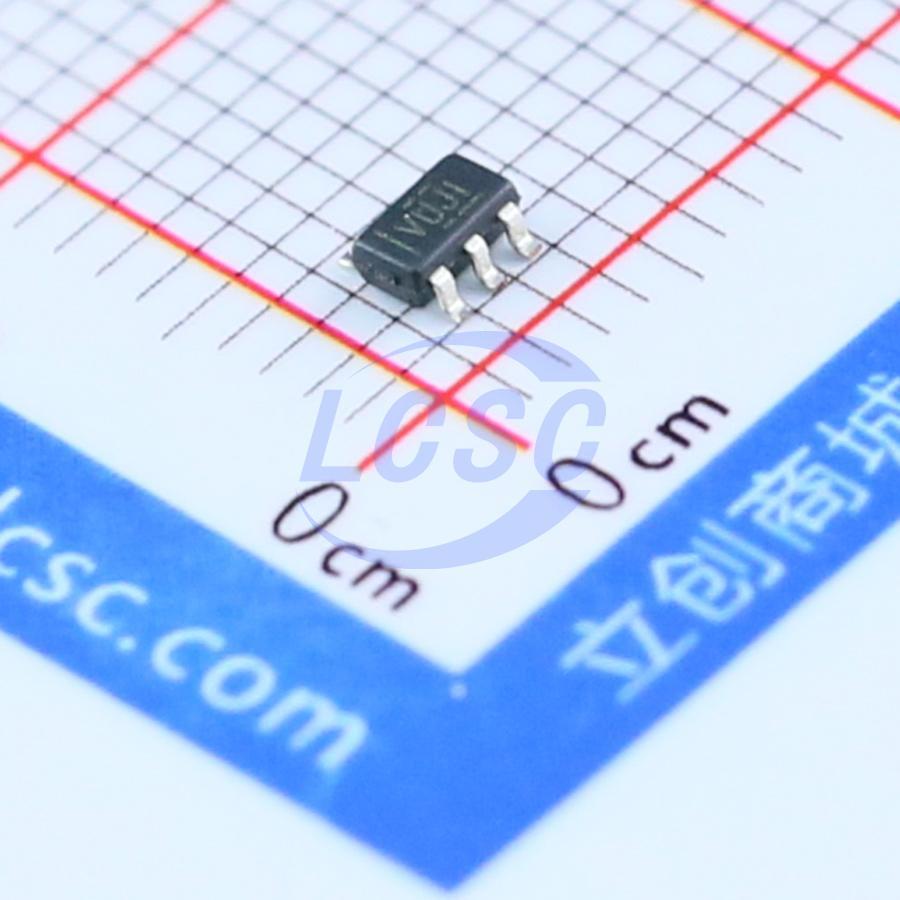

TLV71325PDBVR
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, low-dropout capacitorless regulator with active output discharge and enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV71325PDBVR
- Store part #
- C90841
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,205 in stock
#C90841
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.99 | ₹134.95 |
| 50+ | ₹21.60 | ₹1,080.00 |
| 150+ | ₹18.97 | ₹2,845.50 |
| 500+ | ₹16.63 | ₹8,315.00 |
| 3,000+ | ₹15.98 | ₹47,940.00 |
| 6,000+ | ₹15.60 | ₹93,600.00 |
5 × ₹26.99
₹134.95
excl. GST
₹159.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV71325PDBVR
₹134.95 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TLV713 series of low-dropout (LDO) linear regulators are low quiescent current LDOs with excellent line and load transient performance and are designed for power-sensitive applications. These devices provide a typical accuracy of 1%. The TLV713 series of devices is designed to be stable without an output capacitor. The removal of the output capacitor allows for a very small solution size. However, the TLV713 series is also stable with any output capacitor if an output capacitor is used. The TLV713 also provides inrush current control during device power up and enabling. The TLV713 limits the input current to the defined current limit to avoid large currents from flowing from the input power source. This functionality is especially important in battery-operated devices.
Applications
- PDAs and Battery-Powered Portable Devices
- MP3 Players and Other Hand-Held Products
- WLAN and Other PC Add-On Cards
Key features
- Stable Operation With or Without Capacitors
- Foldback Overcurrent Protection
- Packages: 1-mm × 1-mm 4-Pin X2SON 5-Pin SOT-23
- Very Low Dropout: 230 mV at 150 mA
- Accuracy: 1%
- Low IQ: 50 μA
- Input Voltage Range: 1.4 V to 5.5 V
- Available in Fixed-Output Voltages: 1 V to 3.3 V
- High PSRR: 65 dB at 1 kHz
- Active Output Discharge (P Version Only)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCP115ASN250T2G#C892051onsemi · TSOP-5 | onsemi | TSOP-5 | 45 | ₹14.96 · 45 in stock | View | |
 | SL9650M25SE#C7543307Slkor · SOT-23-5 | Slkor | SOT-23-5 | 685 | ₹10.95 · 685 in stock | View |
 | LTP3325NXT5#C2897790Linearin · SOT-23-5L | Linearin | SOT-23-5L | 930 | ₹15.51 · 930 in stock | View |
 | LP3981-25B5F#C2890365LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 2,744 | ₹5.85 · 2,744 in stock | View |
 | NCP114ASN250T1G#C892030onsemi · TSOP-5 | onsemi | TSOP-5 | 4,500 | ₹10.48 · 4,500 in stock | View |
