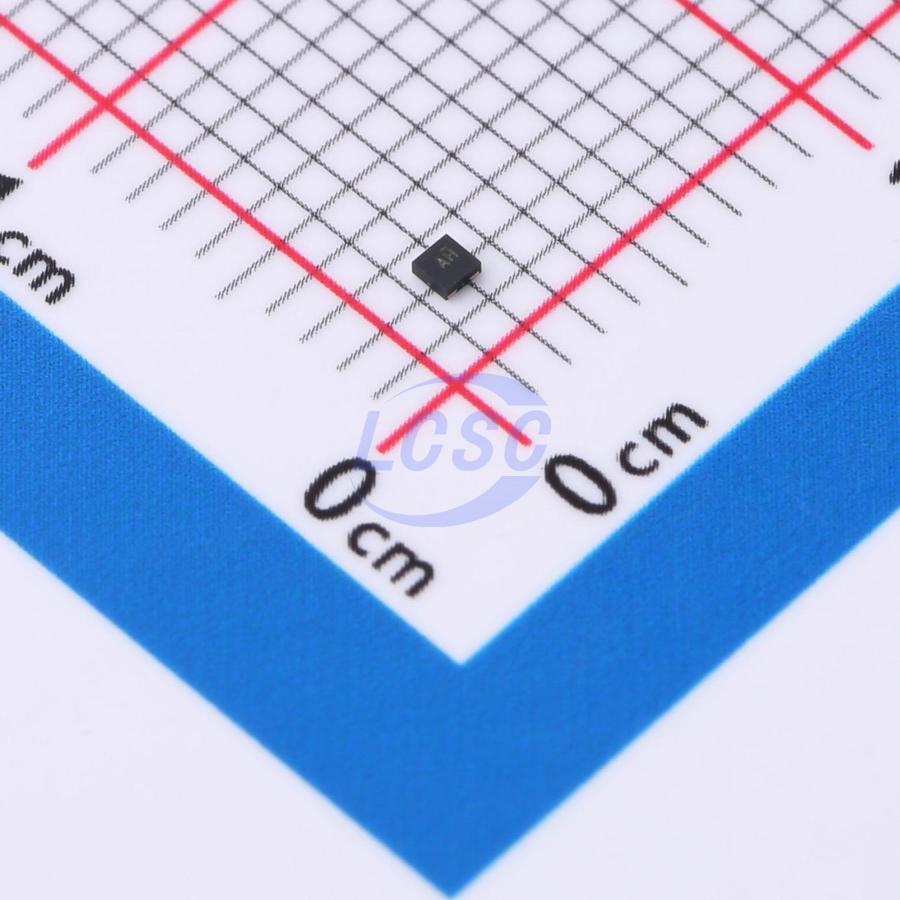

TLV71333PDQNR

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA X2-SON-4-EP(1x1)

X2-SON-4-EP(1x1)ROHS3 CompliantActive

150mA, low-dropout capacitorless regulator with active output discharge and enable function

Manufacturer: TI
Manufacturer part #: TLV71333PDQNR
Store part #: C2867340
Package / case: X2-SON-4-EP(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23,680 in stock

#C2867340

Stock & price checked 39 h ago

Quantity	Unit price	Pack price
10+	₹8.31	₹83.10
100+	₹6.60	₹660.00
300+	₹5.74	₹1,722.00
3,000+	₹5.11	₹15,330.00
6,000+	₹4.59	₹27,540.00
9,000+	₹4.33	₹38,970.00

Quantity (min 10, multiples of 10)

10 × ₹8.31

₹83.10

excl. GST

₹98.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV71333PDQNR

₹83.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 50uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 150mA
Output Type: Fixed
Features: Enable control;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.01 g

Overview

The TLV713 family of low-dropout (LDO) linear regulators features low quiescent current and excellent line and load transient performance, making them ideal for power-sensitive applications. These devices provide a typical accuracy of 1%. The TLV713 family is designed to operate stably without an output capacitor. Removing the output capacitor enables an extremely compact solution size. However, if an output capacitor is used, the TLV713 family can also operate stably with any output capacitor. The TLV713 also provides inrush current control during device power-up and enable. The TLV713 limits input current to a defined current limit to prevent large currents from the input power supply. This feature is particularly important for battery-powered devices. The TLV713 family is available in standard DQN and DBV packages. The TLV713P provides an active pull-down circuit for rapid discharge of the output load.

Applications

PDAs and battery-powered portable devices
MP3 players and other handheld products
WLAN and other PC add-in cards

Key features

Stable operation with or without output capacitor
Foldback overcurrent protection
Package: 1mm×1mm 4-pin X2SON, 5-pin SOT-23
Ultra-low dropout: 230mV at 150mA
Accuracy: 1%
Low IQ: 50μA
Input voltage range: 1.4V to 5.5V
Fixed output voltage options: 1V to 3.3V
High PSRR: 65dB at 1kHz
Active output discharge (P version only)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TLV74133PDQNR#C485136TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	675	₹13.36 · 675 in stock	View
WL2815D33-4/TR#C506126WILLSEMI · XDFN-4-EP(1x1)	WILLSEMI	XDFN-4-EP(1x1)	13,320	₹7.77 · 13,320 in stock	View
TLV70733PDQNR#C2870924TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	10	₹17.09 · 10 in stock	View
BU33UA3WNVX-TL#C510081ROHM · DFN-4-EP(1x1)	ROHM	DFN-4-EP(1x1)	4,770	₹32.45 · 4,770 in stock	View
NCP115CMX330TCG#C603510onsemi · XDFN-4-EP(1x1)	onsemi	XDFN-4-EP(1x1)	45	₹21.13 · 45 in stock	View
