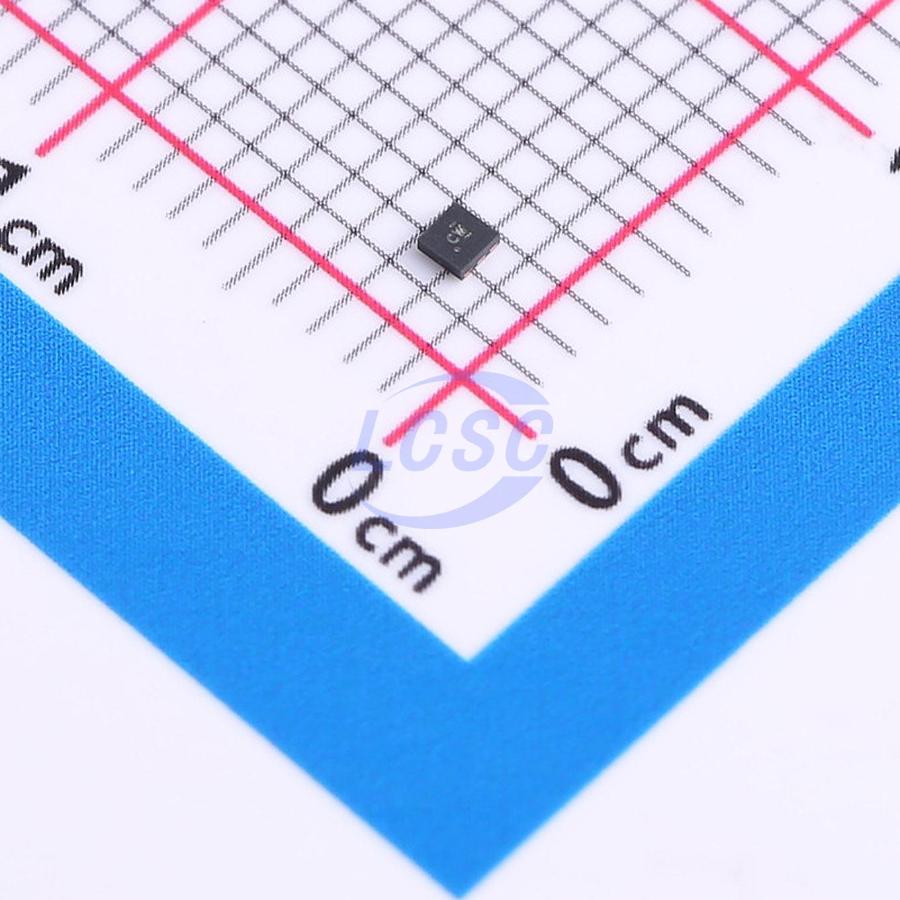

TLV7162818PDPQR

Linear Voltage Regulator IC Positive Fixed 2 Output 150mA X2SON-6(1.2x1.2)

X2SON-6(1.2x1.2)ROHS3 CompliantActive

150mA, dual-channel low-dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: TLV7162818PDPQR
Store part #: C2867625
Package / case: X2SON-6(1.2x1.2)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

962 in stock

#C2867625

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹57.46	₹57.46
10+	₹45.75	₹457.50
30+	₹40.76	₹1,222.80
100+	₹34.48	₹3,448.00
500+	₹31.66	₹15,830.00
1,000+	₹29.93	₹29,930.00

Quantity (min 1)

1 × ₹57.46

₹57.46

excl. GST

₹67.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV7162818PDPQR

₹57.46 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.8V;1.8V
Number of Outputs: 2
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 50uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 150mA
Features: Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.076 g

Overview

TLV716 is a dual-channel, capacitor-free, 150mA LDO regulator family offering multiple fixed output voltage options (ranging from 1V to 3.3V). The family provides 1% initial accuracy and 1.5% accuracy over the full temperature range. The TLV716 family is designed to remain stable with or without input or output capacitors. Removing the output capacitor enables an extremely compact solution size. The TLV716P family features an active pull-down circuit that rapidly discharges the output voltage in applications requiring an output capacitor. The device also controls inrush current during power-up and enable events. Inrush control charges the output load with a constant current during device startup, thereby reducing the risk of unintended overcurrent faults on the input power supply or battery. The TLV716 is available in a 1.2mm × 1.2mm SOT-6 package, making it ideal for space-constrained applications.

Applications

Wireless earphones
Smartphones
Tablet PCs
Set-top boxes (STB)
Cameras
Modems
Portable battery-powered products

Key features

No input or output capacitors required
Inrush current control
Low crosstalk
Accuracy: 1.5% (−40°C to 125°C)
Input voltage range: 1.4V to 5.5V
Multiple fixed output voltage options between 1V and 3.3V
Foldback current protection
Package: 1.2mm×1.2mm small outline no-lead (SON)-6 (DPQ)
