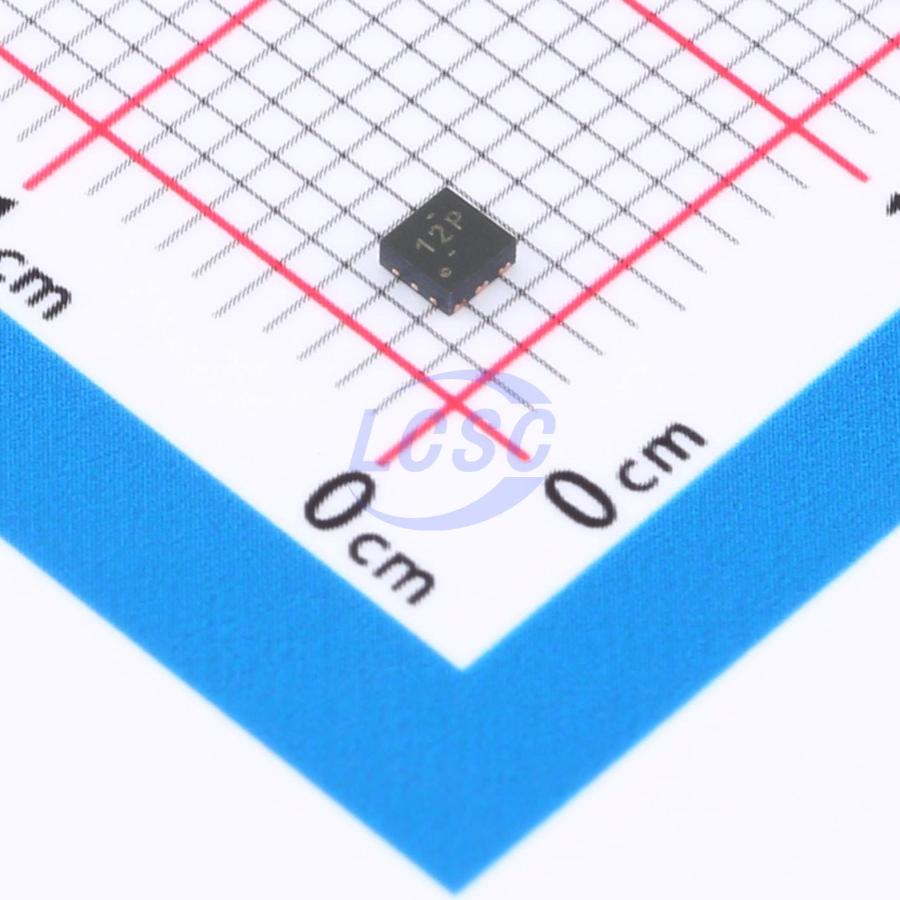

TLV73310PQDRVRQ1

The TLV733P-Q1 series LDO linear regulators feature an ultra-small footprint and low quiescent current, delivering 300mA source current with excellent line and load transient performance. These devices offer a typical accuracy of 1%. The TLV733P-Q1 series adopts a modern capacitor-free architecture that ensures stable operation without input or output capacitors. Removing the output capacitor helps reduce solution size and eliminates inrush current during startup. Furthermore, the TLV733P-Q1 series remains stable when ceramic capacitors must be used. When an output capacitor is present, the TLV733P-Q1 series also provides foldback current control during device power-up and enable transitions — a feature particularly important for battery-powered devices. The TLV733P-Q1 series incorporates an active pull-down circuit to rapidly discharge the output load when disabled. The TLV733P-Q1 series is available in a 6-pin DRV (WSON) package.

Applications

• Camera modules
• Automotive infotainment systems
• Navigation systems

Key features

• AEC-Q100 qualified for automotive electronics applications
• Device temperature grade 1: –40°C to 125°C ambient operating temperature range
• Device HBM ESD classification level 2
• Device CDM ESD classification level C4B
• Input voltage range: 1.4V to 5.5V
• Stable operation with or without output capacitor
• Foldback overcurrent protection
• 2.0mm×2.0mm WSON-6 package
• Ultra-low dropout: 125mV at 300mA (3.3V_OUT)
• Accuracy: 1% typical, 1.4% maximum
• Low IQ: 34μA
• Fixed output voltage options: 1.0V to 3.3V
• High PSRR: 50dB at 1kHz
• Active output discharge
