TIDatasheet (PDF)

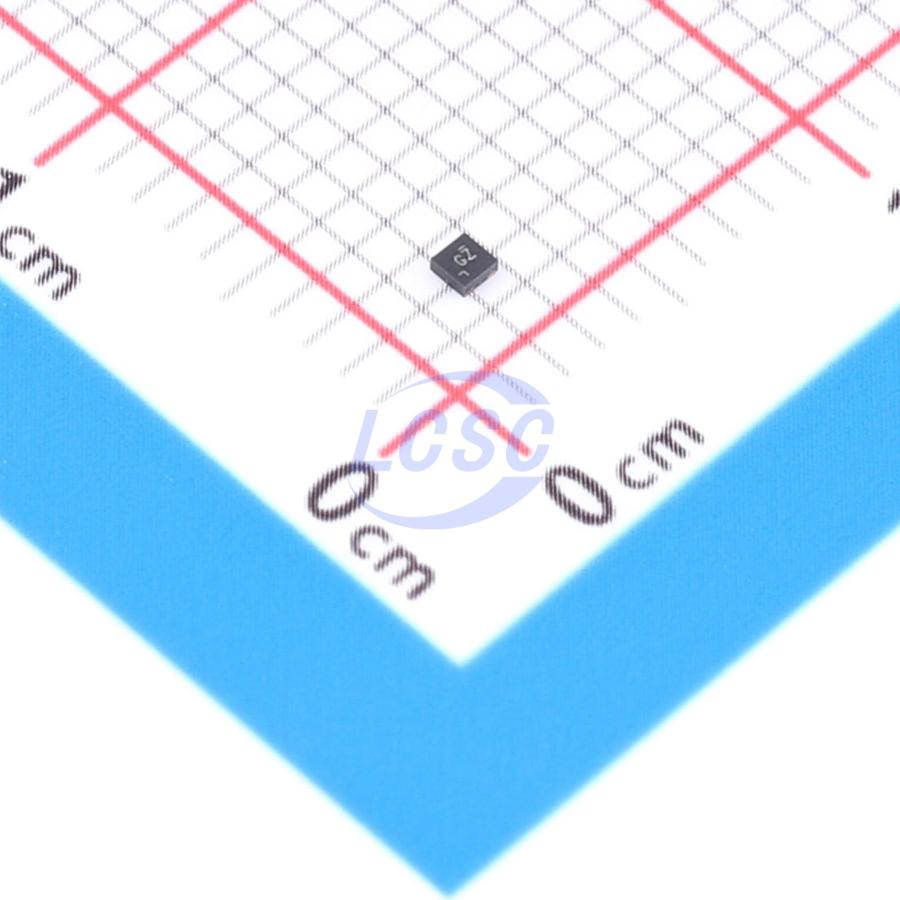

TLV733285PDQNR
2.85V Positive Fixed X2-SON-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-SON-4-EP(1x1)ROHS3 CompliantActive
300mA, low IQ, low-dropout capacitor-less regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV733285PDQNR
- Store part #
- C2876098
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2876098
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.12 | ₹45.60 |
| 50+ | ₹8.88 | ₹444.00 |
| 150+ | ₹8.72 | ₹1,308.00 |
| 500+ | ₹8.57 | ₹4,285.00 |
5 × ₹9.12
₹45.60
excl. GST
₹53.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV733285PDQNR
₹45.60 for 5 + GST
Specifications
- Output Voltage
- 2.85V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 34uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.101 g
Overview
The TLV733 series LDO regulators feature an ultra-small footprint and low quiescent current, capable of sourcing 300mA with excellent line and load transient performance. This series offers a typical accuracy of 1%. The TLV733 series employs a capacitor-free architecture, ensuring stable operation without requiring input or output capacitors. Eliminating the output capacitor helps reduce solution size and eliminates inrush current during startup. However, the TLV733 series also operates stably with ceramic output capacitors. When an output capacitor is used, the TLV733 additionally provides foldback current control during device power-up and enable transitions — a feature particularly valuable for battery-powered applications. The TLV733 features an active pulldown circuit that rapidly discharges the output load when disabled. The TLV733 series is available in standard DBV (SOT-23) and DQN (X2SON) packages.
Applications
- Tablets
- Smartphones
- Laptop and desktop computers
- Portable industrial and consumer products
- WLAN and other PC add-in cards
- Camera modules
Key features
- Input voltage range: 1.4V to 5.5V
- Stable operation with or without capacitors
- Foldback overcurrent protection
- Ultra-low dropout: 125mV at 300mA (3.3V_OUT)
- Accuracy: 1% typical, 1.4% maximum
- Low I_Q: 34μA
- Fixed output voltage options: 1.0V to 3.3V
- High PSRR: 50dB at 1kHz
- Active output discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV743285PDQNR#C485156TI · X2SON-4-EP(1x1) | TI | X2SON-4-EP(1x1) | 795 | ₹8.22 · 795 in stock | View |
 | TPS7A20285PDQNR#C3748388TI · X2-SON-4(1x1) | TI | X2-SON-4(1x1) | 755 | ₹30.30 · 755 in stock | View |
 | NCP114AMX285TCG#C603492onsemi · UDFN-4-EP(1x1) | onsemi | UDFN-4-EP(1x1) | 10 | ₹26.50 · 10 in stock | View |
| TLV733285PDQNT#C2861161TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | On request | ₹118.73 · 0 in stock | View | |
| AP7343-285FS4-7B#C6465607DIODES · X2-DFN1010-4 | DIODES | X2-DFN1010-4 | On request | ₹44.14 · 0 in stock | View | |
