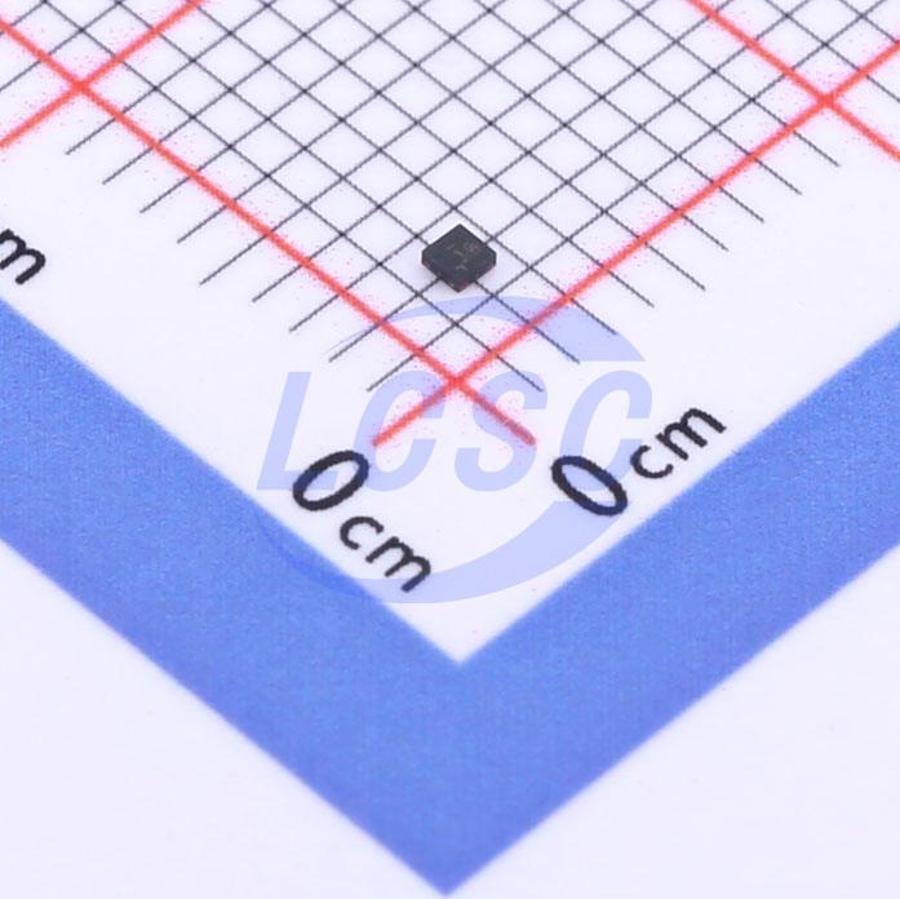

TLV74010PDQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS CompliantActive
300mA Low Dropout (LDO) Regulator with Foldback Current Limiting
- Manufacturer
- TI
- Manufacturer part #
- TLV74010PDQNR
- Store part #
- C2995549
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C2995549
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.53 | ₹55.30 |
| 100+ | ₹5.41 | ₹541.00 |
| 300+ | ₹5.33 | ₹1,599.00 |
| 1,000+ | ₹5.25 | ₹5,250.00 |
10 × ₹5.53
₹55.30
excl. GST
₹65.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74010PDQNR
₹55.30 for 10 + GST
Specifications
- Output Voltage
- 1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Output discharge;Input under-voltage protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The TLV740P low-dropout (LDO) linear regulator is a low quiescent current LDO with excellent line and load transient performance, designed for power-sensitive applications. It provides a typical accuracy of 1%. It also offers inrush current control during device power-up and enable events, limiting input current to a defined current threshold to prevent excessive current draw from the input supply. Available in standard DQN and DBV packages, it also features an active pull-down circuit for rapid output load discharge.
Applications
- Portable media players
- General-purpose laptops
- Streaming media players
- Home printers
- STB and DVR
Key features
- Foldback overcurrent protection
- Package: 1mm×1mm 4-pin X2SON, 5-pin SOT-23
- Ultra-low dropout: 460mV at 300mA
- Accuracy: 1%
- Low IQ: 50μA
- Input voltage range: 1.4V to 5.5V
- Fixed output voltage options: 1V to 3.3V
- High PSRR: 65dB at 1kHz
- Active output discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV73310PDQNR#C2870906TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 190 | ₹25.98 · 190 in stock | View |
| BU10UA3WNVX-TL#C5955944ROHM · DFN-4-EP(1x1) | ROHM | DFN-4-EP(1x1) | On request | ₹18.36 · 0 in stock | View | |
| NCP115AMX100TCG#C892038onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | On request | ₹13.51 · 0 in stock | View | |
| NCP115CMX100TCG#C892053onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | On request | ₹16.23 · 0 in stock | View | |
| NCP114BMX100TCG#C892034onsemi · UDFN-4-EP(1x1) | onsemi | UDFN-4-EP(1x1) | On request | ₹10.24 · 0 in stock | View | |
