TIDatasheet (PDF)

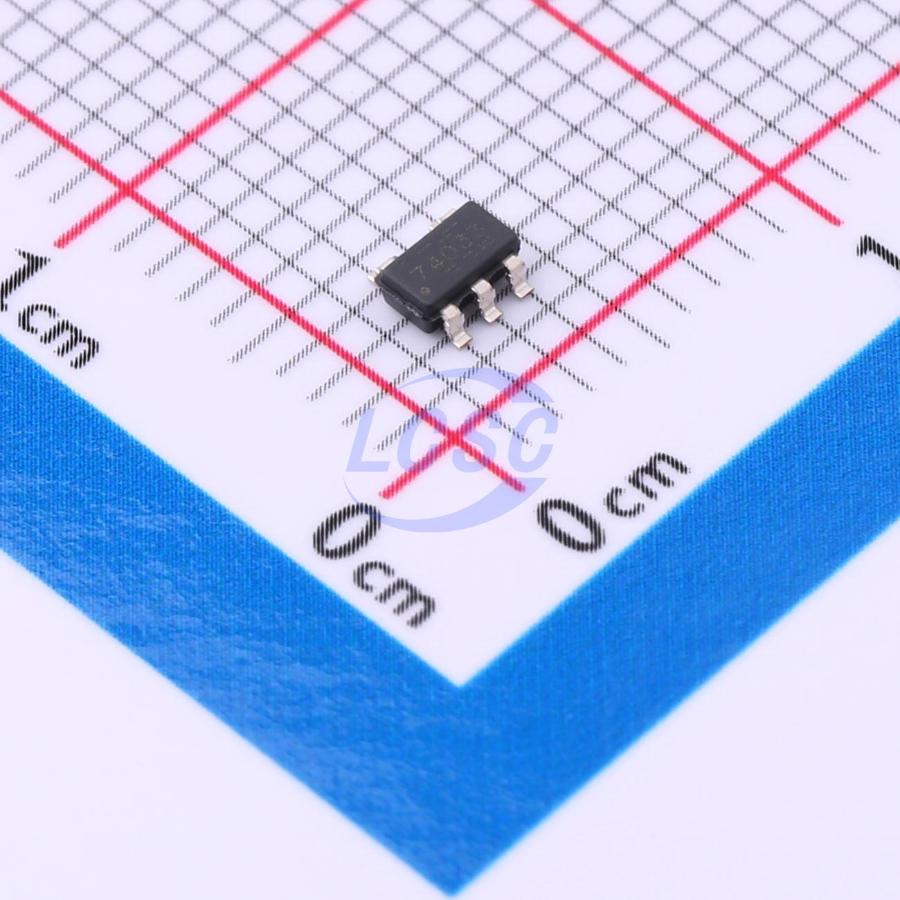

TLV74033PDBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
300mA Low Dropout (LDO) Regulator with Foldback Current Limiting
- Manufacturer
- TI
- Manufacturer part #
- TLV74033PDBVR
- Store part #
- C3743587
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,860 in stock
#C3743587
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.99 | ₹69.90 |
| 100+ | ₹5.65 | ₹565.00 |
| 300+ | ₹4.96 | ₹1,488.00 |
| 1,000+ | ₹4.39 | ₹4,390.00 |
| 5,000+ | ₹4.19 | ₹20,950.00 |
| 10,000+ | ₹4.06 | ₹40,600.00 |
10 × ₹6.99
₹69.90
excl. GST
₹82.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74033PDBVR
₹69.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Output discharge;Input under-voltage protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.052 g
Overview
The TLV740P low-dropout (LDO) linear regulator is a low quiescent current LDO with excellent line and load transient performance, designed for power-sensitive applications. It provides a typical accuracy of 1%. It also offers inrush current control during device power-up and enable events, limiting input current to a defined current threshold to prevent excessive current draw from the input supply. Available in standard DQN and DBV packages, it also features an active pull-down circuit for rapid output load discharge.
Applications
- Portable media players
- General-purpose laptops
- Streaming media players
- Home printers
- STB and DVR
Key features
- Foldback overcurrent protection
- Package: 1mm×1mm 4-pin X2SON, 5-pin SOT-23
- Ultra-low dropout: 460mV at 300mA
- Accuracy: 1%
- Low IQ: 50μA
- Input voltage range: 1.4V to 5.5V
- Fixed output voltage options: 1V to 3.3V
- High PSRR: 65dB at 1kHz
- Active output discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FP6185-33S5#C498352FITIPOWER · SOT-23-5 | FITIPOWER | SOT-23-5 | 3,070 | ₹6.77 · 3,070 in stock | View |
 | NCP115ASN330T2G#C603505onsemi · TSOP-5 | onsemi | TSOP-5 | 6,630 | ₹5.87 · 6,630 in stock | View |
 | 4A2D#C2832127FM · SOT-23-5 | FM | SOT-23-5 | 7,300 | ₹5.04 · 7,300 in stock | View |
 | NCP114ASN330T1G#C457666onsemi · TSOP-5-1.5mm | onsemi | TSOP-5-1.5mm | 16,450 | ₹12.08 · 16,450 in stock | View |
 | PJ9350L33SE#C41368012PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 380 | ₹9.16 · 380 in stock | View |
