TIDatasheet (PDF)

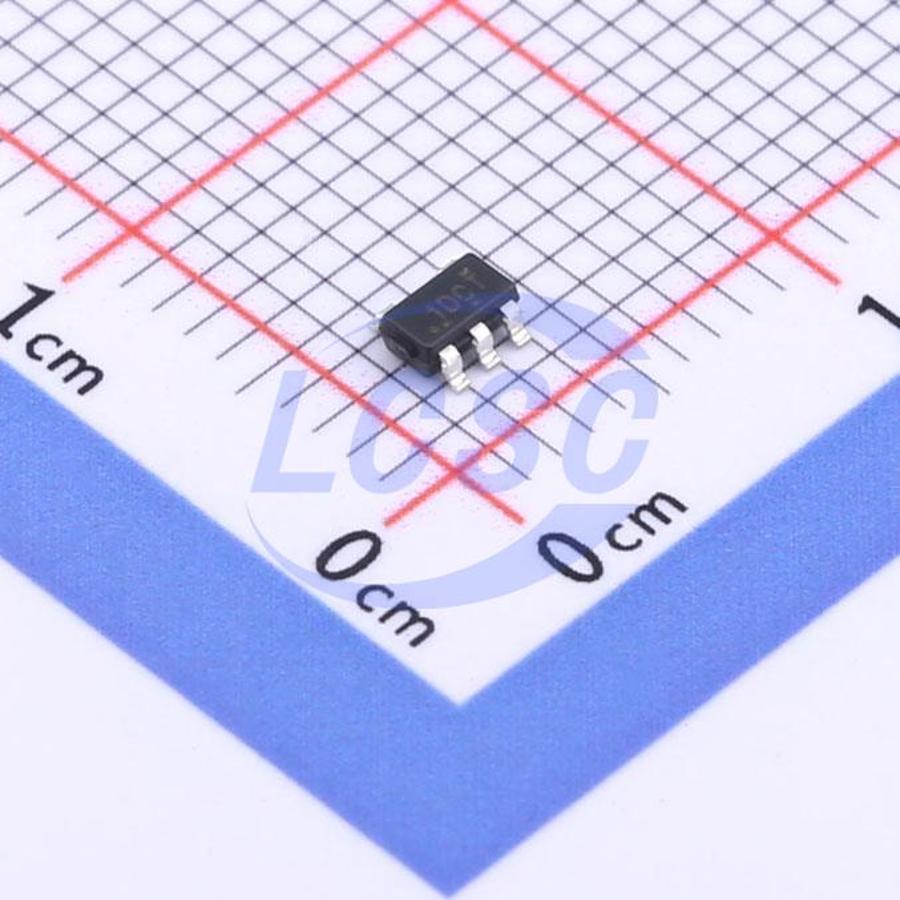

TLV74315PDBVR
1.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
300mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV74315PDBVR
- Store part #
- C469895
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
355 in stock
#C469895
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.58 | ₹57.90 |
| 50+ | ₹9.83 | ₹491.50 |
| 150+ | ₹8.93 | ₹1,339.50 |
| 500+ | ₹8.19 | ₹4,095.00 |
| 3,000+ | ₹7.92 | ₹23,760.00 |
| 6,000+ | ₹7.75 | ₹46,500.00 |
5 × ₹11.58
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74315PDBVR
₹57.90 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 34uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The TLV743P low-dropout linear regulator (LDO) is an ultra-small, low quiescent current LDO that sources 300 mA with good line and load transient performance. The device provides a typical accuracy of 1%. The TLV743P is designed to be stable with a small output capacitor with a value of 1 μF. The TLV743P device provides foldback current control during device power up and enabling. This functionality is especially important in battery-operated devices. The TLV743P provides an active pulldown circuit to quickly discharge output loads when the device is disabled. The TLV743P is available in standard DBV (SOT-23) and DQN (X2SON) packages.
Applications
- Tablets
- Smartphones
- Notebook and Desktop Computers
- Portable Industrial and Consumer Products
- WLAN and Other PC Add-On Cards
- Camera Modules
Key features
- Input Voltage Range: 1.4 V to 5.5 V
- Stable Operation With 1-μF Ceramic Output Capacitor
- Foldback Overcurrent Protection
- Packages: SOT-23 (5), X2SON (4)
- Very Low Dropout: 125 mV at 300 mA (3.3 VOUT)
- Accuracy: 1% (Typical), 1.4% (Maximum)
- Low IQ: 34 μA
- Available in Fixed-Output Voltages: 1 V to 3.3 V
- High PSRR: 50 dB at 1 kHz
- Active Output Discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV73315PDBVR#C469915TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹20.68 · 10 in stock | View |
 | TLV73315PQDBVRQ1#C2862545TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹71.51 · 10 in stock | View |
 | TLV70215DBVR#C206116TI · SOT-23-5 | TI | SOT-23-5 | 1,000 | ₹30.39 · 1,000 in stock | View |
| TLV70215PDBVR#C2863803TI · SOT-23-5 | TI | SOT-23-5 | 31 | ₹24.14 · 31 in stock | View | |
| TLV70315DBVR#C2864974TI · SOT-23-5 | TI | SOT-23-5 | 690 | ₹12.53 · 690 in stock | View | |
