MSKSEMI

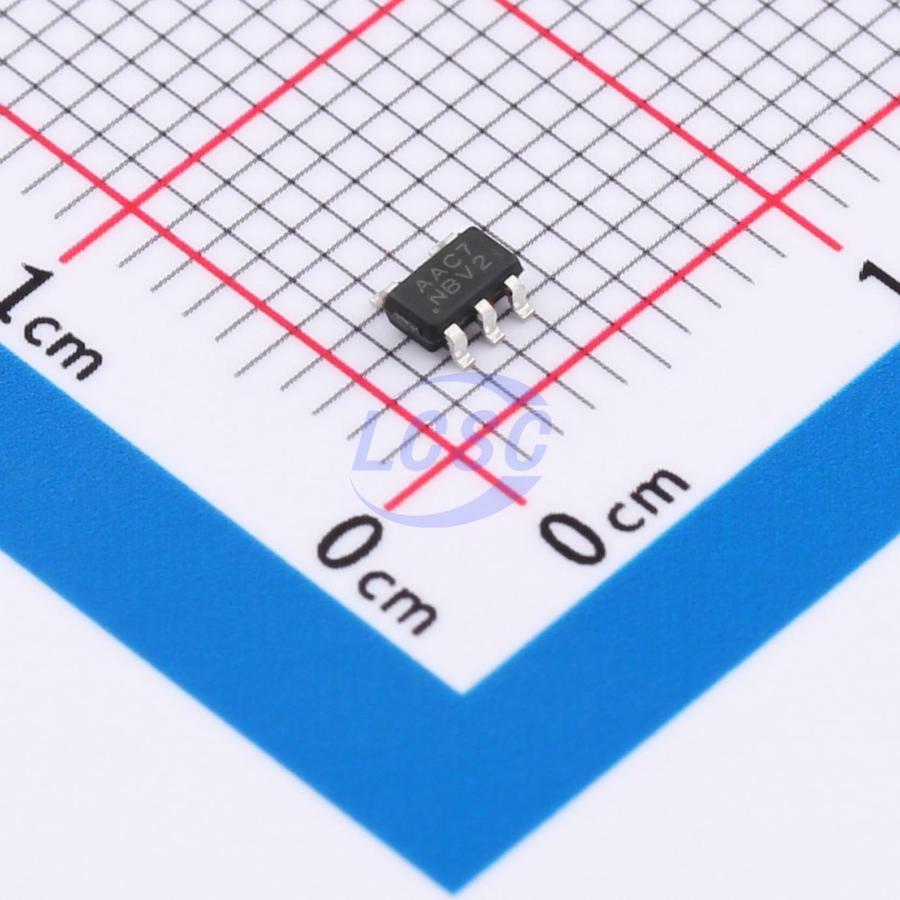

TLV74333PDBVR-MS

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5

SOT-23-5RoHSActive

Low Dropout (LDO) Converter

Manufacturer: MSKSEMI
Manufacturer part #: TLV74333PDBVR-MS
Store part #: C30197481
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,525 in stock

#C30197481

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹12.41	₹62.05
50+	₹9.79	₹489.50
150+	₹8.49	₹1,273.50
500+	₹7.51	₹3,755.00
2,500+	₹6.73	₹16,825.00
5,000+	₹6.34	₹31,700.00

Quantity (min 5, multiples of 5)

5 × ₹12.41

₹62.05

excl. GST

₹73.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV74333PDBVR-MS

₹62.05 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The TLV743XXPDBVR-MS series is a family of low-dropout (LDO) regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low power consumption, and compact packaging. The TLV743XXPDBVR-MS offers an ultra-low quiescent current of 2uA, making it particularly well-suited for battery-powered and long-term standby system applications. It helps reduce system standby power consumption, effectively extending standby time and battery life. The TLV743XXPDBVR-MS is available in a version with an EN enable pin. Pulling the EN pin low puts the device into shutdown mode, where quiescent current drops to as low as 100nA (typical). The TLV743XXPDBVR-MS series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and the entire output load current range of 0mA to 300mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtops, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2µA quiescent current (no load)
±2% output voltage accuracy
300mA output current capability
100nA shutdown current (optional version)
Wide input voltage range: 1.2V to 5.5V
Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Ceramic or tantalum capacitor compatible
Current limiting protection
Over-temperature protection

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AP2125K-3.3TRG1(MS)#C22365431MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,760	₹13.76 · 2,760 in stock	View
LP5907MFX-3.3/NOPB(MS)#C20538881MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	4,580	₹13.19 · 4,580 in stock	View
TLV70233DBVR(MS)#C20627176MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	695	₹11.48 · 695 in stock	View
XC6228D332VR-G(MS)#C20627177MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	940	₹10.81 · 940 in stock	View
TLV70033DDCR-MS#C30197541MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,070	₹11.88 · 2,070 in stock	View
