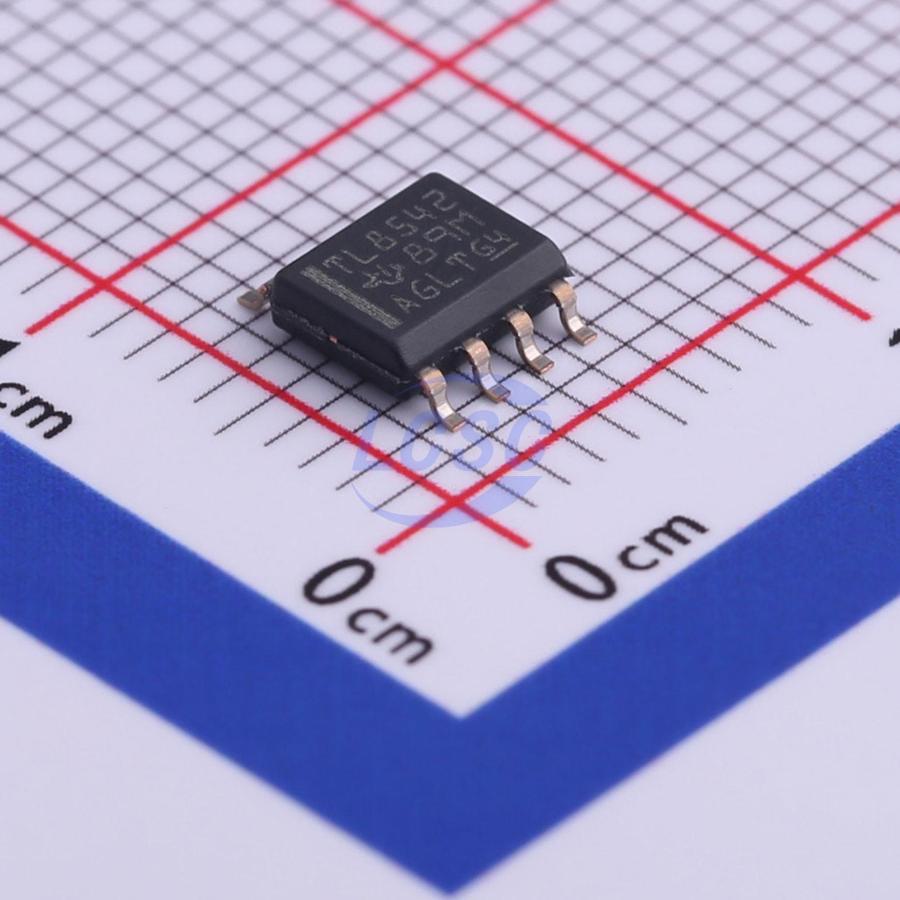

TLV8542DR
15mA 2 3.1mV 4.5V/ms 90dB 0.1pA 550nA 8kHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Nanopower Operational Amplifiers for Cost-Optimized Systems
- Manufacturer
- TI
- Manufacturer part #
- TLV8542DR
- Store part #
- C485539
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,063 in stock
#C485539
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.05 | ₹96.05 |
| 10+ | ₹78.28 | ₹782.80 |
| 30+ | ₹69.39 | ₹2,081.70 |
| 100+ | ₹60.50 | ₹6,050.00 |
| 500+ | ₹55.29 | ₹27,645.00 |
| 1,000+ | ₹52.47 | ₹52,470.00 |
1 × ₹96.05
₹96.05
excl. GST
₹113.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV8542DR
₹96.05 for 1 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.1mV
- Slew Rate
- 4.5V/ms
- Input Offset Current(Ios)
- 0.1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 0.1pA
- Input Offset Voltage Drift(Vos TC)
- 800nV/℃
- Quiescent Current
- 550nA
- Gain Bandwidth Product
- 8kHz
- Features
- Built-in compensation;EMI filtering/RF suppression
- Input Voltage Noise Density
- 264nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.7V~3.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.103 g
Overview
The TLV854x ultra-low-power operational amplifiers (op amps) are intended for cost-optimized sensing applications in wireless and low-power wired equipment. The TLV854x family of op amps minimize power consumption in equipment such as motion detecting security systems (like microwave and PIR motion sensing) where operational battery life is critical. They also have a carefully designed CMOS input stage, enabling very low, femto-ampere bias currents, thereby reducing IBIAS and IOS errors that would otherwise impact sensitive applications. Examples of these include transimpedance amplifier (TIA) configurations with megaohm feedback resistors, and high source impedance sensing applications. Additionally, built-in EMI protection reduces sensitivity to unwanted RF signals from sources such as mobile phones, WiFi, radio transmitters and tab readers. The TLV854x op amps operates with a single supply voltage down to 1.7 V supply, providing continuous performance in low battery situations over the extended temperature range of -40°C to +125°C. All versions are specified for operation from -40°C to 125°C. The TLV8541 (single version) is available in the 5-pin SOT-23 while the TLV8542 (dual version) is available in the 8-pin SOIC package. The 4-channel TLV8544 (quad version) is available in the industry standard 14-pin TSSOP package.
Applications
- Motion Detectors Using PIR Sensors SNAA301
- Motion Detectors Using Microwave Sensors
- Gas Detectors
- Ionization Smoke Alarms
- Thermostats
- Remote Sensors, IoT (Internet of Things)
- Active RFID Readers and Tags
- Portable Medical Equipment Glucose Monitoring
Key features
- For Cost-Optimized Systems
- Nanopower Supply Current: 500 nA per Channel
- Offset Voltage: 3.1 mV (maximum)
- TcVos: 0.8 μV/°C
- Gain Bandwidth: 8 kHz
- Unity-Gain Stable
- Low Input-Bias Current: 100 fA
- Wide Supply Range: 1.7 V to 3.6 V
- Rail-to-Rail Input and Output (RRIO)
- Temperature Range -40°C to +125°C
- Industry Standard Package Quad in 14-pin TSSOP and SOIC Dual in 8-pin SOIC
- Single in 5-pin SOT-23
- Leadless Package
- Dual in 8-Pin X2QFN
