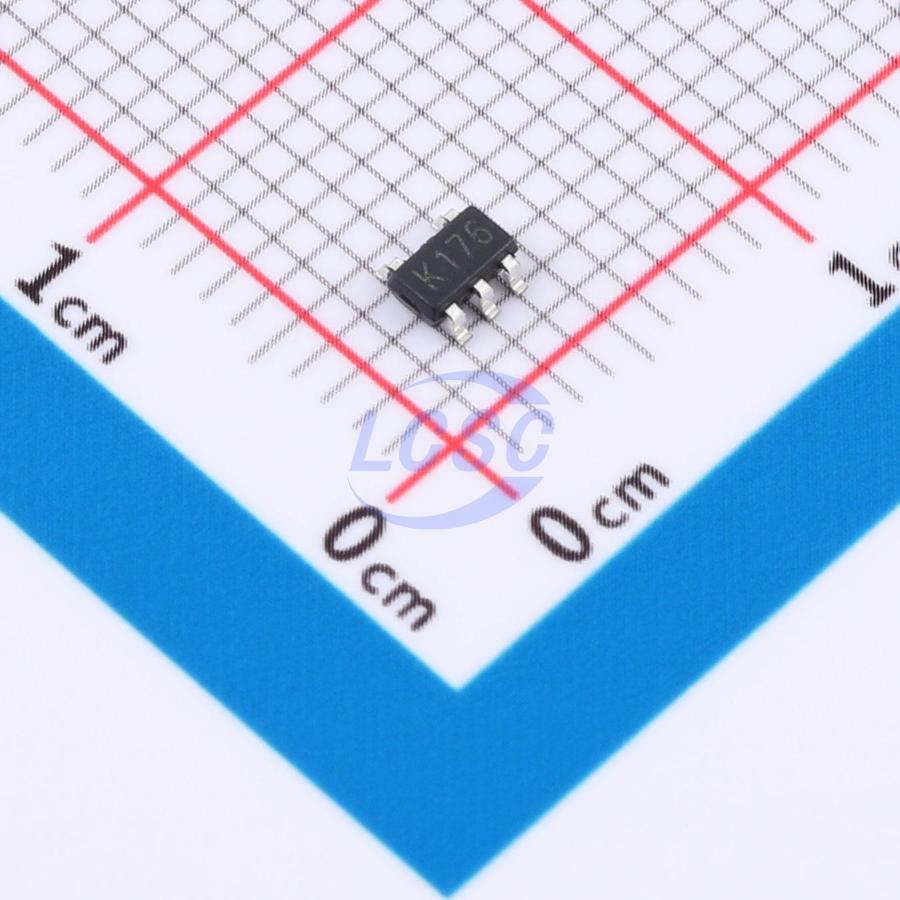

TLV9001IDBVR-TP

45mA 1mV 1V/us 80dB 5pA 28uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TLV9001IDBVR-TP
Store part #: C53100587
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,305 in stock

#C53100587

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.19	₹105.95
50+	₹16.51	₹825.50
150+	₹14.51	₹2,176.50
500+	₹12.01	₹6,005.00
3,000+	₹10.89	₹32,670.00
6,000+	₹10.23	₹61,380.00

Quantity (min 5, multiples of 5)

5 × ₹21.19

₹105.95

excl. GST

₹125.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV9001IDBVR-TP

₹105.95 for 5 + GST

Specifications

Output Current: 45mA
Vos - Input Offset Voltage: 1mV
Slew Rate: 1V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -45℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Quiescent Current: 28uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 65nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-0.75V;0.75V~2.75V
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

This series is a general-purpose, low-offset, high-frequency response, low-power op-amp family. With an excellent 1MHz bandwidth, 1V/μs slew rate, and only 28μA quiescent current per amplifier at a 5V supply, this series is suitable for a wide range of applications. These op-amps are designed to deliver performance in low-voltage, low-power systems. The input common-mode voltage range includes ground, with a maximum input offset voltage of 3mV. These devices are capable of providing rail-to-rail output swing under heavy loads. This op-amp series is specified over the full temperature range of -40℃ ~ +85℃ operating from single or dual supplies of 1.5V to 5.5V.
