MSKSEMI

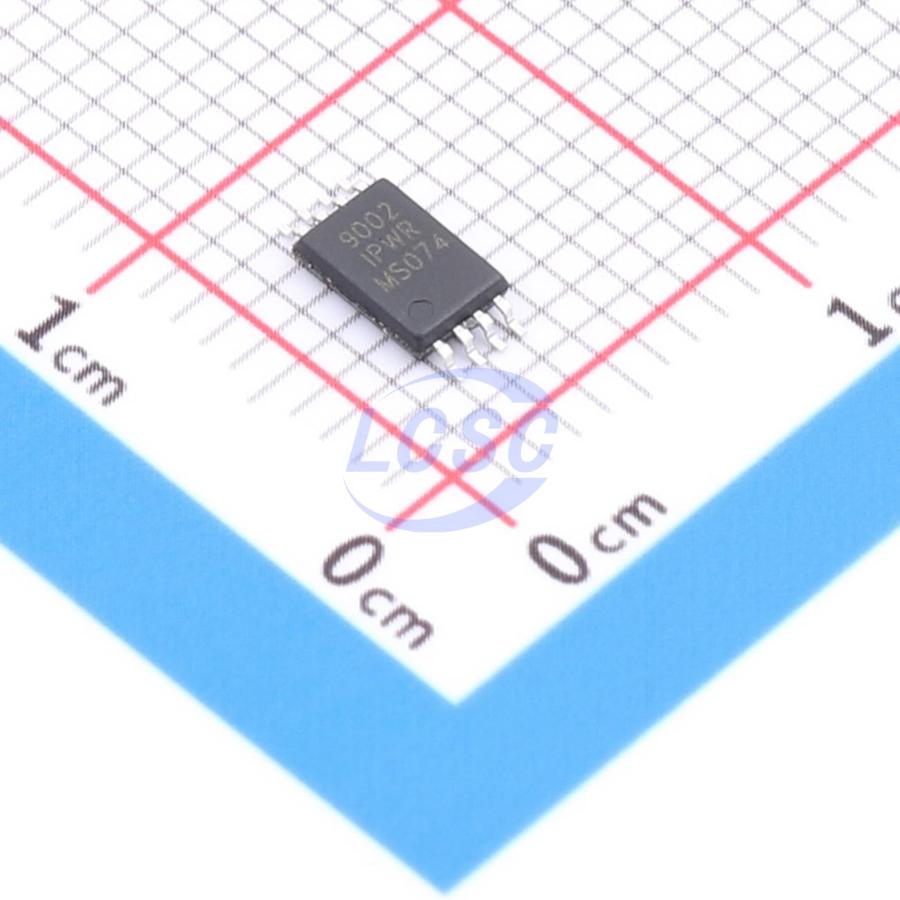

TLV9002IPWR-MS

5pA 28uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-8 Audio Amplifiers

TSSOP-8RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: TLV9002IPWR-MS
Store part #: C54781111
Package / case: TSSOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,980 in stock

#C54781111

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹23.18	₹115.90
50+	₹18.31	₹915.50
150+	₹16.22	₹2,433.00
500+	₹13.63	₹6,815.00
2,500+	₹12.46	₹31,150.00
5,000+	₹11.77	₹58,850.00

Quantity (min 5, multiples of 5)

5 × ₹23.18

₹115.90

excl. GST

₹136.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLV9002IPWR-MS

₹115.90 for 5 + GST

Specifications

Ib - Input Bias Current: 5pA
number of channels: 2
Operating Temperature: -40℃~+85℃
Input Offset Current(Ios): 1pA
Vos - Input Offset Voltage: 3mV
Output Current: 45mA
Common Mode Rejection Ratio (CMRR): 80dB
Quiescent Current: 28uA
Gain Bandwidth Product: 1MHz
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Single Supply: 1.8V~5.5V
Dual Supply: -2.75V~-900mV;900mV~2.75V
Slew Rate: 1V/us
Noise density(eN): 65nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.196 g
