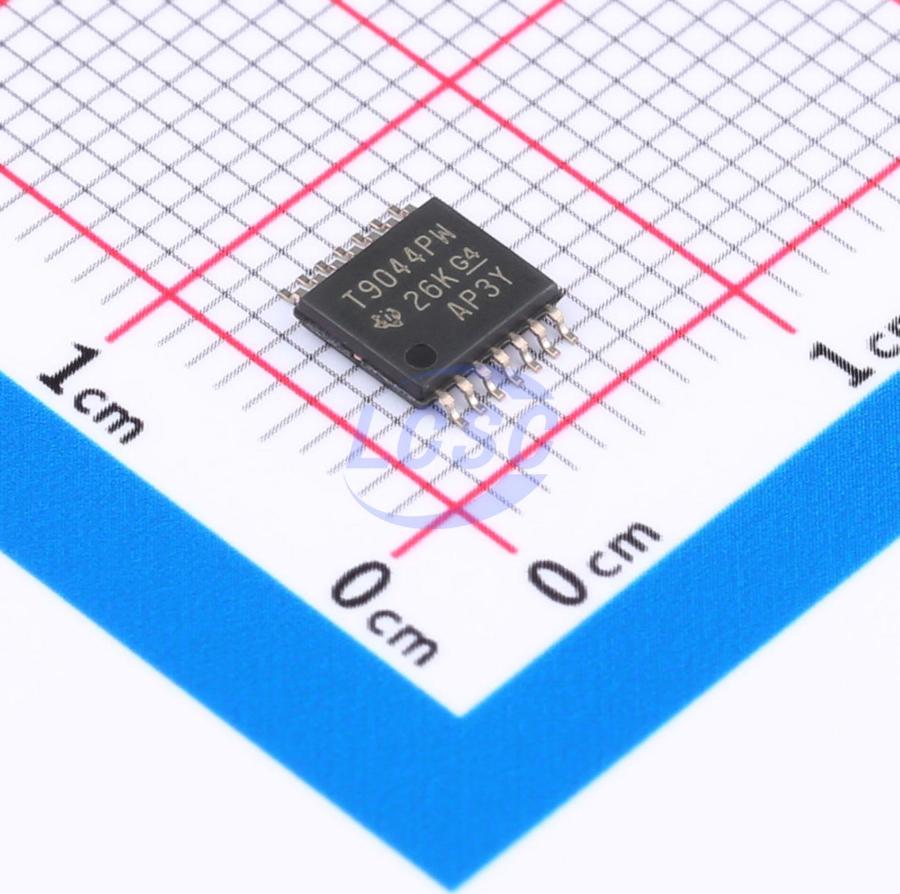

TLV9044IPWR

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14

TSSOP-14ROHS3 CompliantActive

Ultra-low voltage, micropower RRIO amplifier suitable for power-sensitive applications

Manufacturer: TI
Manufacturer part #: TLV9044IPWR
Store part #: C2871860
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C2871860

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹343.74	₹343.74
10+	₹302.68	₹3,026.80
30+	₹281.60	₹8,448.00
100+	₹253.57	₹25,357.00
500+	₹243.35	₹1,21,675.00
1,000+	₹239.01	₹2,39,010.00

Quantity (min 1)

1 × ₹343.74

₹343.74

excl. GST

₹405.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TLV9044IPWR

₹343.74 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 600uV
Slew Rate: 200V/ms
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 77dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 800nV/℃
Quiescent Current: 10uA
Gain Bandwidth Product: 350kHz
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 66nV/√Hz@1kHz
Dual Supply: -2.75V~-600mV;600mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.2V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.108 g
