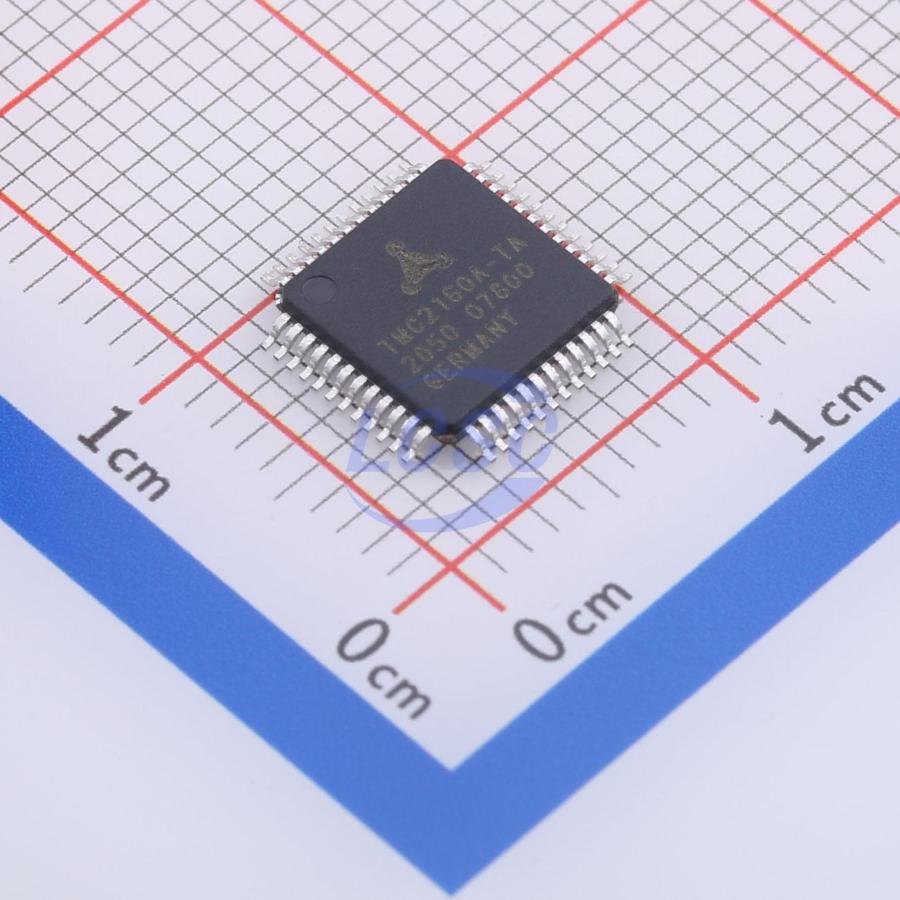

TMC2160A-TA-T
TQFP-48-EP(7x7) Motor Drivers, Controllers RoHS
POWER DRIVER FOR STEPPER MOTORS
- Manufacturer
- ADI/TRINAMIC
- Manufacturer part #
- TMC2160A-TA-T
- Store part #
- C465948
- Package / case
- TQFP-48-EP(7x7)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,850 in stock
#C465948
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹762.43 | ₹762.43 |
| 10+ | ₹683.69 | ₹6,836.90 |
| 30+ | ₹643.44 | ₹19,303.20 |
| 100+ | ₹520.11 | ₹52,011.00 |
| 500+ | ₹500.74 | ₹2,50,370.00 |
| 1,000+ | ₹492.49 | ₹4,92,490.00 |
1 × ₹762.43
₹762.43
excl. GST
₹899.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TMC2160A-TA-T
₹762.43 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Features
- Motor step-out prevention function;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- No
- Interface
- SPI;STEP/DIR
- Step Resolution
- 256
- Control Voltage
- 3.3V~5V
- Motor Drive Voltage(Vm)
- 8V~60V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.441 g
Overview
The TMC2160 / TMC2160A is a high- power stepper motor driver IC with SPI interface. It features industries' most advanced stepper motor driver with simple Step / Direction interface. Using external transistors, highly dynamic, high torque drives can be realized. Based on TRINAMICs sophisticated SpreadCycle and StealthChop choppers, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions. The fully compatible TMC5160 offers an additional motion controller to make stepper motor control even easier.
Applications
- Robotics & Industrial Drives
- Textile, Sewing Machines
- Packing Machines
- Factory & Lab Automation
- High- speed 3D Printers
- Liquid Handling
- Medical
- Office Automation
- CCTV
- ATM, Cash Recycler
- Pumps and Valves
Key features
- 2- phase stepper motors up to 20A coil current (external MOSFETs)
- Step/Dir Interface with microstep interpolation
- MicroPlyer™
- Voltage Range 8 ... 60V DC
- SPI Interface
- Highest Resolution 256 microsteps per full step
- StealthChop™ for quiet operation and smooth motion
- Resonance Damping for mid- range resonances
- SpreadCycle™ highly dynamic motor control chopper
- DcStep™ load dependent speed control
- StallGuard™ high precision sensorless motor load detection
- CoolStep™ current control for energy savings up to 75%
- Passive Braking and freewheeling mode
- Full Protection & Diagnostics
- Compact Size 7x7mm² (body) TQFP48 package
