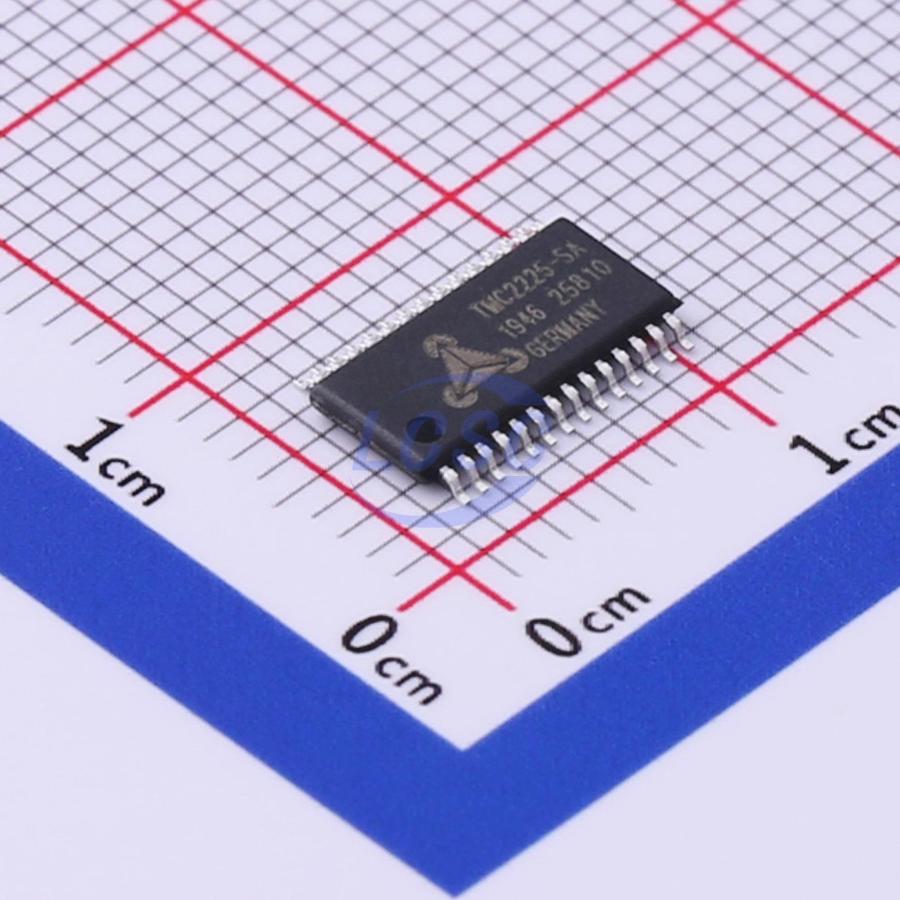

TMC2225-SA-T
HTSSOP-28 Motor Drivers, Controllers RoHS
Step/Dir Driver for Two-Phase Bipolar Stepper Motors
- Manufacturer
- ADI/TRINAMIC
- Manufacturer part #
- TMC2225-SA-T
- Store part #
- C516358
- Package / case
- HTSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,264 in stock
#C516358
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹400.25 | ₹400.25 |
| 10+ | ₹344.56 | ₹3,445.60 |
| 30+ | ₹309.54 | ₹9,286.20 |
| 100+ | ₹252.77 | ₹25,277.00 |
| 500+ | ₹236.67 | ₹1,18,335.00 |
| 1,000+ | ₹229.71 | ₹2,29,710.00 |
1 × ₹400.25
₹400.25
excl. GST
₹472.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TMC2225-SA-T
₹400.25 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Features
- Motor step-out prevention function;Built-in charge pump;Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Thermal warning;Under-voltage lockout
- Technology
- Yes
- Interface
- STEP/DIR;UART
- Operating Temperature
- -40℃~+125℃
- Output Current
- 2A
- Step Resolution
- 4;8;16;32;256
- Control Voltage
- 3.3V~5V
- RDS(on)
- 570mΩ
- Motor Drive Voltage(Vm)
- 4.75V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.246 g
Overview
The TMC2225 are ultra-silent motor driver ICs for two-phase stepper motors. Their pinning is compatible to a number of legacy drivers. Sophisticated StealthChop2 chopper ensures noiseless operation, maximum efficiency and best motor torque. Its fast current regulation and optional combination with SpreadCycle allow for highly dynamic motion. Integrated power-MOSFETs handle motor current up to 1.4A RMS. Protection and diagnostic features support robust and reliable operation. A simple to use UART interface opens up more tuning and control options. Application specific tuning can be stored to OTP memory. STEP/DIR stepper motor driver family upgrades designs to noiseless and most precise operation for costeffective and highly competitive solutions.
Applications
- Compatible Design Upgrade
- 3D Printers
- Printers, POS
- Office and home automation
- Textile, Sewing Machines
- CCTV, Security
- ATM, Cash recycler
- HVAC
Key features
- 2-phase stepper motors up to 2A coil current (peak)
- STEP/DIR Interface with 4, 8, 16 or 32 microstep pin setting
- Smooth Running 256 microsteps by MicroPlyer interpolation
- StealthChop2 silent motor operation
- SpreadCycle highly dynamic motor control chopper
- Pin Selection for chopper scheme
- Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
- Voltage Range 4.75… 36V DC
- Automatic Standby current reduction (option)
- Internal Sense Resistor option (no sense resistors required)
- Passive Braking and Freewheeling
- Single Wire UART & OTP for advanced configuration options
- Integrated Pulse Generator for standalone motion
- Full Protection & Diagnostics
- HTSSOP package for best thermal resistance
