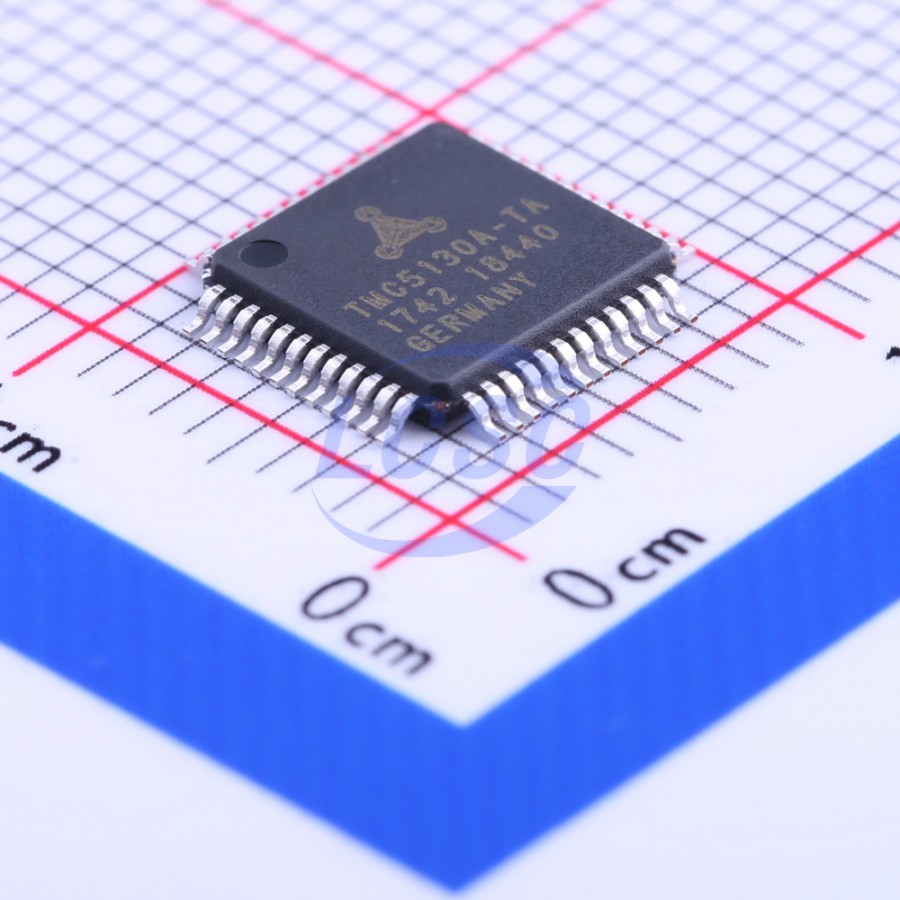

TMC5130A-TA-T
TQFP-48-EP(7x7) Motor Drivers, Controllers RoHS
POWER DRIVER FOR STEPPER MOTORS
- Manufacturer
- ADI/TRINAMIC
- Manufacturer part #
- TMC5130A-TA-T
- Store part #
- C188832
- Package / case
- TQFP-48-EP(7x7)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,055 in stock
#C188832
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹784.75 | ₹784.75 |
| 10+ | ₹701.96 | ₹7,019.60 |
| 30+ | ₹634.93 | ₹19,047.90 |
| 100+ | ₹583.69 | ₹58,369.00 |
1 × ₹784.75
₹784.75
excl. GST
₹926.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TMC5130A-TA-T
₹784.75 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Features
- Motor step-out prevention function;Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Built-in charge pump
- Technology
- Yes
- Interface
- STEP/DIR;SPI;UART
- Step Resolution
- 256
- Output Current
- 2A
- Control Voltage
- 4.75V~46V
- Motor Drive Voltage(Vm)
- 4.75V~46V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
The TMC5130A is a high performance stepper motor controller and driver IC with serial communication interfaces. It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper motor driver. Based on TRINAMICs sophisticated stealthChop chopper, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions. The complete solution reduces learning curve to a minimum while giving best performance in class.
Applications
- Textile, Sewing Machines
- Factory Automation
- Lab Automation
- Liquid Handling
- Medical
- Office Automation
- CCTV, Security
- ATM, Cash recycler
- POS
- Pumps and Valves
- Heliostat Controller
Key features
- 2-phase stepper motors up to 2A coil current (2.5A peak)
- Motion Controller with sixPoint™ ramp
- Step/Dir Interface with microstep interpolation microPlyer™
- Voltage Range 4.75… 46V DC
- SPI & Single Wire UART
- Encoder Interface and 2x Ref.-Switch Input
- Highest Resolution 256 microsteps per full step
- stealthChop™ for extremely quiet operation and smooth motion
- spreadCycle™ highly dynamic motor control chopper
- dcStep™ load dependent speed control
- stallGuard2™ high precision sensorless motor load detection
- coolStep™ current control for energy savings up to 75%
- Integrated Current Sense Option
- Passive Braking and freewheeling mode
- Full Protection & Diagnostics
- Compact Size 9x9mm² TQFP48 package
