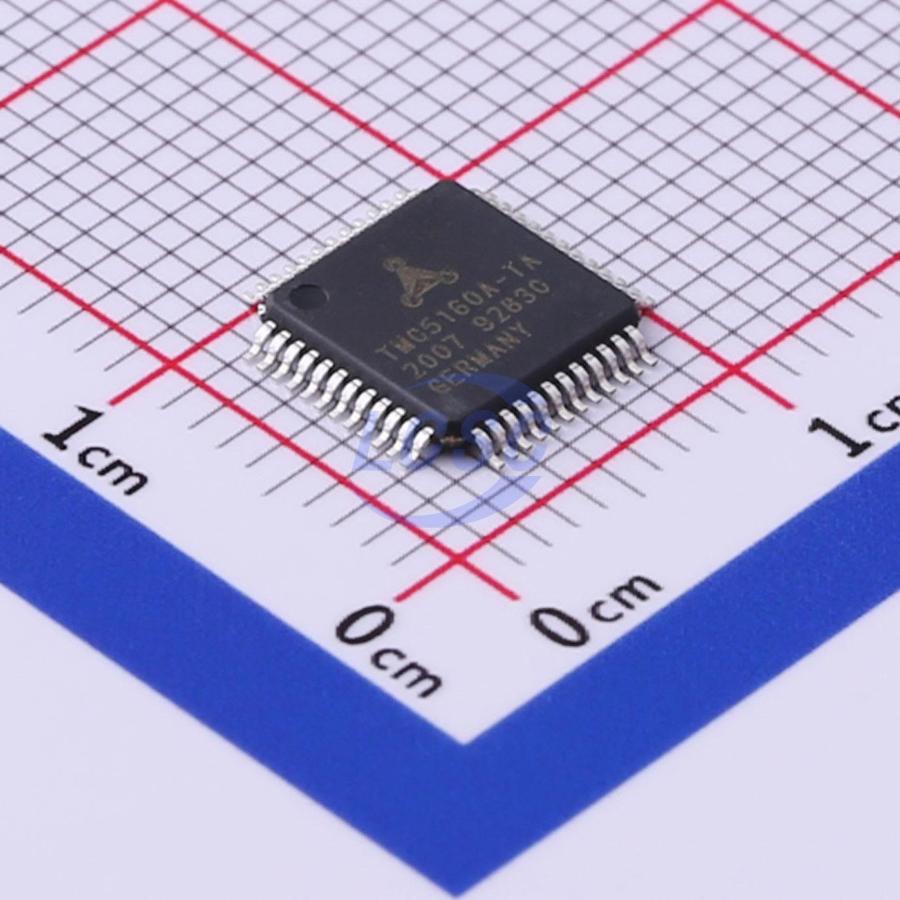

TMC5160A-TA-T
TQFP-48-EP(7x7) Motor Drivers, Controllers RoHS
Universal high voltage controller/driver for two-phase bipolar stepper motor
- Manufacturer
- ADI/TRINAMIC
- Manufacturer part #
- TMC5160A-TA-T
- Store part #
- C516354
- Package / case
- TQFP-48-EP(7x7)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,784 in stock
#C516354
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹774.75 | ₹774.75 |
| 10+ | ₹684.96 | ₹6,849.60 |
| 30+ | ₹627.55 | ₹18,826.50 |
| 100+ | ₹571.88 | ₹57,188.00 |
1 × ₹774.75
₹774.75
excl. GST
₹914.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TMC5160A-TA-T
₹774.75 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Features
- Motor step-out prevention function;Over temperature protection;Short-Circuit Protection;Built-in charge pump;Dead-time / shoot-through protection
- Technology
- No
- Interface
- SPI;UART;STEP/DIR
- Operating Temperature
- -40℃~+125℃
- Step Resolution
- 256
- Output Current
- 20A
- Control Voltage
- 3.3V~5V
- Motor Drive Voltage(Vm)
- 8V~60V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The TMC5160 / TMC5160A is a high-power stepper motor controller and driver IC with serial communication interfaces. It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper motor driver. Using external transistors, highly dynamic, high torque drives can be realized. Based on TRINAMICs sophisticated SpreadCycle and StealthChop choppers, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions. The complete solution reduces learning curve to a minimum while giving best performance in class.
Applications
- Robotics & Industrial Drives
- Textile, Sewing Machines
- Packing Machines
- Factory & Lab Automation
- High-speed 3D Printers
- Liquid Handling
- Medical
- Office Automation
- CCTV
- ATM, Cash Recycler
- Pumps and Valves
Key features
- 2-phase stepper motors up to 20A coil current (external MOSFETs)
- Motion Controller with SixPoint™ ramp
- Step/Dir Interface with microstep interpolation MicroPlyer™
- Voltage Range 8 … 60V DC
- SPI & Single Wire UART
- Encoder Interface and 2x Ref.-Switch Input
- Highest Resolution 256 microsteps per full step
- StealthChop2™ for quiet operation and smooth motion
- Resonance Dampening for mid-range resonances
- spreadCycle™ highly dynamic motor control chopper
- dcStep™ load dependent speed control
- StallGuard2™ high precision sensorless motor load detection
- CoolStep™ current control for energy savings up to 75%
- Passive Braking and freewheeling mode
- Full Protection & Diagnostics
- Compact Size 7×7mm² (body) TQFP48 package / 8×8mm² QFN
