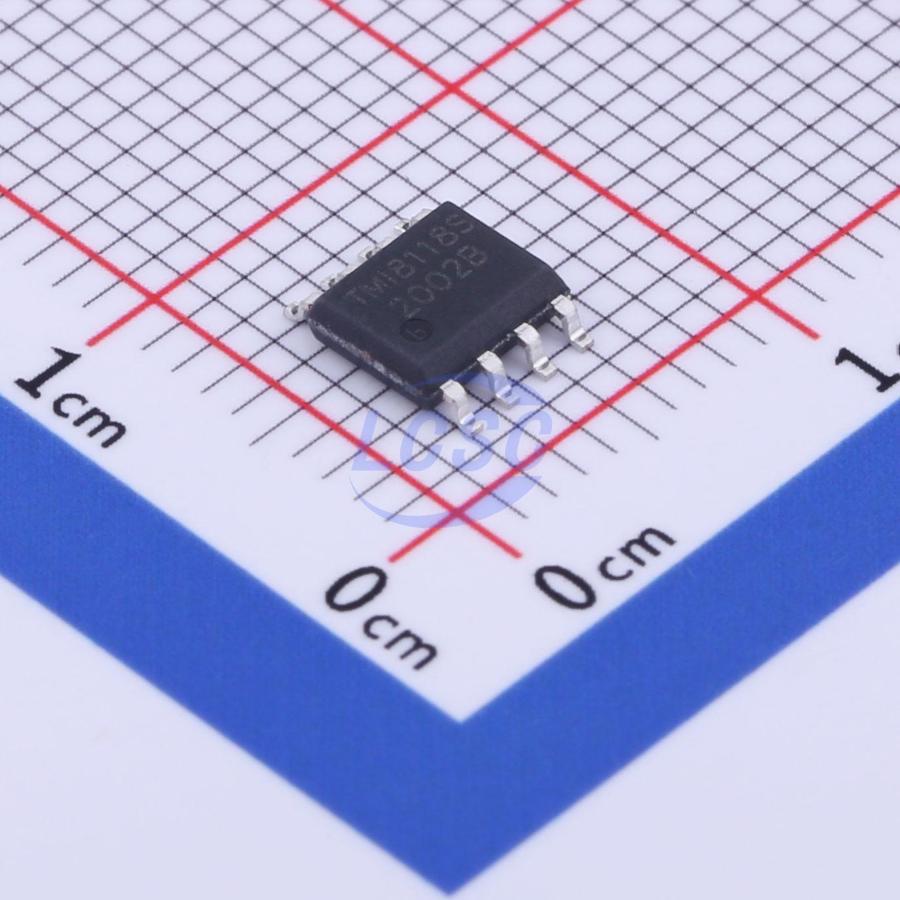

TMI8118S
1.6V~7.2V SOP-8 Motor Drivers, Controllers RoHS
7V single-channel DC motor driver chip
- Manufacturer
- TMI
- Manufacturer part #
- TMI8118S
- Store part #
- C842821
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,110 in stock
#C842821
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.77 | ₹77.70 |
| 100+ | ₹6.19 | ₹619.00 |
| 300+ | ₹5.41 | ₹1,623.00 |
| 3,000+ | ₹4.83 | ₹14,490.00 |
| 6,000+ | ₹4.35 | ₹26,100.00 |
| 9,000+ | ₹4.11 | ₹36,990.00 |
10 × ₹7.77
₹77.70
excl. GST
₹91.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI8118S
₹77.70 for 10 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.6V~7.2V
- Operating Temperature
- -30℃~+85℃
- Supply Current (Iq)
- 100nA
- Peak Current
- 2A
- RDS(on)
- 530mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.115 g
Overview
TMI8118/8118S is a DC motor driver IC designed for systems operating at low input voltages, featuring a single-channel low on-resistance. It supports four motor control functions: forward rotation, reverse rotation, stop, and brake. TMI8118/8118S integrates thermal protection: when the chip temperature rises sharply, the internal circuit shuts down the built-in power switches to cut off the load current. TMI8118S comes in an SOP8 package, while TMI8118 comes in a SOT23-6 package. Both are RoHS compliant with 100% lead-free lead frames.
Applications
- Electric toys
- Smart locks, padlocks
- Vehicle-mounted clamps
- DC brushed motor drive
Key features
- Operating voltage range: 1.6V - 7.2V
- Ultra-low standby current: 0.1μA typ.
- Low RDS(ON): 0.53Ω SOP8 package (TMI8118S), 0.55Ω SOT23-6 package (TMI8118)
- Integrated overtemperature protection
- Package: SOP8 (TMI8118S), SOT23-6 (TMI8118)
