TMI8120

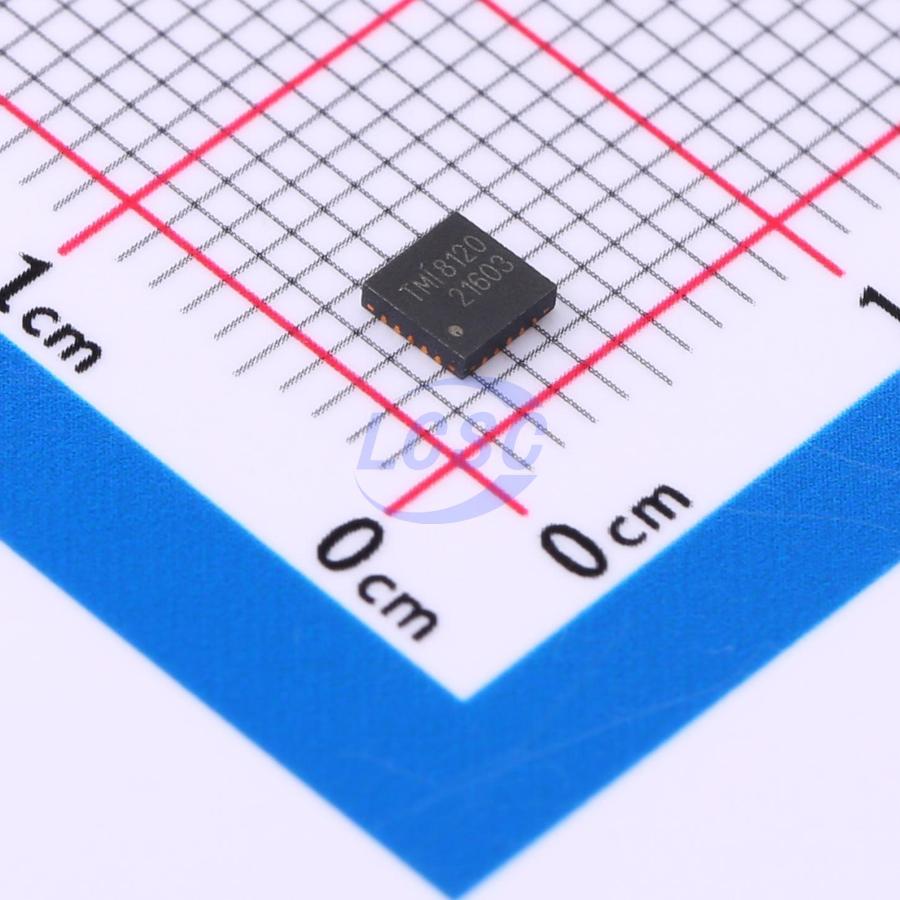

QFN-20-EP(3x3) Motor Drivers, Controllers RoHS
Dual H-Bridge Motor Driver
- Manufacturer
- TMI
- Manufacturer part #
- TMI8120
- Store part #
- C5259218
- Package / case
- QFN-20-EP(3x3)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,439 in stock
#C5259218
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹24.65 | ₹24.65 |
| 10+ | ₹21.67 | ₹216.70 |
| 30+ | ₹20.40 | ₹612.00 |
| 100+ | ₹18.81 | ₹1,881.00 |
| 500+ | ₹18.10 | ₹9,050.00 |
| 1,000+ | ₹17.68 | ₹17,680.00 |
1 × ₹24.65
₹24.65
excl. GST
₹29.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI8120
₹24.65 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Over temperature protection
- Technology
- Yes
- Interface
- Parallel
- Operating Temperature
- -30℃~+85℃
- Step Resolution
- 1
- Output Current
- 2A
- Control Voltage
- 2.4V~7.2V
- RDS(on)
- 550mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.085 g
Overview
The TMI8120 device is the dual H-bridge motor driver for system operating at low input voltage. Two sets of logic inputs control the H-bridge drivers, which drives a bipolar stepper motor or two DC motors. TMI8120 is capable of driving motors with up to 2A peak current. The inputs can be pulse width modulated (PWM) to control motor speed. Setting all inputs low enter a low standby current statue. The TMI8120 device integrates temperature protection function, when the chip temperature rises sharply, the internal circuit turns off the built-in power switch tube, cutting off the load current. The package form of TMI8120 is QFN3x3-20, which complies with ROHS specifications, and the lead frame is 100% lead-free.
Applications
- Printers
- Appliances
- Industrial Equipment
- Limelight
- Other Mechatronics Applications
Key features
- Dual H-Bridge Motor Driver
- Drives Two DC Motors, One Stepper Motor or Other Loads
- 2.4V to 7.2V Operating Voltage
- 2A Peak Current Drive
- Parallel PWM Control Interface
- Low Standby Current: 0.1μA Typ.
- Low On Resistance: 0.55Ω Per Channel
- Thermal Shutdown (TSD)
- QFN3x3-20 Package and Footprint
