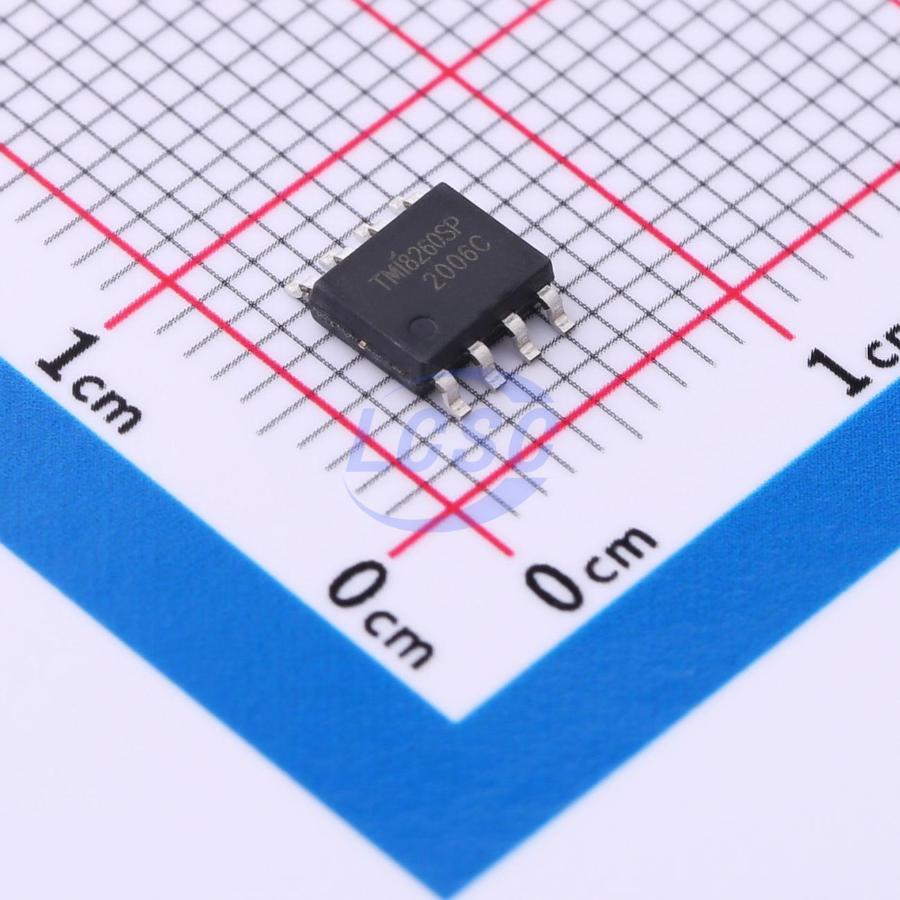

TMI8260SP
3V~18V SOP-8 Motor Drivers, Controllers RoHS
H-Bridge DC Motor Driver
- Manufacturer
- TMI
- Manufacturer part #
- TMI8260SP
- Store part #
- C2985070
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,410 in stock
#C2985070
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.30 | ₹266.50 |
| 50+ | ₹42.20 | ₹2,110.00 |
| 150+ | ₹37.64 | ₹5,646.00 |
| 500+ | ₹31.77 | ₹15,885.00 |
| 3,000+ | ₹29.16 | ₹87,480.00 |
| 6,000+ | ₹27.41 | ₹1,64,460.00 |
5 × ₹53.30
₹266.50
excl. GST
₹314.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI8260SP
₹266.50 for 5 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 3V~18V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 600uA
- Output Current
- 4A
- Peak Current
- 8A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
The TMI8260 is a DC bidirectional motor driver, suitable for medium and large current motors. The two logic input terminals(IN1/IN2) are used as the input of PWM control mode to control the direction of current flow through the H-bridge, and hence the direction of rotation of a DC motor. This circuit has good anti-interference, tiny standby current, ultra-low output internal resistance, using BCD process, strong withstand voltage, and strong reverse surge current capability to release inductive load. The package form of TMI8260SP is SOP8, and the package form for TMI8260DP is DIP8, both comply with ROHS specifications, and the lead frame is 100% lead-free.
Applications
- Electronic locks
- Electric toys
- Massager
- Robots
Key features
- H-Bridge DC Motor Driver
- 3.0-V to 18-V Operating Supply Voltage Range
- Low Power Standby Mode
- High Output Current Capability
- SOP8: 4.0-A DC, 8-A Peak
- DIP8: 5.5-A DC, 13-A Peak
- Rdson (HS+LS):
- SOP8: 90~95 m
- DIP8: 80~85m
- Protection Features
- VCC Undervoltage Lockout (UVLO)
- Overcurrent Protection (OCP)
- Thermal Shutdown (TSD)
- Integrated Fast Stop Function
- Package and Footprint:
- SOP8 (TMI8260SP)
- DIP8 (TMI8260DP)
