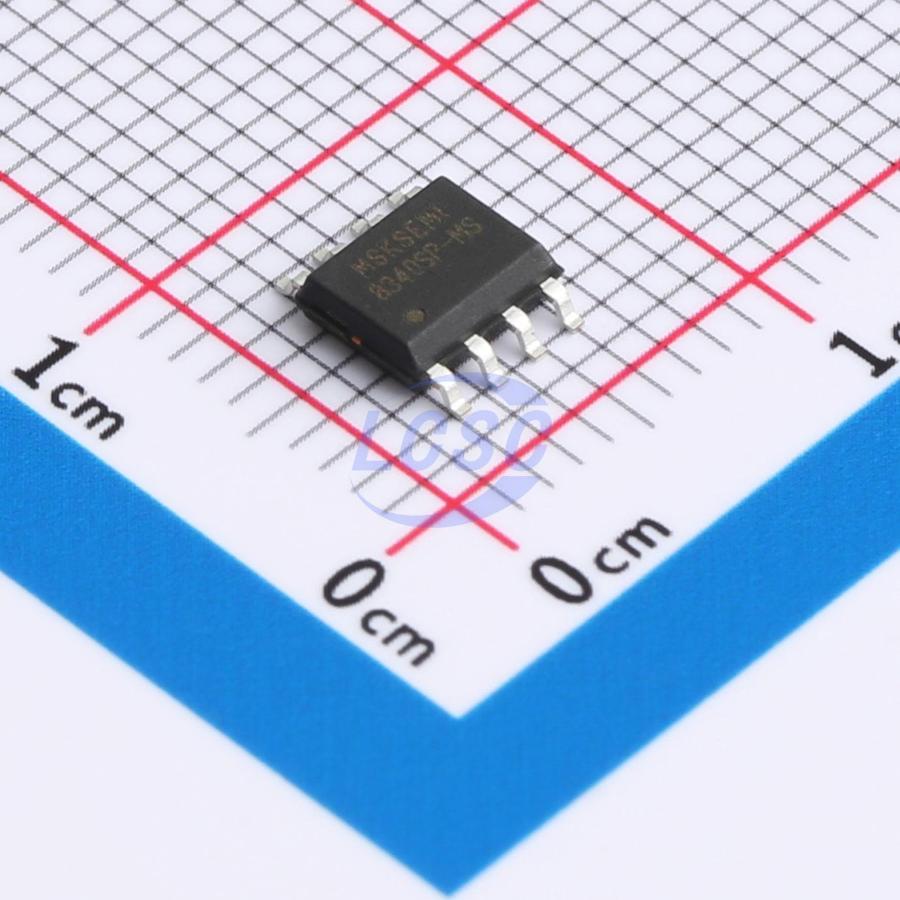

TMI8340SP-MS
3V~30V SOP-8 Motor Drivers, Controllers
DC bidirectional motor drive circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TMI8340SP-MS
- Store part #
- C22462554
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,663 in stock
#C22462554
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.31 | ₹73.31 |
| 10+ | ₹59.16 | ₹591.60 |
| 30+ | ₹51.99 | ₹1,559.70 |
| 100+ | ₹45.03 | ₹4,503.00 |
| 500+ | ₹39.37 | ₹19,685.00 |
| 1,000+ | ₹37.20 | ₹37,200.00 |
1 × ₹73.31
₹73.31
excl. GST
₹86.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TMI8340SP-MS
₹73.31 for 1 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 3V~30V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Current
- 6A
- RDS(on)
- 80mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.127 g
Overview
TMI8340SP-MS is a DC bidirectional motor driver IC, suitable for toy motor driving, automatic valve motor driving, electromagnetic door lock driving, and similar applications. It features two logic input terminals to control motor forward, reverse, and braking. The IC offers excellent noise immunity, ultra-low standby current, and low output on-resistance. Additionally, built-in diodes are integrated to dissipate reverse surge current from inductive loads. The TMI8340SP-MS is available in an SOP-8 package, compliant with RoHS standards, with 100% lead-free lead frame.
Applications
- Electronic locks
- Toys
- Wireless charging robots
Key features
- Single brushed DC motor drive
- Ultra-low standby current, <1uA
- Low RDS(ON) resistance
- Maximum continuous output current 6.0A
- Operating voltage range: 3.0V - 30V
- Emergency stop function
- Thermal shutdown protection
- Overcurrent limiting and short-circuit protection
- Package: SOP8
