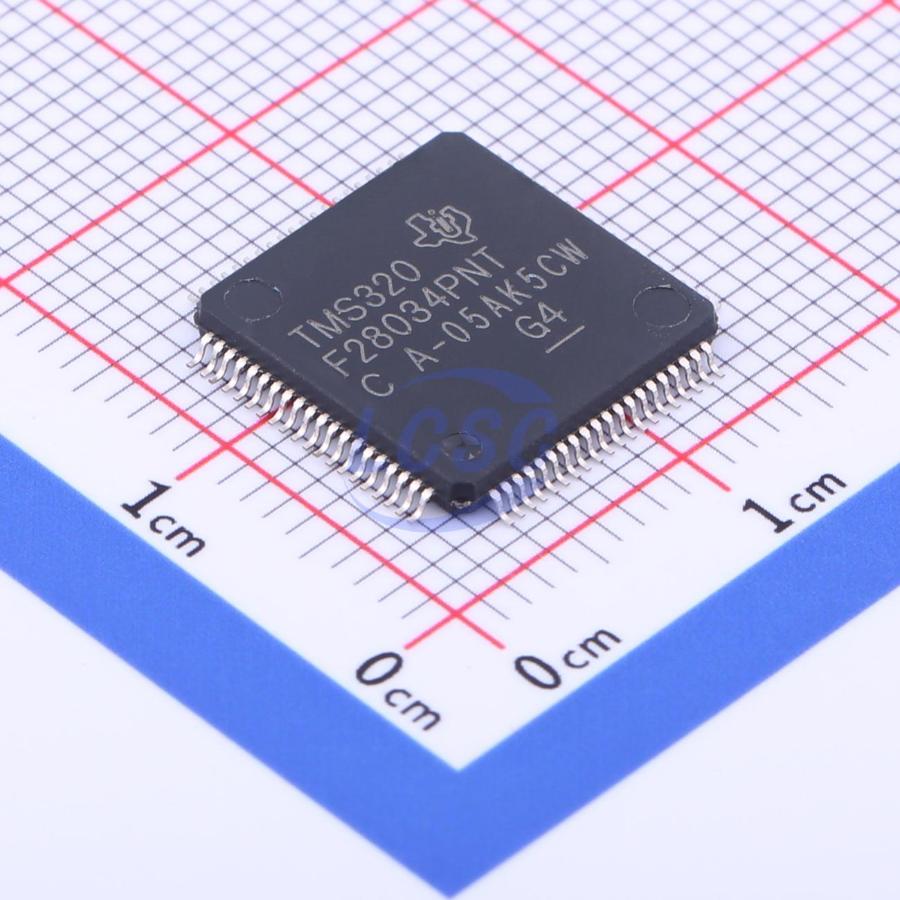

TMS320F28034PNT

The F2803x Piccolo family of microcontrollers provides the power of the C28xTM core and Control Law Accelerator (CLA) coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, as well as providing a high level of analog integration. An internal voltage regulator allows for single-rail operation. Enhancements have been made to the HRPWM module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.

Applications

• Smart Grid and Power Line Communications
• White Goods
• Switch Mode Power Supplies (SMPSs)
• DC-DC Multiple-Output Power Supplies
• Solar Micro Inverters and Converters
• Power Factor Correction
• Sewing and Textile Machines
• AC-DC Inverters

Key features

• High-Efficiency 32-Bit CPU (TMS320C28x) – 60 MHz (16.67-ns Cycle Time) – 16×16 and 32×32 MAC Operations – 16 x 16 Dual MAC – Harvard Bus Architecture – Atomic Operations – Fast Interrupt Response and Processing – Unified Memory Programming Model – Code-Efficient (in c/c++ and Assembly)
• Programmable Control Law Accelerator (CLA) – 32-Bit Floating-Point Math Accelerator – Executes Code Independently of the Main CPU
• Endianness: Little Endian
• JTAG Boundary Scan Support
• Low Cost for Both Device and System: – Single 3.3-V Supply – No Power Sequencing Requirement – Integrated Power-on Reset and Brown-out Reset – Low Power – No Analog Support Pins
• Clocking: – Two Internal Zero-pin Oscillators – On-Chip Crystal Oscillator/External Clock Input Dynamic PLL Ratio Changes Supported – Watchdog Timer Module – Missing Clock Detection Circuitry
• Up to 45 Individually Programmable, Multiplexed GPIO Pins With Input Filtering
• Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
• Three 32-Bit CPU Timers
• Independent 16-Bit Timer in Each ePWM Module
• On-Chip Memory – Flash, SARAM, OTP, Boot ROM Available
• Code-Security Module
• 128-Bit Security Key/Lock – Protects Secure Memory Blocks – Prevents Firmware Reverse Engineering
• Serial Port Peripherals – One SCI (UART) Module – Two SPI Modules – One Inter-Integrated-Circuit (I²C) Bus – One Local Interconnect Network (LIN) Bus – One Enhanced Controller Area Network (eCAN) Bus
• Enhanced Control Peripherals – Enhanced Pulse Width Modulator (ePWM) – High-Resolution PWM (HRPWM) Module – Enhanced Capture (eCAP) Module – High-Resolution Input Capture (HRCAP) Module – Enhanced Quadrature Encoder Pulse (eQEP) Module – Analog-to-Digital Converter (ADC) – On-Chip Temperature Sensor – Comparator
• Advanced Emulation Features – Analysis and Breakpoint Functions – Real-Time Debug via Hardware
• 2803x Packages – 56-Pin RSH Very Small Quad Flatpack (No Lead) (VQFN) – 64-Pin PAG Thin Quad Flatpack (TQFP) – 80-Pin PN Low-Profile Quad Flatpack (LQFP)
