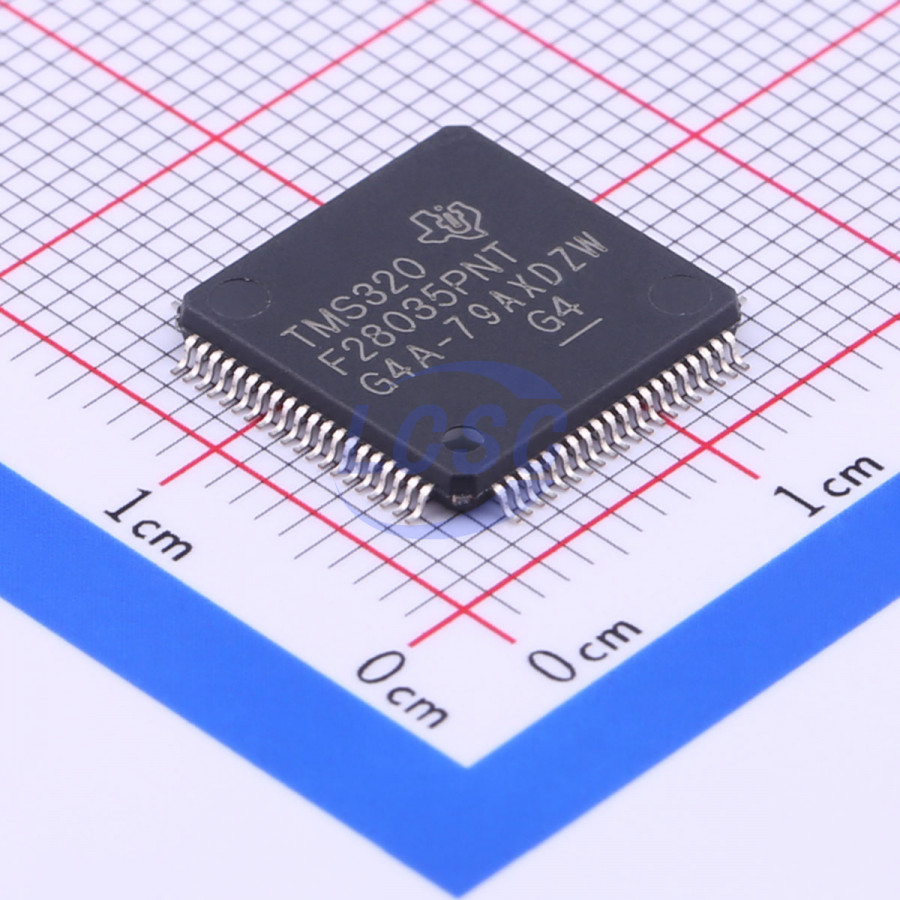

TMS320F28035PNT

The F2803x Piccolo™family of microcontrollers provides the power of the C28x core and Control Law Accelerator (CLA) coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also provides a high level of analog integration. An internal voltage regulator allows for single-rail operation. Enhancements have been made to the HRPWM to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full-scale range and supports ratio-metric V_REFHI/V_REFLO references. The ADC interface has been optimized for low overhead and latency.

Applications

• Smart Grid and Power Line Communications
• White Goods
• Switch Mode Power Supplies (SMPSs)
• DC-DC Multiple-Output Power Supplies
• Solar Micro Inverters and Converters
• Power Factor Correction
• Sewing and Textile Machines
• AC-DC Inverters

Key features

• High-Efficiency 32-Bit CPU (TMS320C28x) – 60 MHz (16.67-ns Cycle Time)
• 16x16 and 32x32 MAC Operations
• 16x16 Dual MAC
• Harvard Bus Architecture
• Atomic Operations
• Fast Interrupt Response and Processing
• Unified Memory Programming Model
• Code-Efficient (in C/C++ and Assembly)
• Programmable Control Law Accelerator (CLA)
• 32-Bit Floating-Point Math Accelerator
• Executes Code Independently of the Main CPU
• Endianness: Little Endian
• JTAG Boundary Scan Support
• IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
• Low Cost for Both Device and System
• Single 3.3-V Supply
• No Power Sequencing Requirement
• Integrated Power-on Reset and Brown-out Reset
• Low Power
• No Analog Support Pins
• Clocking
• Two Internal Zero-Pin Oscillators On-Chip Crystal Oscillator and External Clock Input
• Watchdog Timer Module
• Missing Clock Detection Circuitry
• Up to 45 Individually Programmable, Multiplexed GPIO Pins With Input Filtering
• Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
• Three 32-Bit CPU Timers
• Independent 16-Bit Timer in Each Enhanced Pulse Width Modulator (ePWM)
• On-Chip Memory
• Flash, SARAM, OTP, Boot ROM Available
• Code-Security Module
• 128-Bit Security Key and Lock
• Protects Secure Memory Blocks
• Prevents Firmware Reverse Engineering
• Serial Port Peripherals
• One Serial Communications Interface (SCI) Universal Asynchronous Receiver/Transmitter (UART) Module
• Two Serial Peripheral Interface (SPI) Modules
• One Inter-Integrated-Circuit (I2C) Module
• One Local Interconnect Network (LIN) Module
• One Enhanced Controller Area Network (eCAN) Module
• Enhanced Control Peripherals
• ePWM
• High-Resolution PWM (HRPWM)
• Enhanced Capture (eCAP) Module
• High-Resolution Input Capture (HRCAP) Module
• Enhanced Quadrature Encoder Pulse (eQEP) Module
• Analog-to-Digital Converter (ADC)
• On-Chip Temperature Sensor
• Comparator
• Advanced Emulation Features
• Analysis and Breakpoint Functions
• Real-Time Debug Through Hardware
• 2803x Packages
• 56-Pin RSH Very Thin Quad Flatpack (No Lead) (VQFN)
• 64-Pin PAG Thin Quad Flatpack (TQFP)
• 80-Pin PN Low-Profile Quad Flatpack (LQFP)
