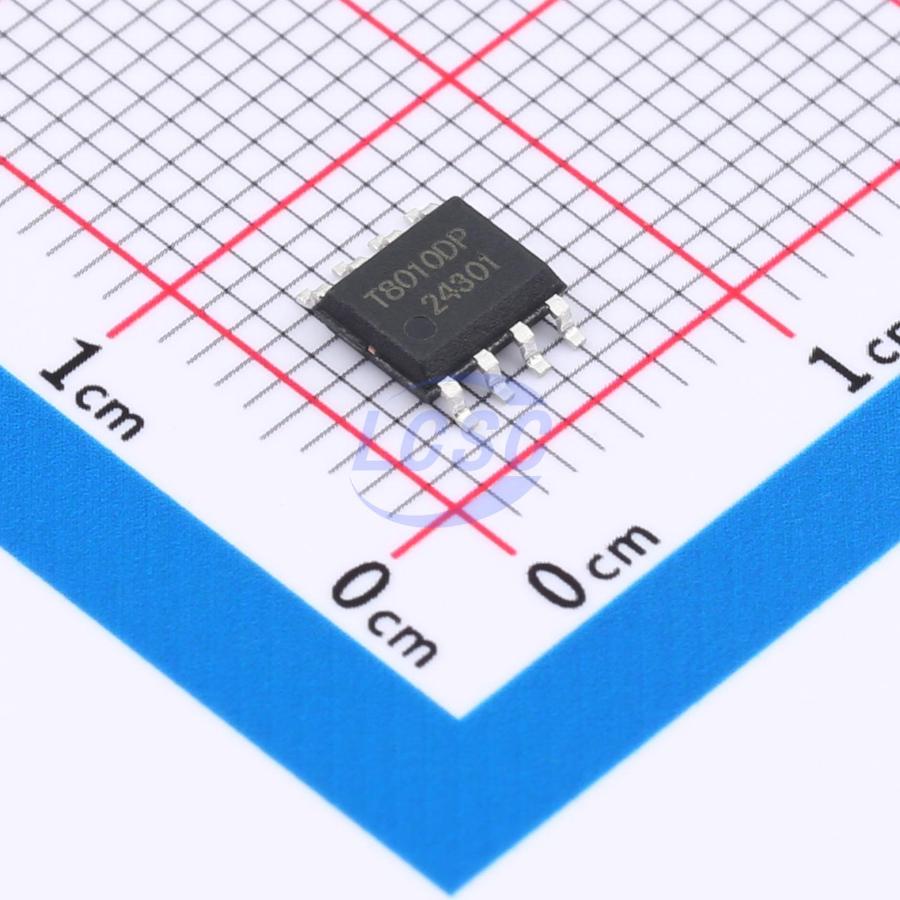

TMS8010DP-TR
2.5V~6V 10mA 1-Channel Class AB SOP-8 Audio Amplifiers RoHS
Low EMl, 3.2W Dual Mode Mono Audio Amplifier with NCN
- Manufacturer
- TMI
- Manufacturer part #
- TMS8010DP-TR
- Store part #
- C29779846
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C29779846
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.77 | ₹98.85 |
| 50+ | ₹17.49 | ₹874.50 |
| 150+ | ₹16.52 | ₹2,478.00 |
| 500+ | ₹15.31 | ₹7,655.00 |
| 3,000+ | ₹14.76 | ₹44,280.00 |
| 6,000+ | ₹14.45 | ₹86,700.00 |
5 × ₹19.77
₹98.85
excl. GST
₹116.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMS8010DP-TR
₹98.85 for 5 + GST
Specifications
- Voltage - Supply
- 2.5V~6V
- Quiescent Current
- 10mA
- Features
- Filterless architecture;Built-in audio processing;Enable/shutdown function;ESD protection;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.035%
- Operating Temperature
- -25℃~+85℃
- Signal-to-Noise Ratio
- 95dB
- Number of Inputs
- 1 Pair Differential Inputs
- Speaker Channels
- 1-Channel
- Efficiency
- 90%;93%
- Output Power
- 3.2W×1@4Ω;1.75W×1@8Ω;2.6W×1@4Ω;1.5W×1@8Ω;1.75W×1@4Ω;0.95W×1@8Ω;1.50W×1@4Ω;0.8W×1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- -65dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.178 g
Overview
The TMS8010 is a mono filter-less class-D amplifier with high SNR and differential input that eliminate noise. With an alternative option between Class-D and Class-AB output, which makes the device very ideal for efficiency-EMI compatible applications. Features like higher than 90% efficiency and small PCB area make the TMS8010 class-D amplifier ideal for portable devices. The filter-less architecture requires no external output filter, fewer external components, less PCB area and lower system costs, and simplifies application design.
Applications
- Speakers
- Shared-Bikes
- POS
- Telephone Watches
- IPCs
- Portable Devices
Key features
- Supply Voltage from 2.5V to 6.0V
- 3.2W@10% THD Output with a 4Ω Load at 5V Supply
- High Efficiency Up to 90% @1W with an 8Ω Speaker
- None Clipping at Large Signal
- Support Class AB Output
- Shutdown Current <1μA
- Superior Low Noise without Input
- EMI Suppressing by Soft-Driving
- Short Circuit Protection
- Thermal Shutdown
- Available in Space Saving SOP8 and MSOP8 Pb-Free Package
