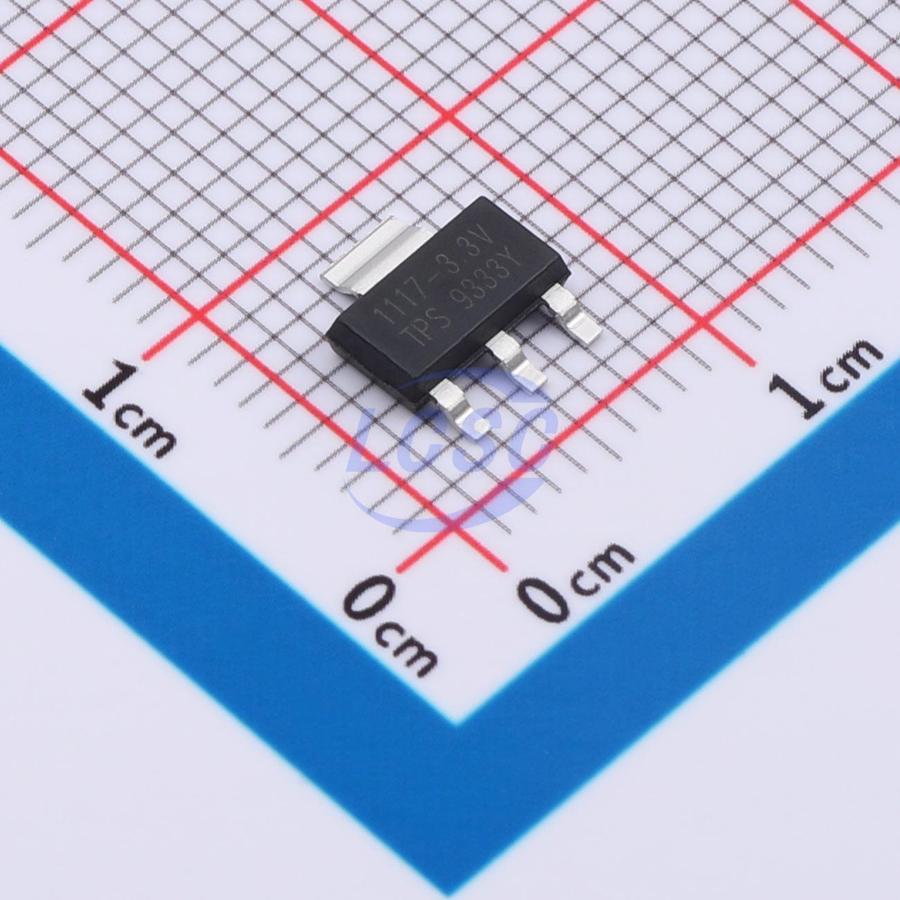

TP1117-3.3Y3
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
1A LOW DROPOUT LINEAR REGULATOR
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP1117-3.3Y3
- Store part #
- C18212697
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,530 in stock
#C18212697
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.83 | ₹78.30 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.50 | ₹1,650.00 |
| 1,000+ | ₹4.92 | ₹4,920.00 |
| 4,000+ | ₹4.46 | ₹17,840.00 |
| 8,000+ | ₹4.22 | ₹33,760.00 |
10 × ₹7.83
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP1117-3.3Y3
₹78.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -50℃~+140℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.184 g
Overview
Applications
- High-efficiency linear regulator
- Post-regulator for switching DC/DC converters
- Power management for M/B and graphics cards
- 2.85V version for SCSI
- 2 active terminations
- Battery charger
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
Key features
- Output current up to 1A
- 3-terminal adjustable or fixed output
- Maximum input voltage: 18V
- Fast transient response
- Current limiting, safe operating area, and thermal shutdown protection
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature: -50°C to +140°C
- Available in SOT223-3, TO-252, SOT89-3 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-3.3#C18212698TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 1,04,540 | ₹7.06 · 1,04,540 in stock | View |
 | LD1117-3.3#C18212699TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 9,360 | ₹6.43 · 9,360 in stock | View |
 | AMS1117-3.3V#C20611856TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 10,420 | ₹6.65 · 10,420 in stock | View |
 | TPTLV1117LV33DCYR#C52146079TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 1,570 | ₹6.42 · 1,570 in stock | View |
 | TPSPX1117M3-L-3-3#C52146083TECH PUBLIC · SOT-223-3 | TECH PUBLIC | SOT-223-3 | 4,440 | ₹6.43 · 4,440 in stock | View |
