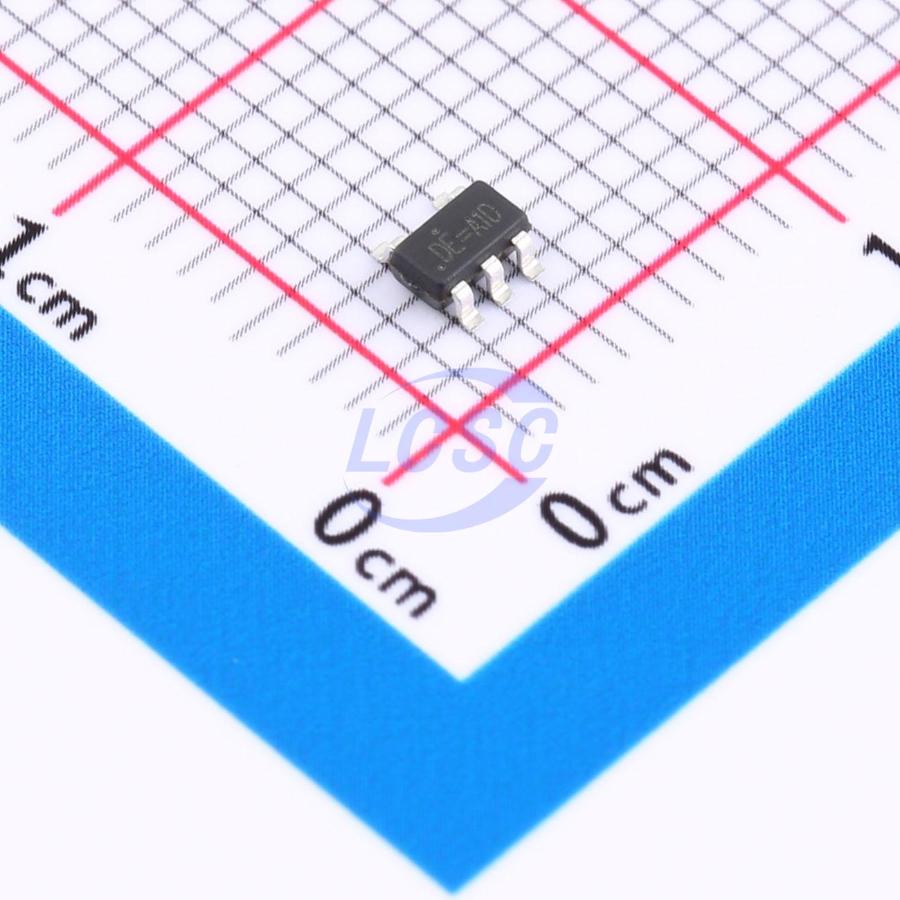

TECH PUBLICDatasheet (PDF)
TP131C33S5
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP131C33S5
- Store part #
- C2835424
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,155 in stock
#C2835424
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.15 | ₹60.75 |
| 50+ | ₹9.75 | ₹487.50 |
| 150+ | ₹8.56 | ₹1,284.00 |
| 500+ | ₹7.66 | ₹3,830.00 |
| 3,000+ | ₹6.23 | ₹18,690.00 |
| 6,000+ | ₹5.86 | ₹35,160.00 |
5 × ₹12.15
₹60.75
excl. GST
₹71.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP131C33S5
₹60.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The TP131C is a high-performance, 300mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TP131C is available in 5pin SOT23-5 Package. The output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Applications
- CDM/GSM mobile phone
- PDAS
- MP3 Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 70dB@1KHz
- < 1uA current at shutdown mode
- Output current: 300mA(Typ.)
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP2019-3.3YN5#C2835423TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | On request | ₹10.04 · 0 in stock | View |
 | TPRT9193-33GB#C2835425TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 9,160 | ₹9.83 · 9,160 in stock | View |
 | TPXC6219B332MR#C2841430TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,780 | ₹9.74 · 3,780 in stock | View |
 | XC6219B332MR#C2940621TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,170 | ₹8.30 · 1,170 in stock | View |
 | TPBL9198-33BAPRN#C7603380TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,040 | ₹8.32 · 3,040 in stock | View |
