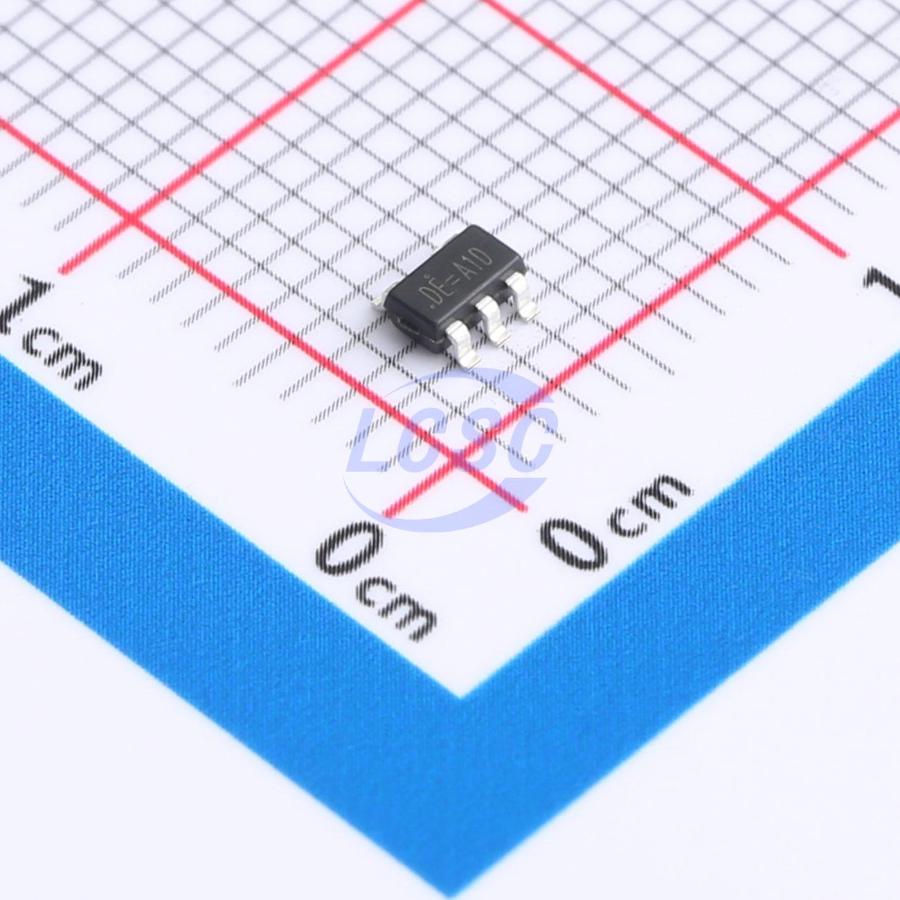

TPBL9198-33BAPRN
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA, Ultra-Low Noise, CMOS LDO Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPBL9198-33BAPRN
- Store part #
- C7603380
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,040 in stock
#C7603380
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.32 | ₹83.20 |
| 100+ | ₹6.60 | ₹660.00 |
| 300+ | ₹5.74 | ₹1,722.00 |
| 3,000+ | ₹5.09 | ₹15,270.00 |
| 6,000+ | ₹4.58 | ₹27,480.00 |
| 9,000+ | ₹4.31 | ₹38,790.00 |
10 × ₹8.32
₹83.20
excl. GST
₹98.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPBL9198-33BAPRN
₹83.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
TPBL9198 is a high-performance, 300mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TPBL9198 is available in 5 pin SOT23-5, Package. the output standards of 1.2V 1.5V, 1.8V, 2.5V, 2.8V, 2.9V, 3.0V, 3.3V, 3.6V
Applications
- CDM/GSM mobile phone
- PDAS
- MP3 Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 70dB@1KHz
- < 1uA current at shutdown mode
- Output current: 300mA(Typ.)
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP2019-3.3YN5#C2835423TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,350 | ₹10.04 · 2,350 in stock | View |
 | TP131C33S5#C2835424TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,550 | ₹12.15 · 2,550 in stock | View |
 | TPRT9193-33GB#C2835425TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 8,950 | ₹9.82 · 8,950 in stock | View |
 | TPXC6219B332MR#C2841430TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,780 | ₹9.74 · 3,780 in stock | View |
 | XC6219B332MR#C2940621TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 19,310 | ₹6.17 · 19,310 in stock | View |
