TECH PUBLICDatasheet (PDF)

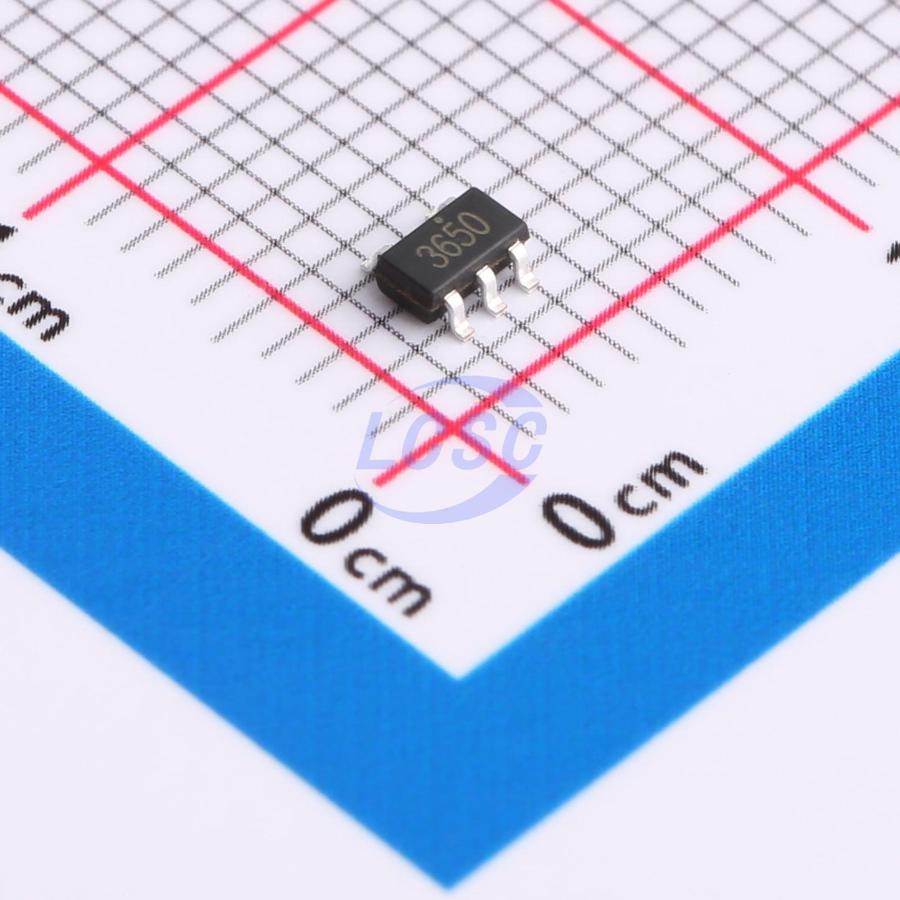

TP181C50S5
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
Ultra-low power consumption, low dropout, high current linear regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP181C50S5
- Store part #
- C2827538
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,570 in stock
#C2827538
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.77 | ₹113.85 |
| 50+ | ₹17.83 | ₹891.50 |
| 150+ | ₹15.73 | ₹2,359.50 |
| 500+ | ₹13.08 | ₹6,540.00 |
| 3,000+ | ₹11.92 | ₹35,760.00 |
| 6,000+ | ₹11.22 | ₹67,320.00 |
5 × ₹22.77
₹113.85
excl. GST
₹134.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP181C50S5
₹113.85 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 18V
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TP181C series are high-precision, low-power, low-dropout, 3-terminal CMOS step-down voltage regulators. Maximum input voltage up to 18V with 300mA output current. The TP181C series features very low quiescent current (0.8μA Typ.), built-in control functions, current limiting circuit, foldback short-circuit protection, and enable-controlled automatic output capacitor discharge.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- Maximum output current: 300mA
- Input-output voltage dropout: 160mV@100mA
- Maximum input voltage: 18V
- Output voltage range: 1.5V - 5.0V
- Low quiescent current: 0.8μA Typ
- Protection features: overcurrent protection, short-circuit protection
- Output capacitor: compatible with ceramic capacitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP181C50S5-1#C5311012TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 490 | ₹21.62 · 490 in stock | View |
 | TP181C50S5-A#C2841399TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,265 | ₹17.54 · 3,265 in stock | View |
 | TPME6214C50M5G#C22435163TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,945 | ₹9.64 · 5,945 in stock | View |
 | TPLP2992IM5X-5.0#C5370981TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,230 | ₹22.04 · 2,230 in stock | View |
 | TPNCP718ASN500T1G#C5370983TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,465 | ₹22.99 · 4,465 in stock | View |
