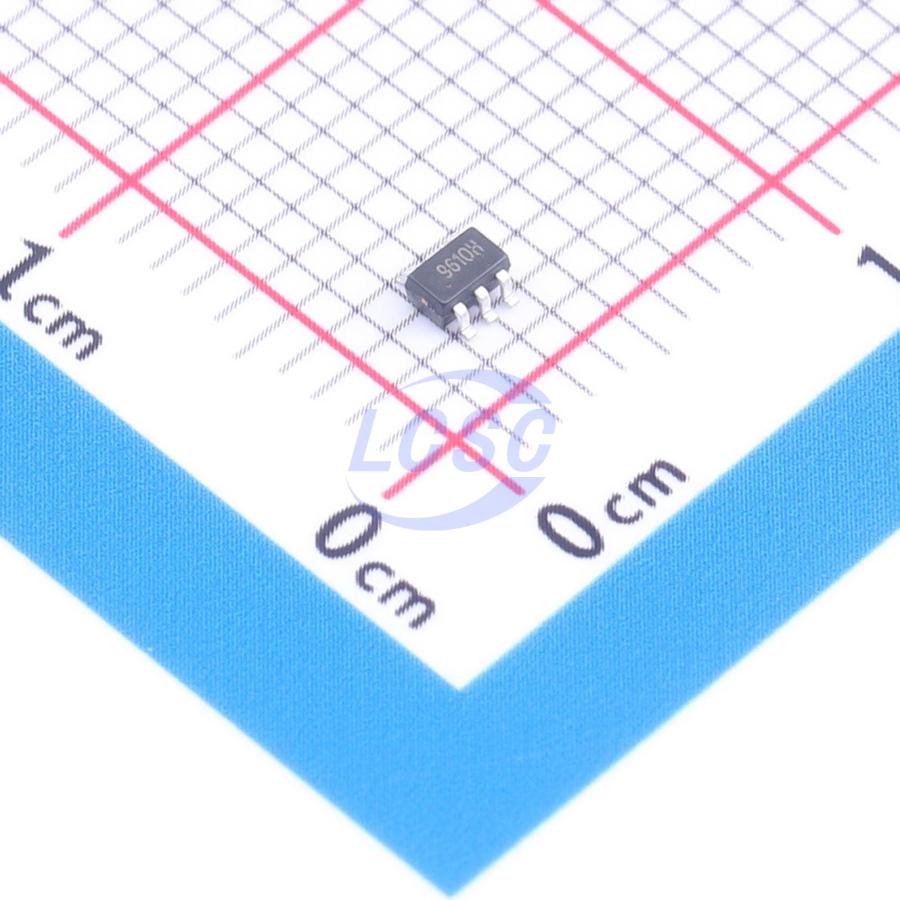

TP1961-CR

TP1961/TP1962/TP1964 are a series of low-power, ultra-high-speed comparators with internal hysteresis. The TP1961/962/964 series is optimized for single +3-V or +5-V operation. The input common-mode range extends 300 mV beyond the supply rails, and the output is capable of sinking or sourcing 4 mA within 80 mV of GND and VCC. Propagation delay is 7 ns (50 mV overdrive), with a supply current of 1 mA per comparator. Internal input hysteresis eliminates output switching caused by internal input noise voltage, reducing current consumption. The push-pull output supports rail-to-rail output swing and interfaces with CMOS/TTL logic. Output switching frequency up to 50 MHz (typical), while limiting supply current surges and dynamic power dissipation during switching. The TP1961 single comparator features a shutdown function and comes in a space-saving miniature SOT23 package, suitable for space-constrained designs. The TP1961/962/964 series operates over a temperature range of -40°C to +125°C. Typical application circuit: TP1961 comparator in an infrared receiver

Applications

• High-speed line or digital line receivers
• High-speed sampling circuits
• Peak and zero-crossing detectors
• Threshold detectors/discriminators
• Ground or power line sensing
• Logic level shifting or translation
• Window comparators
• Infrared receivers
• Clock and data signal recovery
• Telecommunications, portable communications

Key features

• Ultra-fast, 7 ns propagation delay
• Compatible with +3-V and +5-V single-supply applications
• Offset voltage: ±10.0 mV maximum
• Rail-to-rail input and output
• 7.5 mV internal hysteresis for clean switching
• Push-pull, CMOS/TTL-compatible output
• Input common-mode range extended by 300 mV
• No phase reversal with overdriven input
• Shutdown function (TP1961N only)
• Supply voltage: 2.5 V to 5.5 V
• Available in eco-friendly, space-saving SOT23-5 package
