TP1961-TR

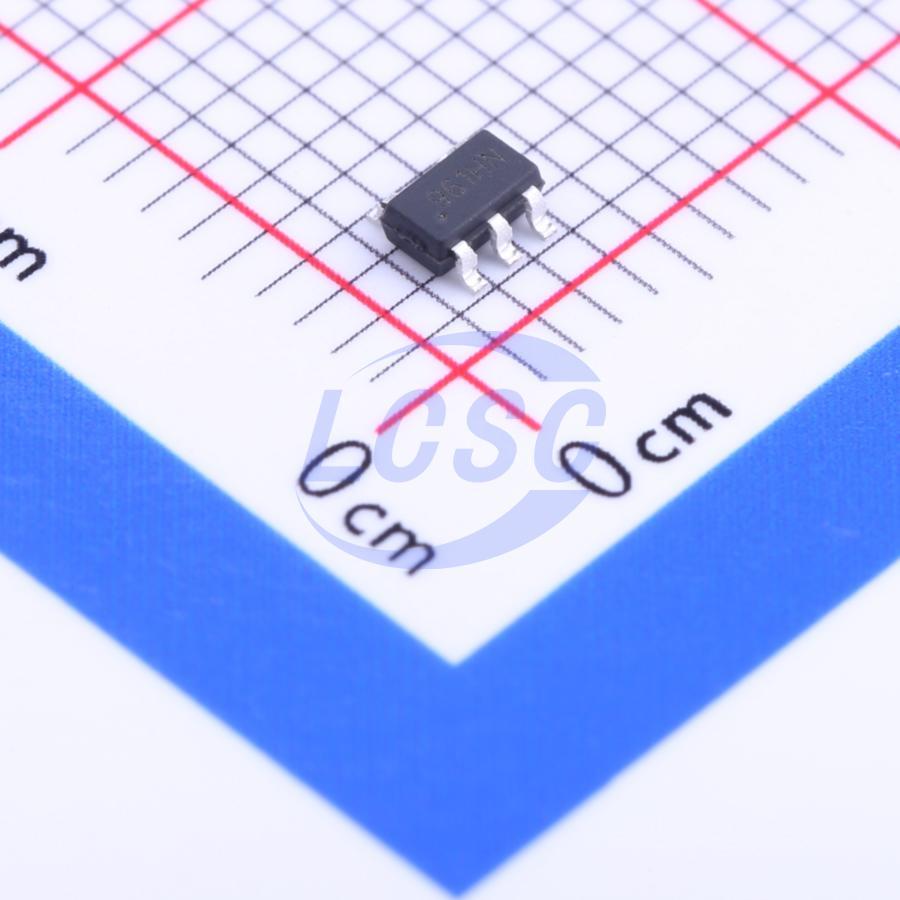

Rail-to-Rail Input, Rail-to-Rail Output 2mV 6pA 1 SOT-23-5 Linear Comparators
7ns, 1/2/4, Ultra-High-Speed, +3V/+5V, Beyond-the-Rails Comparators
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP1961-TR
- Store part #
- C124557
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,369 in stock
#C124557
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.10 | ₹63.10 |
| 10+ | ₹48.50 | ₹485.00 |
| 30+ | ₹42.18 | ₹1,265.40 |
| 100+ | ₹34.44 | ₹3,444.00 |
| 500+ | ₹31.01 | ₹15,505.00 |
| 1,000+ | ₹28.85 | ₹28,850.00 |
1 × ₹63.10
₹63.10
excl. GST
₹74.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP1961-TR
₹63.10 for 1 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 2.4mA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 12ns
- Operating Temperature
- -40℃~+125℃
- Features
- Enable/shutdown function;Built-in hysteresis;ESD protection
- Input Hysteresis Voltage (Vhys)
- 7.5mV
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 6pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 0.3uV/℃
- Input Offset Current(Ios)
- 4pA
- Single Supply
- 2.5V~5.5V
- Response Time (tr)
- 1ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.051 g
Overview
TP1961/TP1962/TP1964 are low-power, ultrahigh-speed comparators with internal hysteresis. These devices are optimized for single +3V or +5V operation. The input common-mode range extends 300 mV beyond the rail, and the outputs can sink or source 4 mA to within 80 mV of GND and VCC. Propagation delay is 7 ns (50 mV overdrive), while supply current is 1 mA per comparator. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The push-pull output supports rail-to-rail output swing, and interfaces with CMOS/TTL logic. The output toggle frequency can reach a typical of 50 MHz while limiting supply current surges and dynamic power consumption during switching. The TP1961 single comparators are available in shout-down function, and the tiny SOT23 package for space-conservative designs. All devices are specified for the temperature range of -40℃ to +125℃
Applications
- High-speed Line or Digital Line Receivers
- High Speed Sampling Circuits
- Peak and Zero-crossing Detectors
- Threshold Detectors/Discriminators
- Sensing at Ground or Supply Line
- Logic Level Shifting or Translation
- Window Comparators
- IR Receivers
- Clock and Data Signal Restoration
- Telecom, Portable Communications
Key features
- Ultra-Fast, 7ns Propagation Delay
- Ideal for +3V and +5V Single-Supply Applications
- Offset Voltage: ±10.0 mV Maximum
- Rail to Rail Input and Output
- 7.5 mV Internal Hysteresis for Clean Switching
- Push-Pull, CMOS/TTL Compatible Output
- Input Common-Mode Range Extends 300 mV
- No Phase Reversal for Overdriven Inputs
- Shut-down Function (TP1961N Only)
- Supply Voltage: 2.5V to 5.5V
- Green, Space-Saving SOT23-5 Package Available
