TECH PUBLICDatasheet (PDF)

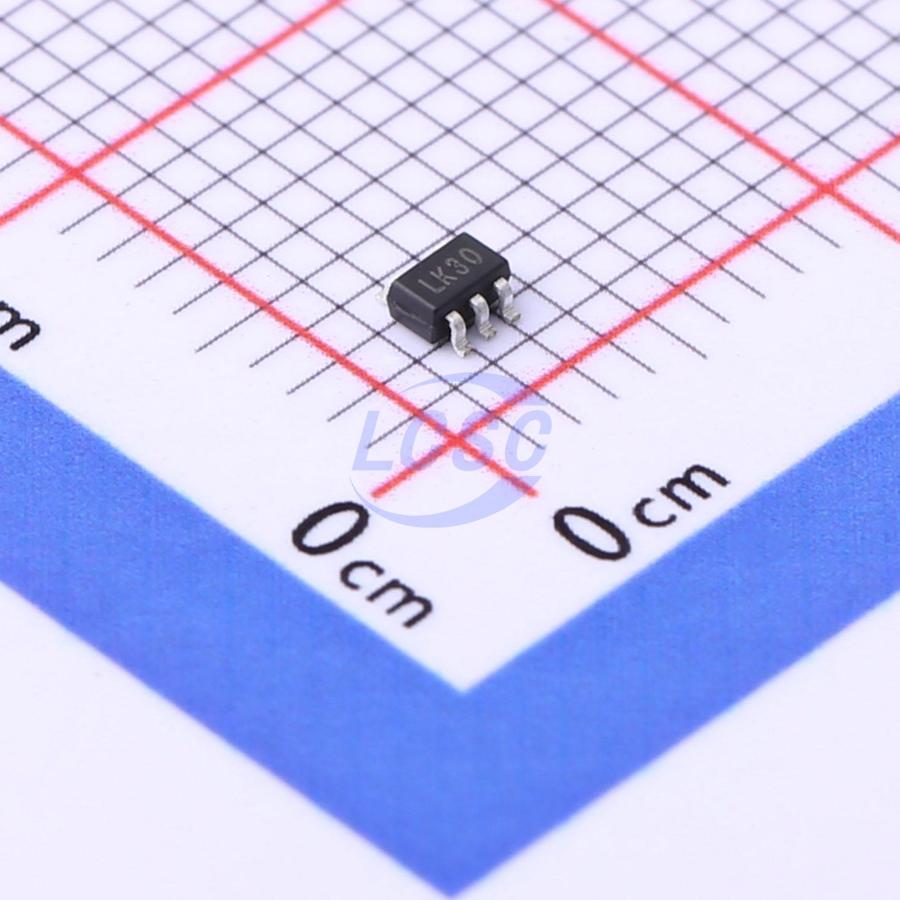

TP2019-3.0YC5
3V Positive Fixed SC-70-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SC-70-5RoHSActive
Low Power, Low Dropout, RF - Linear Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP2019-3.0YC5
- Store part #
- C2987054
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,600 in stock
#C2987054
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.79 | ₹73.95 |
| 50+ | ₹11.88 | ₹594.00 |
| 150+ | ₹10.41 | ₹1,561.50 |
| 500+ | ₹9.31 | ₹4,655.00 |
| 3,000+ | ₹7.59 | ₹22,770.00 |
| 6,000+ | ₹7.16 | ₹42,960.00 |
5 × ₹14.79
₹73.95
excl. GST
₹87.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP2019-3.0YC5
₹73.95 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 200uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Noise bypass terminal;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The TP2019 series low - power, low - noise, low - dropout, CMos linear voltage regulators operate from a 2.5V to 5.5V input voltage. They are the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The TP2019 series also offer ultra - low dropout voltage to prolong battery life in portable electronics. Systems requiring a quiet voltage sources, such as RF applications, will benefit from the TP2019 series ultra - low output noise (30uV_RMS) and high PSRR. An external noise bypass capacitor connected to the device's BP pin can further reduce the noise level.
Applications
- Cellular Telephones
- Cordless Telephones
- PCMCIA Cards
- Modems
- MP3 Player
- Hand - Held Instruments
- Portable/Battery - Powered Equipment
Key features
- The output voltage is preset to voltages in the range of 1.2V to 5.0V
- 10nA logic - controlled shutdown mode
- foldback current limit
- thermal shutdown protection
- Low Output Noise
- Low Dropout Voltage
- Thermal - Overload Protection
- Output Current Limit
- High PSRR (74dB at 1kHz)
- 10nA Logic - Controlled Shutdown
- Available in Multiple output Voltage Versions
- Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 2.85V, 3.0V and 3.3V
- Adjustable Output from 1.2V to 5.0V
- -40°C to 85°C Operating Temperature Range
- Available in Green SC70 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRT9193-30GU5#C2987055TECH PUBLIC · SC-70-5 | TECH PUBLIC | SC-70-5 | 2,175 | ₹18.07 · 2,175 in stock | View |
