TECH PUBLICDatasheet (PDF)

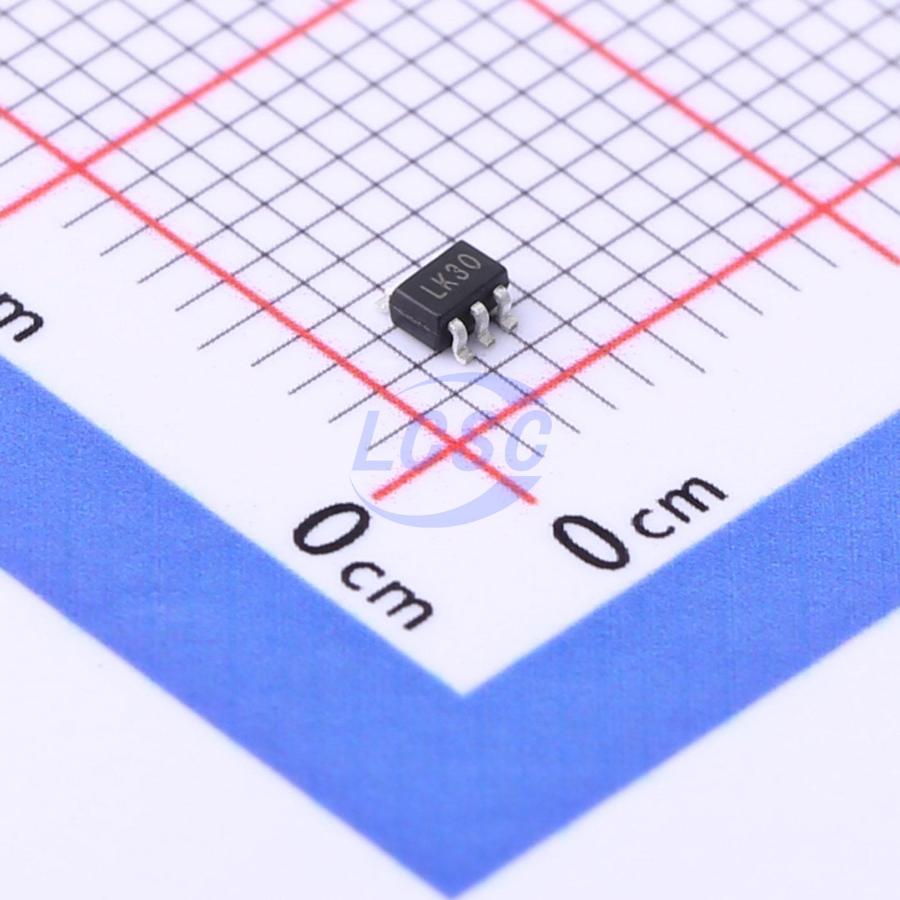

TPRT9193-30GU5
3V Positive Fixed SC-70-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SC-70-5RoHSActive
Low Power, Low Dropout, RF - Linear Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9193-30GU5
- Store part #
- C2987055
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,175 in stock
#C2987055
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.07 | ₹90.35 |
| 50+ | ₹14.42 | ₹721.00 |
| 150+ | ₹12.59 | ₹1,888.50 |
| 500+ | ₹11.22 | ₹5,610.00 |
| 3,000+ | ₹9.08 | ₹27,240.00 |
| 6,000+ | ₹8.53 | ₹51,180.00 |
5 × ₹18.07
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9193-30GU5
₹90.35 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 200uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Noise bypass terminal;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The TPRT9193 series low -power, low-noise, low-dropout, CMOs linear voltage regulators operate from a 2.5V to 5.5V input voltage. They are the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The TPRT9193 series also offer ultra-low dropout voltage to prolong battery life in portable electronics. Systems requiring a quiet voltage sources, such as RF applications, will benefit from the TPRT9193 series ultra-low output noise (300uV_RMS) and high PSRR. An external noise bypass capacitor connected to the device's BP pin can further reduce the noise level. The output voltage is preset to voltages in the range of 1.2V to 5.0V. Other features include a 10nA logic-controlled shutdown mode, foldback current limit and thermal shutdown protection. The TPRT9193 is available in Green SC70-5 packages. It operates over an ambient temperature range of -40°C to +85°C
Applications
- Cellular Telephones
- Cordless Telephones
- PCMCIA Cards
- Modems
- MP3 Player
- Hand-Held Instruments
- Portable/Battery-Powered Equipment
Key features
- Low Output Noise
- Low Dropout Voltage
- Thermal-Overload Protection
- Output Current Limit
- High PSRR(74dB at 1kHz)
- 10nA Logic-Controlled Shutdown
- Available in Multiple output Voltage Versions
- Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 2.85V, 3.0V and 3.3V
- Adjustable Output from 1.2V to 5.0V
- -40°C to 85°C Operating Temperature Range
- Available in Green SC70-5 Packages
