TECH PUBLICDatasheet (PDF)

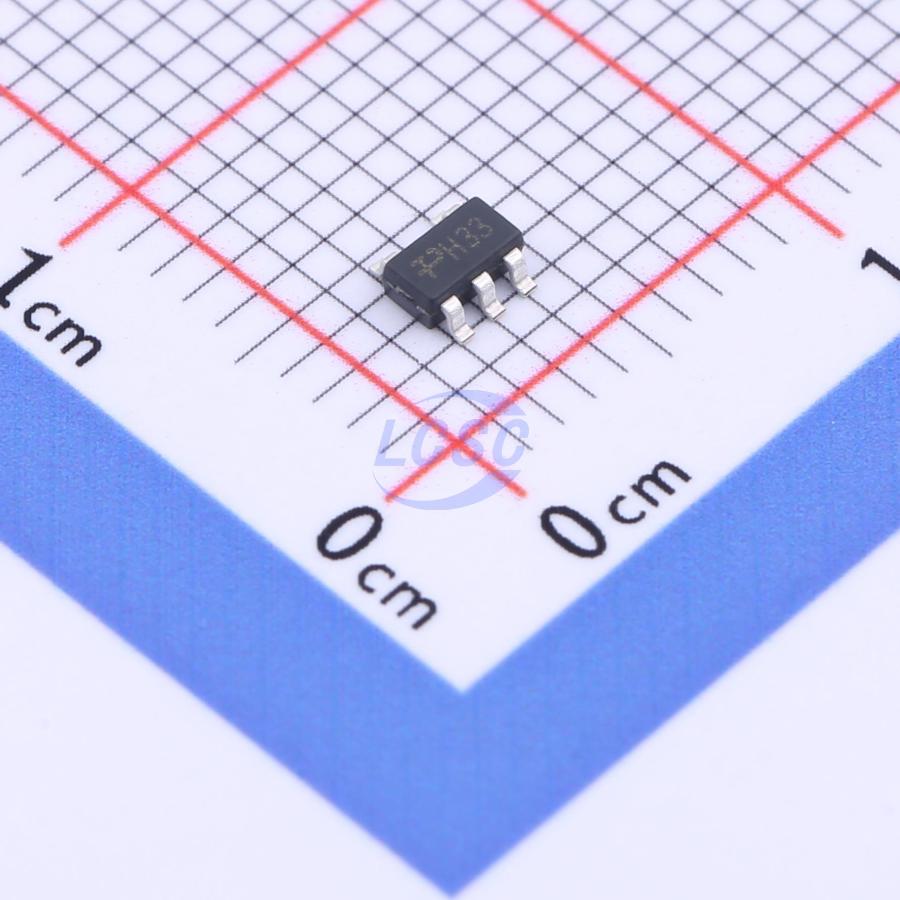

TP2202-3.3YN5G
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
36V,200mA,2uA,High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP2202-3.3YN5G
- Store part #
- C2987140
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,625 in stock
#C2987140
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.88 | ₹134.40 |
| 50+ | ₹23.93 | ₹1,196.50 |
| 150+ | ₹22.68 | ₹3,402.00 |
| 500+ | ₹21.10 | ₹10,550.00 |
| 3,000+ | ₹19.09 | ₹57,270.00 |
| 6,000+ | ₹18.67 | ₹1,12,020.00 |
5 × ₹26.88
₹134.40
excl. GST
₹158.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP2202-3.3YN5G
₹134.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The TP2202 is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging. The features of low quiescent current as low as 2μA and zero disable current is ideal for powering the battery equipment to a longer service life. The TP2202 is stable with the ceramic output capacitor over its wide input range from 2V to 36V and the entire range of output load current.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 200mA Output Current
- Wide Operating Input Voltage Range: 2V to 36V
- Dropout Voltage: 0.65V at 100mA (VOUT = 5V)
- Support Fixed Output Voltage 1.8V, 3.3V, 5V, 9V, 12V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT - 23 - 5 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS70933DBVR-TP#C2937032TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,840 | ₹25.00 · 1,840 in stock | View |
 | TPAP2204K-3.3TRG1#C2937033TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,225 | ₹27.90 · 5,225 in stock | View |
 | TPRT9069-33GB#C2937034TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,985 | ₹31.46 · 3,985 in stock | View |
 | TP362C33S5#C2937035TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,225 | ₹32.61 · 2,225 in stock | View |
 | TPMIC5233-3.3YM5#C2937037TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,860 | ₹49.67 · 4,860 in stock | View |
